GW Instek AFG-3081 | Function generator, 1-channel 80 MHz, 10Vpp, arbitrary, USB, RS232, GPIB

Name: AFG-3081 | Function generator, 1-channel 80 MHz, 10Vpp, arbitrary, USB, RS232, GPIB
Brand: GW Instek
SKU: AFG-3081
Price: 2700.0 EUR
Availability: InStock

Manufacturer number: AFG-3081

Delivery time upon request

€2,700.00

plus VAT. €3,213.00 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

GW Instek AFG3081 | Arbitrary generator with a frequency range from 1 µHz to 80 MHz with many callable waveforms.

Wide frequency range from 1 µHz to 80 MHz
Output voltage in 50 Ω: min: 10 mVpp, max: 10 Vpp
Integrated waveforms: sine, square, triangle, ramp, pulse
Frequency resolution: 1 µHz and frequency stability: ± 1ppm @ 0 ° C to 50 ° C
Modulation types: AM, FM, PWM, FSK, sweep, burst
Readout rate of the signal points: 200 MSa / s
Amplitude resolution: 16 bits
Start of signal output from each area of the 1 MP point memory.
Switchable output impedance: from high impedance to 50Ω
LCD display with a screen diagonal of approx. 11 cm (4.3 inches) and 480 x 272px resolution
Help function directly on the display
4 ways to generate arbitrary functions: via front panel, reading a CSV file, direct waveform reconstruction (DWR), waveform generation via PC software
Interfaces; USB, RS232, GPIB
Dimensions: W 265 x H 107 x D 374 mm
Weight 4 kg
2 year guarantee

Documents & Downloads

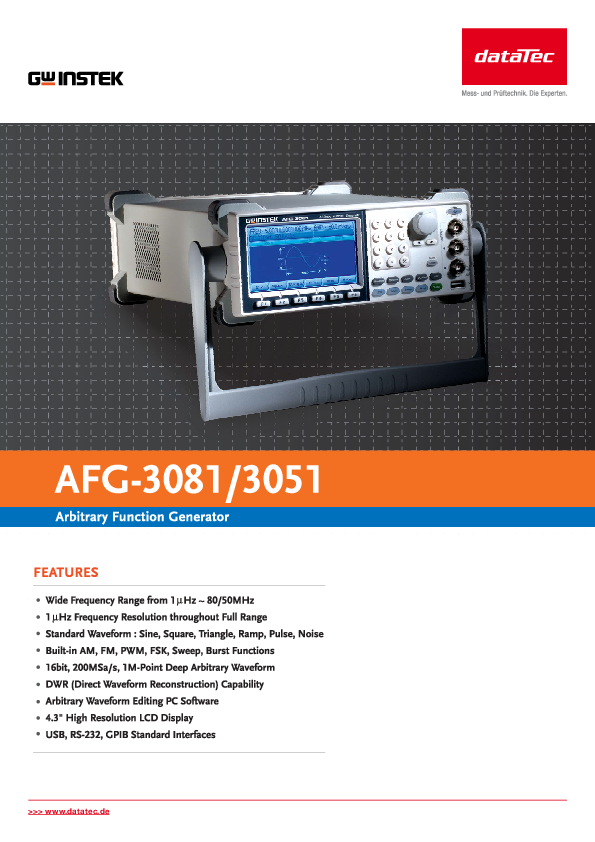

Datasheet

pdf | 4.16 MB

Description

AFG-3081 | Function generator, 1-channel 80 MHz, 10Vpp, arbitrary, USB, RS232, GPIB

The AFG3000 arbitrary generator series from GW Instek is designed for the development and research area as well as for the training area as well as for industrial use in production or service.

This series offers a high signal resolution of 16 bits with a signal read rate of 200 MSa / s from a 1 M-point memory. The editing of application-specific curve shapes takes place via an easy-to-use, intuitive user interface.

The “Direct Waveform Reconstruction” (DWR / Direct Waveform Reconstruction) enables users to transfer waveforms recorded by a GW in-house oscilloscope of the GDS-2000 series via the USB interface directly into the arbitrary generators of the AFG-3000 series. The signals can still be edited to increase the measurement effectiveness.

The output impedance of the generators can be switched between 50 Ω and high-impedance. All current signal parameters and the output signal form are shown on the integrated high-resolution TFT-LCD display. The USB, RS232 and GPIB interfaces allow the user to change the signal forms, by using PC software or by using IEEE488.2 commands. An integrated help function makes handling the device easier.
