Graphtec GL260-EU-WLAN-KIT | Data logger, 10-channel with B-568 WLAN adapter, B-569 battery and TK-midi-6 case

Manufacturer number: GL260-EU-WLAN-KIT

GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
GL260-EU-WLAN-KIT
Ready to ship in 5 to 10 business days

€1,820.00

plus VAT. €2,165.80 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Graphtec GL260-EU-WLAN-KIT | data logger, 10 channel, bundle including B-568 WLAN adapter, B-569 battery and TK-midi-6 case.

  • Display: 4.3" TFT color LCD
  • Analog inputs: 10 isolated multifunction inputs (screwable)
  • Voltage measuring range: ±20 mV to ±100 V
  • Connectable thermocouples: Type K, J, E, T, R, S, B, N, W
  • Logic or pulse: 4 channels
  • Alarm outputs: 4 channels
  • Sampling interval: 10 ms to 1 hour
  • Display time scale: 1 second to 24 hours
  • Interfaces: High-speed USB, WLAN included in this bundle (option B-568)
  • Memory: Integrated 8 GB flash memory, SD card slot up to 32 GB
  • Battery operation: included in this bundle B-569
  • Dimensions (H x W x D): 42 mm x 188 mm x 117 mm
  • Weight: 500 g

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.64 MB
Userguide
pdf | 8.35 MB
Start guide
pdf | 3.18 MB

Description

GL260-EU-WLAN-KIT | Data logger, 10-channel with B-568 WLAN adapter, B-569 battery and TK-midi-6 case

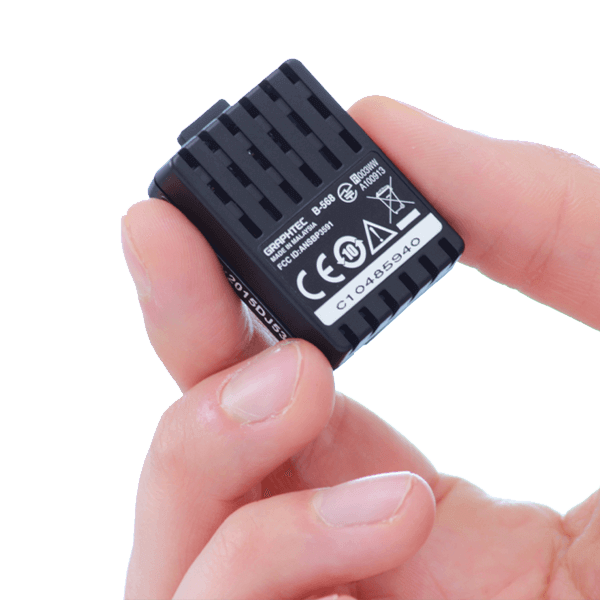

This data logger package consists of the GL-260 multi-channel data logger, the B-568 plug-in WLAN adapter, the B-569 rechargeable battery for mobile data logging and the robust, custom-fit TK-Midi-6 transport case.

The Graphtec GL260 is a compact, standalone data logger with 10 isolated channels that offers a variety of advanced functions and features that make it a powerful tool for data acquisition. It is particularly useful for applications where precision, durability and flexibility are required.

Mechanically or functionally, there are no fundamental changes compared to the GL240 - so anyone who is used to working with the previous model will be able to cope with the successor model GL260 straight away. The previous Graphtec accessories for the loggers can also be used with the new model without any problems. Compared to its predecessor, however, the GL260 impresses with improvements and new functions that make it even more attractive for professional users.

One of the most striking features of the GL260 is its alarm history function. This feature makes it possible to easily track down abnormal events by recording the dates and times of such events. This is particularly useful for troubleshooting and monitoring critical processes.

Another significant upgrade is the enhanced channel-to-channel calculation function. Equipped with new calculation functions, the GL260 allows a more detailed and precise analysis of the recorded data. This is a significant improvement over the GL240, which only offers basic calculation functions.

The GL260 is also equipped with a memory loop function, which allows data to be recorded continuously over longer periods of time. This is particularly beneficial in long-term monitoring applications where data loss should be minimized.

Another significant advance is the introduction of the G-REMOTE service, which enables remote control and data storage via a cloud server. This feature significantly expands the GL260's capabilities, as users are now able to monitor and control the device remotely and store data securely in the cloud.

In terms of technical specifications, the GL260 offers a maximum sampling rate of up to 10 ms and has an internal memory of 8 GB, ensuring reliable long-term measurement.
