Gossen Metrawatt Z207M | Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

Manufacturer number: Z207M

Z207M
Ready to ship in 5 to 10 business days

€621.00

plus VAT. €738.99 VAT plus shipping costs

or choose one of the following options:
Request a quote Product inquiries
Highlights Description Related Articles

Gossen Metrawatt Z207M | METRAFLEX 300M Flexible current sensor 3/30/300 A, 1000-10mV / A, loop length 160mm with 4 mm safety plug for multimeter.

  • Wide range of applications, 3 measuring ranges 3/30/300 A AC and high bandwidth 20 Hz ... 100 kHz (± 1dB / 50 Hz) for harmonic analysis
  • Output sensitivity: 1000 mV / A, 100 mV / A, 10 mV / A
  • Accurate measurement even at low currents, thanks to the large dynamic range and high sensor sensitivity
  • Low position influence of the conductor and minimal external field influence
  • Easy to use in confined spaces thanks to the small sensor cross-section of 6 mm
  • Safe handling even with protective gloves, opening the sensor and measuring range setting in one-hand operation
  • Current sensor with protection class IP50, measuring amplifier with IP40
  • High level of safety for the user, measurement category 1000V @CAT III, 600V @CAT IV and unlimited overload capacity, designed for continuous operation
  • Output connection: 1 pair of 4 mm safety plugs for connection to a Metrahit multimeter

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

Z207M | Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

With the micro-Rogowski current sensor, you can measure safely, precisely and flexibly in connection with your multimeter, both on busbars and in power distribution.

The coil is particularly suitable for difficult to access and tight spaces. The current sensor can be operated by an external power supply for long-term measurements.

Accessoires (22 products)

METRAHIT ISO
Gossen Metrawatt
METRAHIT ISO
Multimeter, TRMS, 3 ¾, IP54, integr. Insulation measurement (M246B)
2 in stock. Ready to ship in 1 business day
€1,008.00

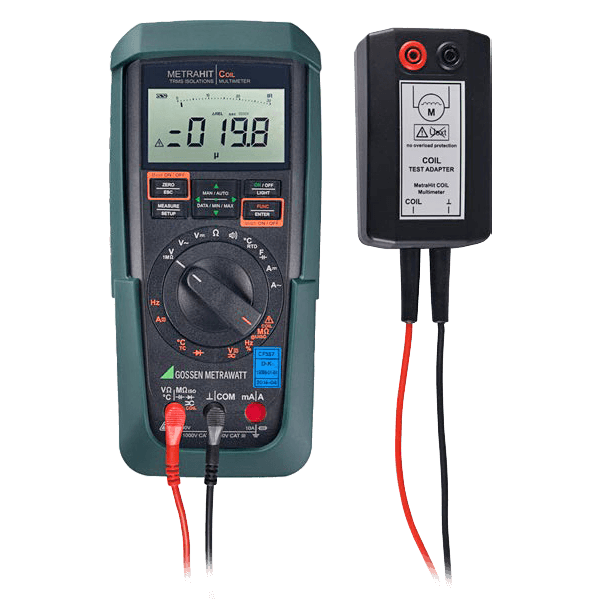

METRAHITE COIL
