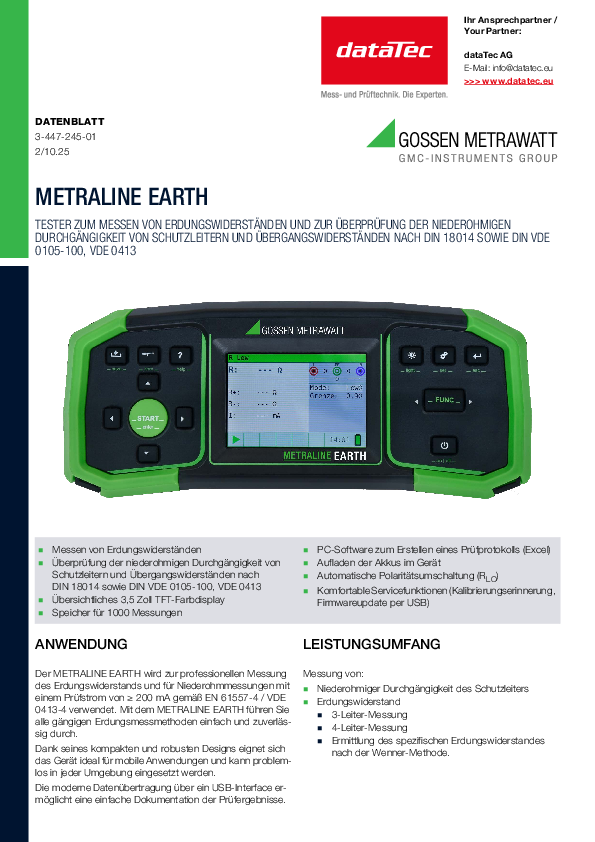

The Metraline Earth M590R is your reliable partner for precise earthing measurements and low-resistance measurements with a test current of ≥ 200 mA in accordance with EN 61557-4 / VDE 0413-4. With this device, you can carry out all common earthing measurement methods effortlessly and reliably. Particularly noteworthy is the professional earthing analysis according to Wenner and the precise measurement method for checking earthing and lightning protection systems using 3- and 4-wire circuits. Its compact design enables use in various environments and is ideal for mobile applications.
The M590R has a graphic color display for a clear display of the measurement results. The simple menu navigation ensures intuitive operation. With the USB interface, you can easily update the device and conveniently document the test results. Thanks to its robust construction and certifications according to IP40 and CAT III 600 V / CAT IV 300 V, the M590R offers maximum safety for electrical engineers in every situation.
Technical features:
- 3-wire / 4-wire measurement
- Earth resistance according to Wenner
- Low-ohm measurement with 200 mA
- Data management with storage of 1000 measured values
- Software for logging
- USB interface, IP40, CAT III 600 V / CAT IV 300 V
