Gossen Metrawatt PROFITEST Prime Master Package | Machine tester including case, trolley, probe & measuring clamp (M516L)

Manufacturer number: M516L

Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
Gossen Metrawatt PROFITEST Prime Master Package
1 in stock. Ready to ship in 1 business day

€5,885.00

plus VAT. €7,003.15 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M516L | Profitest Prime test equipment set (master package: case, trolley, I-SK4 probe, pliers, software) for standard-compliant initial and repeat tests of electrical safety. ALL-IN-ONE VDE test device for machines, industrial plants, switchgear, wind turbines and much more.

  • Voltage measurement up to 1000 V AC/DC
  • Low-resistance measurement for protective and equipotential bonding conductors with 200 mA and automatic polarity reversal and 25 A
  • Insulation measurement up to 1000 V with rising ramp
  • Measurement of the internal network and fault loop impedance with high test current up to 690 V AC / 800 V DC, without tripping the RCD type A and type B
  • Testing of tripping current and time of RCD types A, AC, F, B, B+, EV, MI, G/R, SRCDs, PRCDs
  • Combined RCD test with continuously rising ramp, tripping time, tripping current
  • Testing of RCMs and IMDs
  • Measure of leakage and differential currents with the PROFICLIP current clamp
  • Measuring temperature and humidity with a sensor
  • Easy to use thanks to rotary switches
  • Predefined test sequences for structured testing
  • Coded plugs ensure error-free testing
  • Help function with connection diagrams
  • Mains and battery operation (with limited functionality)
  • Creation of individual test sequences
  • PUSH-PRINT function - sending the measured value via Bluetooth / USB after the measurement has been completed
  • Bluetooth and USB interface
  • Windows-based user software with database functionality
  • Cascadable, future-proof software concept
  • Modern data management through customer and measurement data management
  • Creation of system structures from the System up to the measuring points
  • Quick and easy to legally compliant protocol in accordance with ZVEH
  • Measurement category 600 V CAT III / 300 V CAT IV
  • Incl. DAkkS calibration certificate
  • Multiple display via dot matrix b/w 128 x 128 pixels, illuminated
  • Protection class of device connections: IP 40
  • Protection class of case closed: IP 65 according to DIN EN 60529/VDE 0470-1
  • Dimensions: W 50 x D 41 x H 21 cm
  • Master package with case, trolley, probe I-SK4, pliers, software

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.04 MB
Userguide
pdf | 2.40 MB

Description

PROFITEST Prime Master Package | Machine tester including case, trolley, probe & measuring clamp (M516L)

Note: Now including IZYTRONIQ BUSINESS Advanced software

The Profitest Prime is an all-in-one testing device in AC and DC networks for electrical systems, machines, switchgear/industrial systems, wind turbines, power generators and e-mobility.

Thanks to the wide range of applications and the versatile testing options, the investment costs for the required testing technology are considerably reduced. All required measuring tasks in electrical machines and systems can be carried out without the need for time-consuming replugging of the measuring cables. This saves a maximum amount of time.

The intuitive operating concept from the Profitest Master series has been adopted for the Profitest Prime and offers users of our previous testing devices quick and familiar handling. The uniform operating concept ensures compatibility with the Profitest series.

Extensive data management from the creation of the system structure to logging ensures consistent and sustainable management of customer data and measured values.

IMPLEMENTATION OF LAWS, REGULATIONS AND STANDARDS MADE EASY.
Testing the effectiveness of protective measures in electrical systems is necessary in many areas and is required by authorities, operators and insurance companies due to laws and regulations.

Standard-compliant and safe - the Profitest Prime series carries out all measuring tasks in a standard-compliant and safe manner and enables people / electricians qualified to carry out tests safely and quickly in accordance with a wide variety of application and product standards, such as:

  • DIN VDE 0100-600 / IEC 60364-6
  • DIN VDE 0105-100 / EN 50110-1
  • VDE 0113-1 / DIN EN 60204-1
  • VDE 0660-600-1 / DIN EN 61439-1
  • VDE 0126-23 / DIN EN 62446
  • VDE 0122-1 / DIN EN 61851-1

A wide-range measuring device enables the test device to be used for all alternating current and three-phase networks with voltages from 65 to 690 V and frequencies from 15.4 to 420 Hz as well as direct current networks from 65 to 800 V

Lieferumfang

  • 1x Profitest Prime / M516A
  • 1x trolley for case system PRIME / Z506F
  • 1x I-SK4 test probe / Z516T
  • 1x PRIME case / Z506A
  • 1x PROFITEST CLIP / Z506H
  • 1x IZYTRONIQ Business Advanced / S102S

Accessoires (29 products )

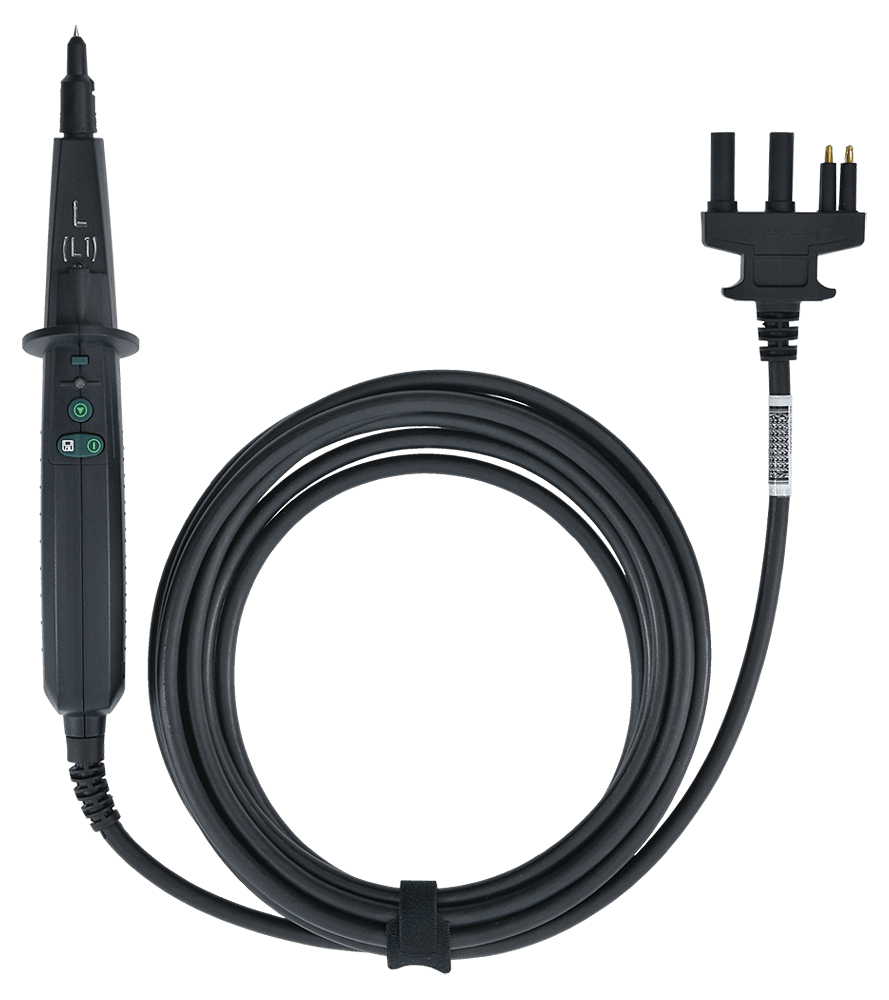

Gossen Metrawatt Z516T
