Gossen Metrawatt M272S | METRAHITE IN TECH BT

Name: M272S | METRAHITE IN TECH BT
Brand: Gossen Metrawatt
SKU: M272S
Price: 2113.0 EUR
Availability: OutOfStock

Manufacturer number: M272S

Ready to ship in 5 to 10 business days

€2,113.00

plus VAT. €2,514.47 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M272S | METRAHITE IN TECH BT

Graphic display
Bluetooth
IZYTRONIQ Business Starter Software
mΩ @ 200 mA 4-wire
mΩ @ 1 A 4-wire

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M272S
Backlight:	Yes
Basic precision:	0,15 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	300µA - 1A / 300µA - 1A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	235 x 105 x 56
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	31000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	300 Hz - 300 kHz
Interfaces:	Bluetooth, WiFi Optional: USB
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit IM TECH BT
Number of positions:	4.75
Resistance measuring range:	3 mΩ - 30 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 1000 V / 300 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.7

Description

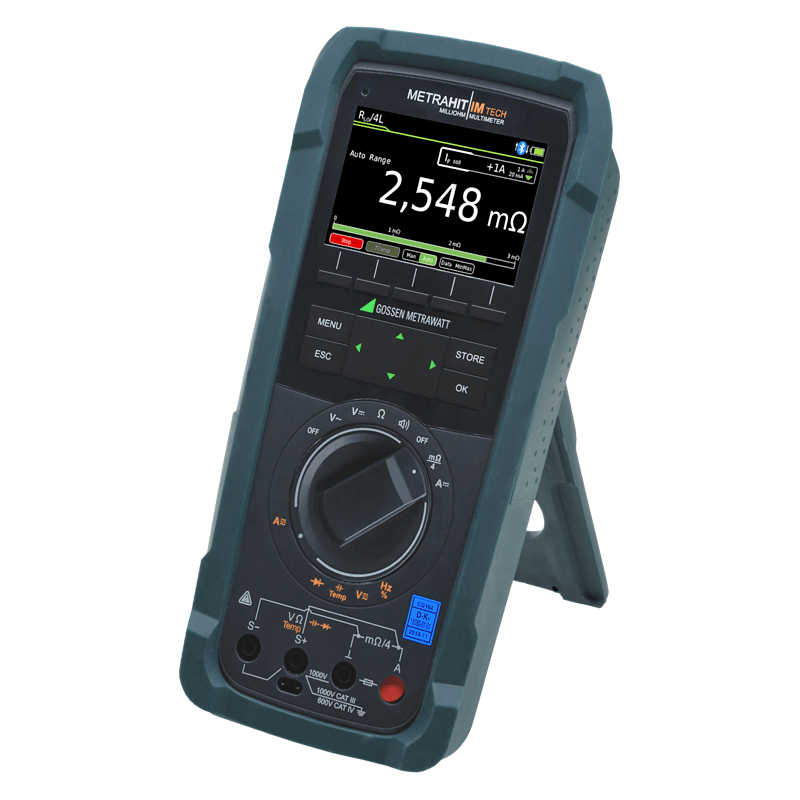

M272S | METRAHITE IN TECH BT

Multimeter & milliohmmeter with graphic display, Bluetooth and IZYTRONIQ Business Starter software.

Lieferumfang

Digital multimeter (M272B)
Cable set
1 pair of Kelvin clamps
Hard case
LiPo battery
USB plug-in power supply
Calibration certificate
Software license

Accessoires (5 products )

Keysight U1241B

Multimeter, TRMS, 4 digits, ACV / DCV, type K

3 in stock. Ready to ship in 1 business day

€388.00

Keysight U1253B

Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator

Delivery time upon request

€868.00

Keysight U1231A

Multimeter, TRMS, 4 digits, IP42

Delivery time upon request

€229.00

Gossen Metrawatt Z270G

Lithium polymer battery for Metrahit IM multimeter, 14.8 Wh

Ready to ship in 5 to 10 business days

€175.00

Gossen Metrawatt Z270M

Coil Adapter XTRA for short-circuit detection for inductances from 10 µH to approx. 5 H

Ready to ship in 5 to 10 business days

€347.00

About the Manufacturer

Gossen Metrawatt

Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.
