Gossen Metrawatt M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Name: M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case
Brand: Gossen Metrawatt
SKU: M252A
Price: 777.0 EUR
Availability: OutOfStock

Manufacturer number: M252A

Ready to ship in 5 to 10 business days

€777.00

plus VAT. €924.63 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M252A | 4 6/7-digit special multimeter METRAHIT EU Pro (formerly ESPECIAL) with 21 multimeter functions.

Resolution ± 60,000 digits, 4 6/7 digits
System connection through infrared interface
PC communication capable with METRAwin10
3 sockets with automatic socket lock ABS (patented)
TRMS AC and AC / DC function
Voltage measurement with a basic accuracy of ± 0.05% (VDC)
Automatic and manual measuring range selection
Automatic storage of measured values
21 mutimeter functions
Infrared interface for data exchange and parameterization to the PC (optional: IR-USB adapter and METRAwin10 software)
TRMS voltage measurement AC and AC + DC, bandwidth up to 20 kHz
TRMS current measurement AC and AC + DC, bandwidth up to 5 kHz
dB measurement function
Adjustable clip factor for measurement with current clamp sensors or current clamp transformers
Large, light blue illuminated display with extra large digits (15 mm) and analog bargraph for dynamic processes
separate battery and fuse compartment
Protection against dust and water according to protection class IP 52
Measurement category 1000V CAT III and 600V CAT IV
Made in Germany
DAkkS calibration certificate included
Warranty 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M252A
Backlight:	Yes
Basic precision:	0,05 %
Capacity measuring range:	No
Current measuring range AC/DC:	6A - 10A / 6A - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	60000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	No
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit ESPECIAL
Number of positions:	4.85
Resistance measuring range:	600 Ω - 60 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	600 mV - 1000 V / 600 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Description

M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

The special multimeter is ideally suited for connection to current transformers in order to prevent any danger from the interruption of these circuits during operation - system-compatible with IR interface, ± 60,000 digits resolution - 21 multimeter functions.

Lieferumfang

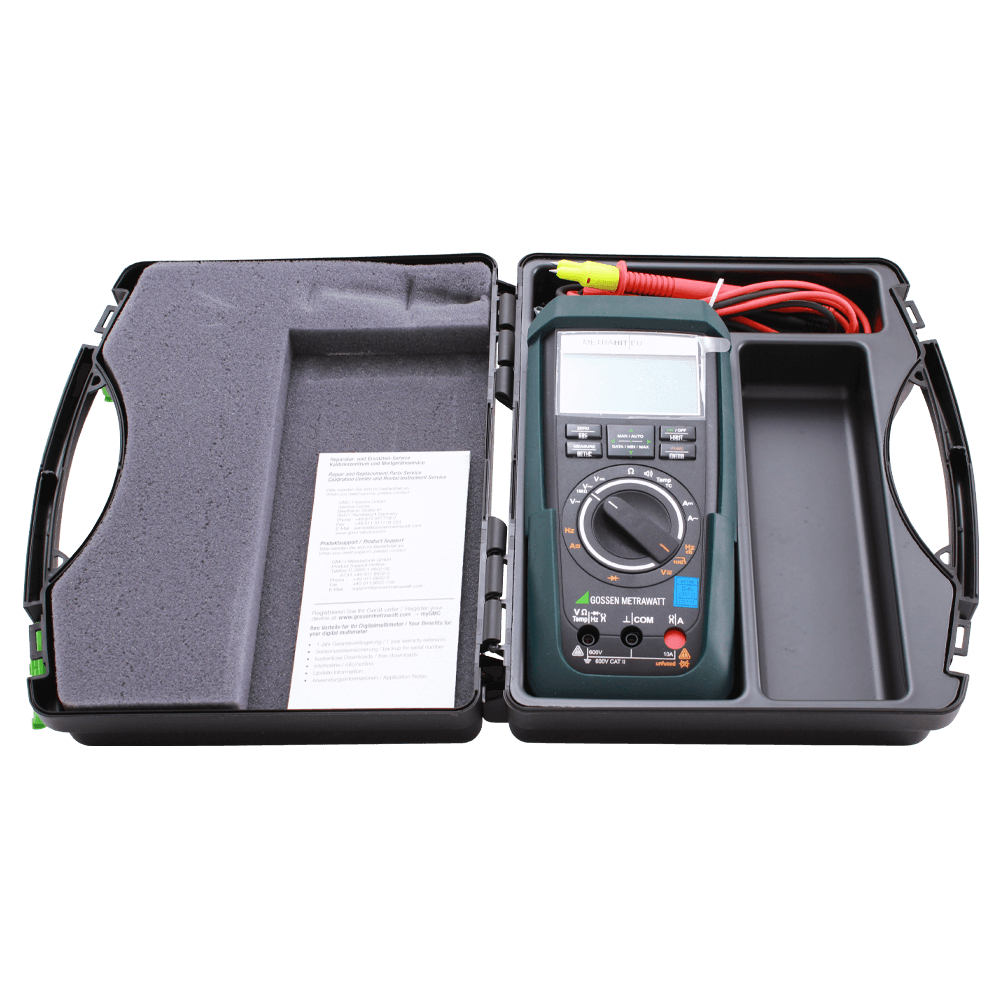

Multimeter set with HC20 hard case
Measuring cable set KS17-2
Protective rubber cover
Two 1.5 V AA batteries
Brief operating instructions
CD-ROM with operating instructions (D & GB)
DAkkS (DKD) calibration certificate

Accessoires (24 products )

FLUKE 80K-40

Probe, high voltage 1000X, 60Hz, 40kV for multimeters

2 in stock. Ready to ship in 1 business day

€385.12 €464.00

FLUKE 80K-6

Probe, high voltage 1000X, 1KHz, 6kV for multimeter

Delivery time upon request

€214.97 €259.00

Gossen Metrawatt GTZ3240000R0001

Metrawin 10 / Metrahit software for multimeters (Z3240)

Ready to ship in 5 to 10 business days

€229.00

Gossen Metrawatt Z117A

HIT CLIP, for Metrahit magnetic holder, Velcro fastening

Ready to ship in 5 to 10 business days

€64.00

Gossen Metrawatt Z202B

CP330 Current Clamp, 4 mm, 300 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

€510.00

Gossen Metrawatt Z208B

WZ11B current probe, 4 mm, 200 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

€308.00

Gossen Metrawatt Z203B

CP1100 Current Clamp, 4 mm, 1000A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

€465.00

Gossen Metrawatt Z216C

USBXTRA interface adapter IR / USB for Metrahit X-TRA

1 in stock. Ready to ship in 1 business day

€285.00

Gossen Metrawatt Z219B

WZ12B current probe, 4 mm, 100 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

€224.00

Gossen Metrawatt Z219C

WZ12C current probe, 4 mm, 150 A 48 Hz - 400 Hz, U-Out

Ready to ship in 5 to 10 business days

€280.00

Gossen Metrawatt Z104C

GH X-TRA protective cover, rubber for MetrahitBase / Pro / XTra / Tech

1 in stock. Ready to ship in 1 business day

€52.00

Gossen Metrawatt GTZ3409000R0001

Z3409 temperature sensor -40 .. + 600 ° C, Pt100

Ready to ship in 5 to 10 business days

€165.00

Chauvin Arnoux P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

€64.00

Keysight U1168B

Test lead set expanded with tips and clamps

2 in stock. Ready to ship in 1 business day

€161.00

Gossen Metrawatt Z113A

HC20 hard case 275 x 229 x 83 mm

Ready to ship in 5 to 10 business days

€74.00

Gossen Metrawatt Z201B

CP30 current probe, 4 mm, 30 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

€599.00

Keysight 34133A

Test lead set for table multimeter spring-loaded fine measuring tip, 1 x rt, 1 x black

2 in stock. Ready to ship in 1 business day

€90.64

Gossen Metrawatt Z225A

Z3512A current probe, 4 mm, 1000A 10 Hz - 3 kHz, U-Out

1 in stock. Ready to ship in 1 business day

€739.00

Gossen Metrawatt Z207E

Metraflex 3000 current clamp 30/300/3000 A, 100/10/1 mV / A

Ready to ship in 5 to 10 business days

€699.00

Gossen Metrawatt Z113B

HC30 hard case 394 x 294 x 106 mm

Ready to ship in 5 to 10 business days

€117.00

Gossen Metrawatt Z207M

Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

Ready to ship in 5 to 10 business days

€621.00

Gossen Metrawatt Z102A

TF220 temperature sensor PT1000 -50 to + 220 ° C, wire sensor

Ready to ship in 5 to 10 business days

€89.00

Gossen Metrawatt Z110J

KY95-3 crocodile clip (1 pair rt + sw) for KS17-2 1000V / CAT III 16A

2 in stock. Ready to ship in 1 business day

€49.00

Gossen Metrawatt Z115B

Soft belt pouch large for a METRAHIT or METRAPort-Multi

Ready to ship in 5 to 10 business days

€89.00

Alternate products (32 products )

Gossen Metrawatt MetraHit 2+

Multimeter, TRMS, 3 6/7, IP40 (M205A)

Ready to ship in 5 to 10 business days

€274.00

Keysight U1252B

Multimeter, TRMS, 4½, ACV / DCV, integr. Rectangle generator

Delivery time upon request

€788.00

Gossen Metrawatt M243A

Metrahit TECH multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

4 in stock. Ready to ship in 1 business day

€572.00

Gossen Metrawatt M242A

Metrahit PRO multimeter, hand 4 ½ digits, 12,000 digits, DAkks

Ready to ship in 5 to 10 business days

€492.00

Keysight U1241B

Multimeter, TRMS, 4 digits, ACV / DCV, type K

3 in stock. Ready to ship in 1 business day

€388.00

Gossen Metrawatt M252A

Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Ready to ship in 5 to 10 business days

€777.00

Benning 044028

MM2 multimeter, hand CAT III 600V 3 1/2 digits, RMS

Ready to ship in 5 to 10 business days

€138.50

Gossen Metrawatt M234D

Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€870.00

Gossen Metrawatt METRAHITE OUTDOOR

Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

Ready to ship in 5 to 10 business days

€798.00

Gossen Metrawatt M241A

Metrahit BASE multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

Ready to ship in 5 to 10 business days

€419.00

Keysight U1251B

Multimeter, TRMS, 4½, incl. Ni-MH battery

Delivery time upon request

€737.00

Gossen Metrawatt M206A

Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€415.00

Gossen Metrawatt METRAHIT PM XTRA (formerly EXTRA)

Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

Ready to ship in 5 to 10 business days

€924.00

Gossen Metrawatt M240A

Metrahit X-TRA multimeter, hand 4 ½ digits, 12,000 digits, IR interface, DAkkS

2 in stock. Ready to ship in 1 business day

€699.00

Keysight U1253B

Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator

Delivery time upon request

€868.00

Keysight U1242B

Multimeter, TRMS, 4 digits, ACV / DCV, type K / J, data logging

5 in stock. Ready to ship in 1 business day

€427.00

Gossen Metrawatt METRAHITE PM TECH

Multimeter, TRMS, 4 6/7, ± 0.05% VDC (M253A)

Ready to ship in 5 to 10 business days

€809.00

Gossen Metrawatt M242E

Metrahit PRO + GH multimeter 4 1/2 digits, with rubber cover

Ready to ship in 5 to 10 business days

€530.00

Gossen Metrawatt M243E

MetraHit TECH multimeter, hand 4 ½ digits, without interface

1 in stock. Ready to ship in 1 business day

€610.00

FLUKE 87V-MAX / E2-KIT

Combokit Fluke 87V MAX E2 for industrial electricians

2 in stock. Ready to ship in 1 business day

On Request

FLUKE 87V-MAX

True RMS digital multimeter

Delivery time upon request

€647.40 €780.00

FLUKE 87V

Multimeter, hand 4.5 digits, TRMS, temperature sensor 80BK

4 in stock. Ready to ship in 1 business day

€581.83 €701.00

FLUKE 179

Multimeter, hand 3 3/4 digits, 0.09% basic accuracy, temperature

37 in stock. Ready to ship in 1 business day

On Request

FLUKE 115

Multimeter, handheld, TRMS 4 digits, CAT III / 600 V

8 in stock. Ready to ship in 1 business day

On Request

FLUKE 113

Multimeter, hand 3 3/4 digits

6 in stock. Ready to ship in 1 business day

On Request

FLUKE 116

Multimeter, hand 4 digits, enter. thermometer

Delivery time upon request

On Request

FLUKE 117

Multimeter, hand 4 digits, volt sensor

Delivery time upon request

On Request

FLUKE 114

Multimeter, hand 4 digits

Delivery time upon request

On Request

FLUKE 175

Multimeter, hand 3 3/4 digits

Reordered - in stock. Delivery time on request

On Request

FLUKE FLUKE-287 / EUR

287 Truly effective handheld multimeter, 4 1/2 digits, logging function, USB

1 in stock. Ready to ship in 1 business day

€786.01 €947.00

FLUKE FLUKE-289 / EUR

289 Really effective multimeter, handheld 4 1/2 digits, logging function, USB

14 in stock. Ready to ship in 1 business day

€854.90 €1,030.00

FLUKE 177

Multimeter, handheld, 3 3/4 digits, 6000 digits, 1000V, CAT III 1000V

1 in stock. Ready to ship in 1 business day

On Request

Recommendations (6 products )

Gossen Metrawatt M311D

Metraclip 61 current clamp AC, 300A, 3 digits

Ready to ship in 5 to 10 business days

€495.00

Gossen Metrawatt GTY3620034P0002

KS 17-2 test lead set

1 in stock. Ready to ship in 1 business day

€43.00

Gossen Metrawatt Z216C

USBXTRA interface adapter IR / USB for Metrahit X-TRA

1 in stock. Ready to ship in 1 business day

€285.00

Gossen Metrawatt Z216D

USB X-TRA set USB X-TRA and software METRAwin 10

1 in stock. Ready to ship in 1 business day

€396.00

Gossen Metrawatt GTZ3240000R0001

Metrawin 10 / Metrahit software for multimeters (Z3240)

Ready to ship in 5 to 10 business days

€229.00

FLUKE 771

Current clamp, measuring mA process

1 in stock. Ready to ship in 1 business day

€742.85 €895.00

About the Manufacturer

Gossen Metrawatt

Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.

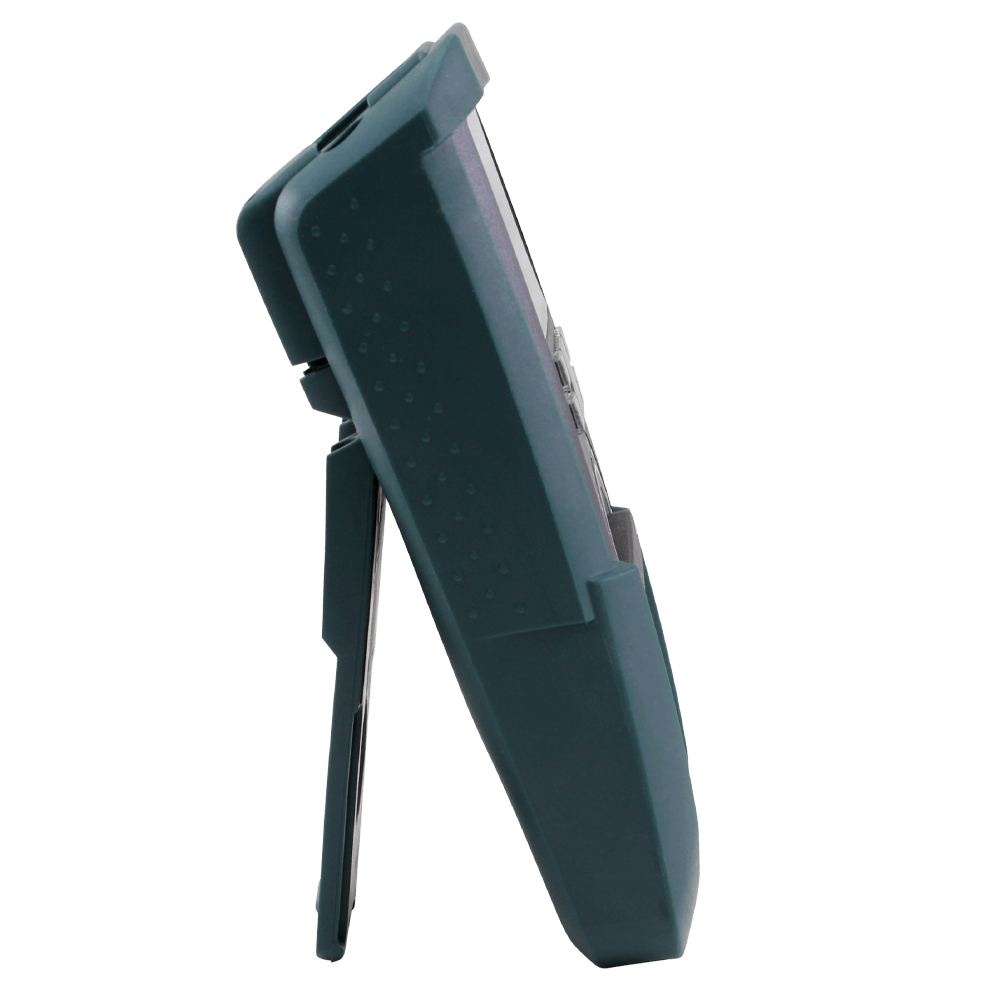

Gossen Metrawatt M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Gossen Metrawatt M252A | 4 6/7-digit special multimeter METRAHIT EU Pro (formerly ESPECIAL) with 21 multimeter functions.

Technical Data

Documents & Downloads

Description

M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Lieferumfang

Accessoires (24 products )

Alternate products (32 products )

Recommendations (6 products )

About the Manufacturer

Last Seen Products
