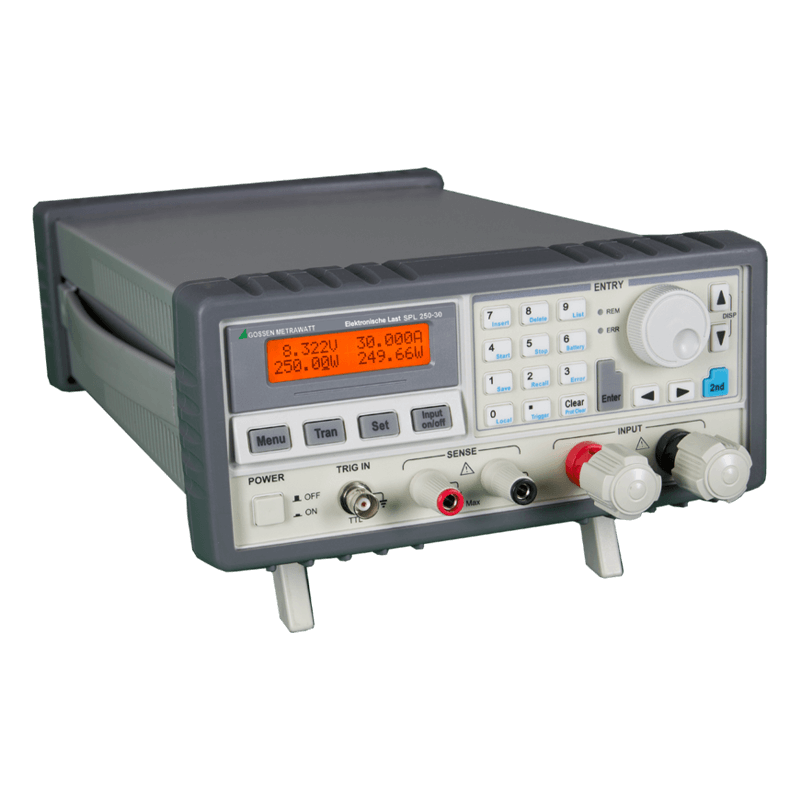

Gossen Metrawatt K852A | Electronic load, SPL250-30, 80V / 30A, 250W, RS232, opt. GPIB

Name: K852A | Electronic load, SPL250-30, 80V / 30A, 250W, RS232, opt. GPIB
Brand: Gossen Metrawatt
SKU: K852A
Price: 2050.0 EUR
Availability: OutOfStock

Manufacturer number: K852A

Delivery time upon request

€2,050.00

plus VAT. €2,439.50 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt K852A | Programmable 1-channel electronic load (tabletop device) SPL250-30 with digital multifunction display, with current, resistance, power and voltage characteristics, input 0-30 A / 0-80 V / 250 watts.

1 load input on the front
Power: 250W
Current: 0 - 30 A.
Voltage: 0 - 80 VDC
4 operating modes: constant current (CC), constant voltage (CV), constant load (CR), constant power (CP)
Resolution: with constant current from 0.1 mA, with constant voltage 1 mV, with constant load from 0.1 mΩ, with constant power 10 mW
High-speed sequence and transient measurement, short-circuit strength, battery discharge and other auxiliary functions
The minimum operating voltage is less than 0.6 V at maximum current load
Programmable current rise and fall times, steep edges
Several groups of parameters (device settings) and sequences (load profile) can be saved and called up.
Potential-free power input / no earthing
Safe electrical isolation
Switchable input (input on / off)
With constant power voltage regulation or current regulation possible
Settings via encoder and keyboard
Multifunctional LCD display
Protective devices, including adjustable power limitation
Tabletop unit, also suitable for installation in a 19 "rack
Supply voltage 115/230 VAC 50/60 Hz
Dimensions W / H / D (mm) approx. 215/100/280
Weight m. Rubber protection about 6 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

AC input:	115 V - 230V
Article number:	K852A
Dimensions (L x W x H) (mm):	391 x 213 x 104
Interfaces:	RS-232 Optional: GPIB
Mains feedback:	No
Measurement functions:	High-speed sequence and transient measurement, short-circuit withstand, battery discharge
Model:	K852A
Protective devices:	OCP, OVP, OTP, OPP
Weight (kg):	5.8
max. Power (A):	30
max. Voltage (V):	80

Description

K852A | Electronic load, SPL250-30, 80V / 30A, 250W, RS232, opt. GPIB

The electronic load (DC-Load) of the SPL series is a highly accurate direct current sink for use in research, development, production, service and training. The device is characterized by a variety of functions and a high degree of control accuracy with high ease of use.

The direct current sink (electronic load resistance) is used for the adjustable ohmic load of direct voltage / direct current sources with constant current, resistance, voltage or power. Your area of application is the static and dynamic testing of power supplies, batteries, PV modules, fuel cells, inductors, etc.

Accessoires (3 products )

Gossen Metrawatt K890A

Option IEEE488 interface for SPL series and LABKON P series

2 in stock. Ready to ship in 1 business day

€600.00

Gossen Metrawatt Z990A

Rackmount kit for SPL series and LABKON P series

Ready to ship in 5 to 10 business days

€300.00

Gossen Metrawatt K891A

USB interface option for LABKON P series

Ready to ship in 5 to 10 business days

€350.00

Alternate products (4 products )

Gossen Metrawatt K855A

Electronic load, SPL350-30 200V / 30A, 350W, RS232, opt. GPIB

Ready to ship in 5 to 10 business days

€2,600.00

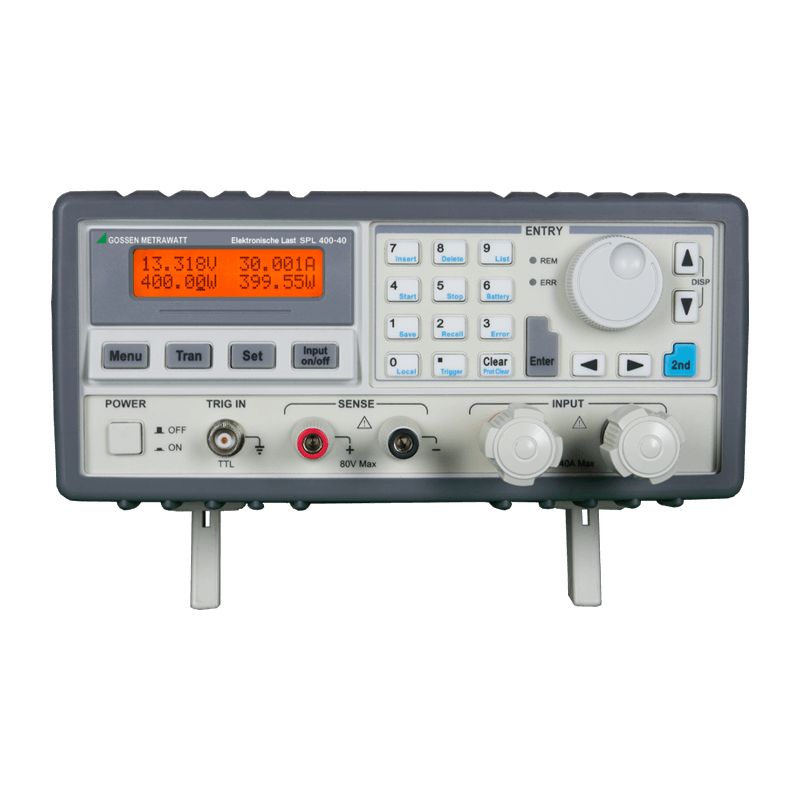

Gossen Metrawatt K853A
