FLUKE FLUKE-287 / EUR | 287 Truly effective handheld multimeter, 4 1/2 digits, logging function, USB

Name: FLUKE-287 / EUR | 287 Truly effective handheld multimeter, 4 1/2 digits, logging function, USB
Brand: FLUKE
SKU: FLUKE-287/EUR
Price: 786.01 EUR
Availability: InStock

Manufacturer number: FLUKE-287/EUR

1 in stock. Ready to ship in 1 business day

€786.01

% €947.00 (17% saved)

plus VAT. €935.35 VAT plus shipping costs

or choose one of the following options:

Product inquiries

FLUKE FLUKE-287 / EUR | Fluke 287 true effective handheld multimeter, 4 1/2 digits, logging function, 50,000 digits, 1000 V, 10 A, CAT III 100, USB.

Large ¼ VGA display with a display range of 50,000 digits and white background lighting. Results of several measurements can be shown simultaneously on the large display.
The logging function with trend display (TrendCapture) is an important tool for documenting the target performance of your construction, processes or systems. It is used for unattended monitoring while you do other tasks. The device displays measurements graphically as a single line for better detection of signal anomalies over a longer period of time and saves up to 10,000 measured values. With the integrated function for trend display (TrendCapture), recorded measured values can be displayed graphically without the use of a PC. (Optional software and interface cable).
Recording of multiple measurements or continuous data recording for more than 200 hours. This is particularly useful in determining the overall performance of a design or for unattended monitoring.
"I" Info button / integrated help for measurement functions. Do you need information on a specific function? Simply select the relevant function and press the "i" button.
Saved measurements make it possible to name and recall measurements carried out in mobile use
Real-time clock: Enables automatic time stamping of stored measured values
The measuring device, which can be retrofitted and expanded on site, makes it possible to stay up to date and to use newly added functions as soon as they are available
Recording of events and trends: Used for troubleshooting sporadic problems and for load display.
Multilingual user interface
Programmable buttons, scroll buttons, and simple navigation controls for access to secondary functions. The definition of user-defined displays is also possible.
Basic accuracy: 0.025% for direct voltage
AC bandwidth: 100 kHz
True rms measurement of AC voltage and current for precise measurements of complex signals or non-linear loads.
Measurement of up to 10 A (20 A for 30 seconds, 10 A continuous operation)
Capacity range: 100 mF
Temperature function
Relative value mode for subtracting the measuring lead resistance for low-ohm measurements or capacitance measurements
Peak value acquisition for recording short-term transients up to 250 µs
High quality test leads including alligator clips
Optical USB interface for easy transfer to the PC for the purpose of documenting measurement data with the FVF software (not included in the scope of delivery).
Navigation buttons for quick selection of menu items and for scrolling through information displays
Internal memory for independent logging of more than 200 hours.
Min / max / mean value with time marking for recording signal fluctuations
Weight 0.87 kg
Dimensions: W 222 mm x H 102 mm x D 60 mm
Lifetime guarantee

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	3947781
Backlight:	Yes
Basic precision:	0,05 %
Capacity measuring range:	1 nF - 100 mF
Current measuring range AC/DC:	500µA - 10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	222 x 102 x 60
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	50000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	99,99 Hz - 999,99 kHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	FLUKE-287/EUR
Number of positions:	4.5
Resistance measuring range:	500 Ω - 500 MΩ
Temperature measurement ( PT100 / Type K / Type J):	-200°C - +1350°C
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	50 mV - 1000 V
Warranty (years):	30
Weight (kg):	0.8709

Description

FLUKE-287 / EUR | 287 Truly effective handheld multimeter, 4 1/2 digits, logging function, USB

The true effective logging multimeter Fluke 287 for electronic applications with trend display (TrendCapture) documents the target performance in the shortest possible time and shows the processes graphically. Thanks to the unique logging and graphic display capabilities, logged measured values no longer have to be transferred to a PC for trend determination.

The Fluke 287 multimeter is more accurate and easier to use than any other portable multimeter. Solving problems has never been easier. The device represents the ultimate in hand-held measuring devices for demanding applications that require a high degree of accuracy.

Lieferumfang

Multimeter 287
Manual
6 AA batteries
Silicone test leads TL71
Measuring tip holder
Alligator clips
CD-ROM User Guide (16 languages)
quick start Guide

Accessoires (25 products )

Keysight U1168B

Test lead set expanded with tips and clamps

2 in stock. Ready to ship in 1 business day

€161.00

Gossen Metrawatt Z219B

WZ12B current probe, 4 mm, 100 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

€224.00

FLUKE C280

Carrying case for Fluke 280 series

Delivery time upon request

€84.66 €102.00

Chauvin Arnoux P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

€64.00

FLUKE TL932

Connection line, 90 cm

1 in stock. Ready to ship in 1 business day

€25.73 €31.00

FLUKE TL935

Connection cable connection set 60, 90, 120 cm

Delivery time upon request

€77.19 €93.00

FLUKE TPAK

Mounting kit for Fluke multimeters

5 in stock. Ready to ship in 1 business day

€53.12 €64.00

Gossen Metrawatt Z207E

Metraflex 3000 current clamp 30/300/3000 A, 100/10/1 mV / A

Ready to ship in 5 to 10 business days

€699.00

Keysight 34133A

Test lead set for table multimeter spring-loaded fine measuring tip, 1 x rt, 1 x black

2 in stock. Ready to ship in 1 business day

€90.64

FLUKE AC89

Insulation piercing clips

1 in stock. Ready to ship in 1 business day

On Request

FLUKE FLUKE TP912

Replacement tips for TL910

Delivery time upon request

€48.14 €58.00

FLUKE TLK287

Test lead set, master for electronics applications

Delivery time upon request

€217.46 €262.00

FLUKE TL224

Pair of test leads with angled and straight plug

2 in stock. Ready to ship in 1 business day

€41.50 €50.00

FLUKE TL238

Test Lead Kit SureGrip

1 in stock. Ready to ship in 1 business day

€103.75 €125.00

FLUKE FLUKE H900

Test lead holder

Delivery time upon request

€43.99 €53.00

FLUKE 80K-15

Probe, high voltage 1000X, 60Hz, 15kV

Delivery time upon request

€373.50 €450.00

FLUKE 80BK-A

Universal sensor type K with 4 mm plug, -40 to + 260ºC

1 in stock. Ready to ship in 1 business day

€48.97 €59.00

FLUKE 80T-150UA

Universal semiconductor sensor -50 to + 150 ° C

Delivery time upon request

€376.82 €454.00

FLUKE AC280

Sure Grip hook clamps

Delivery time upon request

On Request

FLUKE I200S

Current clamp, BNC, 200 A 40 Hz - 10 kHz, U-Out

2 in stock. Ready to ship in 1 business day

€335.32 €404.00

FLUKE I200

Current clamp, 4 mm, 200 A 40 Hz - 10 kHz, I-Out

Delivery time upon request

€202.52 €244.00

FLUKE C125

Carrying case for Fluke multimeters

Delivery time upon request

€63.08 €76.00

FLUKE TL930

Connection line, 60cm

Delivery time upon request

€23.24 €28.00

FLUKE IR189USB

USB-IR cable for 180/280 / 1550B / 1653/789

Delivery time upon request

€63.08 €76.00

FLUKE i2000 flex

Rogowski current clamp, 2000 A, 4 mm, 5 Hz - 100 kHz

Delivery time upon request

On Request

Alternate products (16 products )

Keysight U1252B

Multimeter, TRMS, 4½, ACV / DCV, integr. Rectangle generator

Delivery time upon request

€788.00

Gossen Metrawatt METRAHIT PM XTRA (formerly EXTRA)

Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

Ready to ship in 5 to 10 business days

€924.00

Keysight U1253B

Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator

Delivery time upon request

€868.00

Gossen Metrawatt M234D

Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€870.00

Gossen Metrawatt M252A

Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Ready to ship in 5 to 10 business days

€777.00

Gossen Metrawatt M243E

MetraHit TECH multimeter, hand 4 ½ digits, without interface

1 in stock. Ready to ship in 1 business day

€610.00

Gossen Metrawatt M241A

Metrahit BASE multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

Ready to ship in 5 to 10 business days

€419.00

Gossen Metrawatt METRAHITE OUTDOOR

Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

Ready to ship in 5 to 10 business days

€798.00

Keysight U1251B

Multimeter, TRMS, 4½, incl. Ni-MH battery

Delivery time upon request

€737.00

Gossen Metrawatt M242E

Metrahit PRO + GH multimeter 4 1/2 digits, with rubber cover

Ready to ship in 5 to 10 business days

€530.00

Gossen Metrawatt M243A

Metrahit TECH multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

4 in stock. Ready to ship in 1 business day

€572.00

Gossen Metrawatt METRAHITE PM TECH

Multimeter, TRMS, 4 6/7, ± 0.05% VDC (M253A)

Ready to ship in 5 to 10 business days

€809.00

Gossen Metrawatt M206A

Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€415.00

Gossen Metrawatt M240A

Metrahit X-TRA multimeter, hand 4 ½ digits, 12,000 digits, IR interface, DAkkS

2 in stock. Ready to ship in 1 business day

€699.00

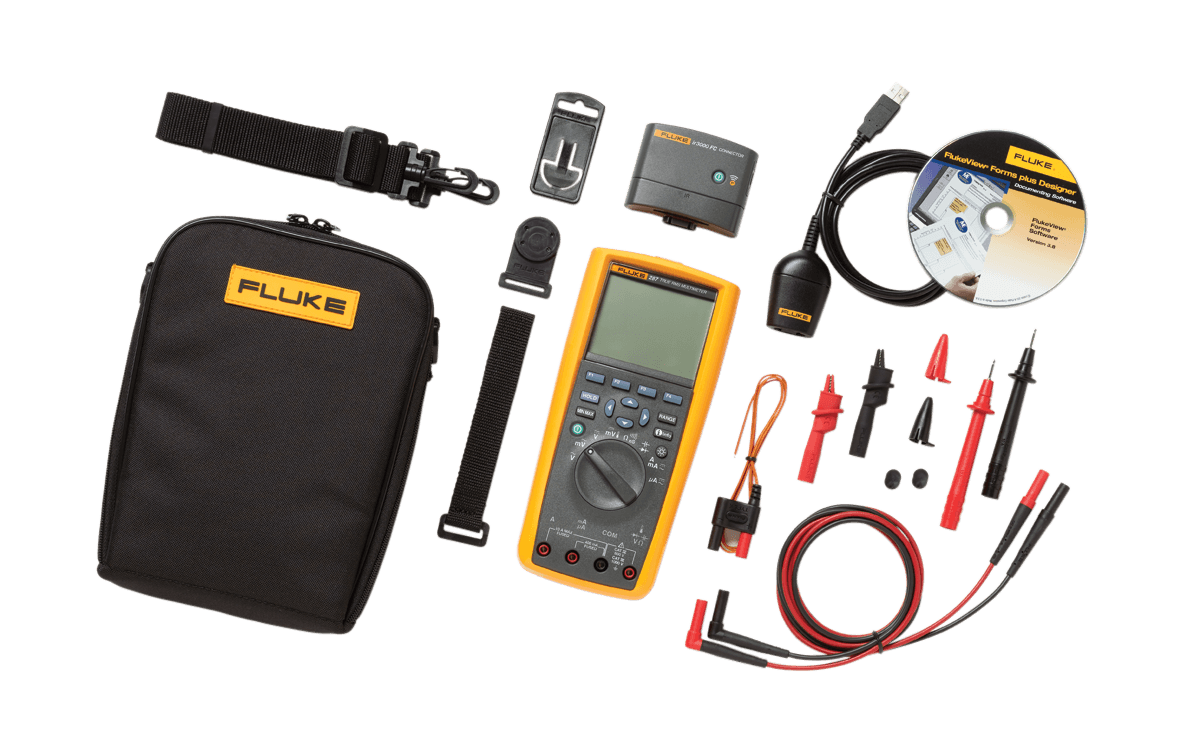

FLUKE 287/FVF/IR3000
