FLUKE 114 | Multimeter, hand 4 digits
Manufacturer number: FLUKE-114 EUR
Delivery time upon request
On Request
%
or choose one of the following options:

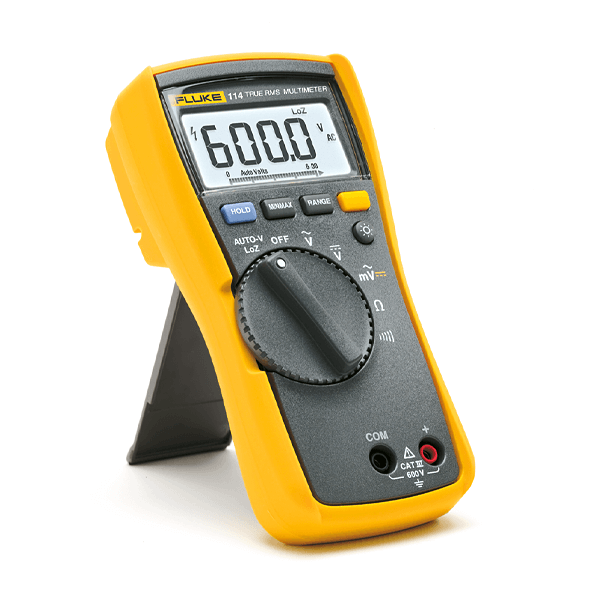

Fluke 114 | 4-digit TRMS digital handheld multimeter.
- AutoVolt: automatic DC / AC voltage switching
- Large white LED backlight for working in poorly lit areas
- Resistance measurement and continuity test
- Min / max / mean value for recording signal fluctuations
- Safety specification CAT III 600 V
- All inputs are protected according to CE and EN 61010-1 CAT III 600 V.
- UL, CSA and TÜV approval as well as VDE
- Weight 0.55 kg
- Dimensions: W 167 mm x H 84 mm x D 46 mm
- 3 year guarantee
Technical Data
Analogue segment display: | Yes |
---|---|
Article number: | 2583552 |
Backlight: | Yes |
Basic precision: | 2 % |
Capacity measuring range: | No |
Current measuring range AC/DC: | No no |
Data memory / logger: | No / No |
Dimensions (L x W x H) (mm): | 167 x 84 x 46 |
Diode test / continuity test: | Yes / Yes |
Display Hold / Auto-Hold: | Yes / Yes |
Display resolution: | 6000 |
Electrical safety: | CAT III 600 V |
Frequency measuring range: | No |
Min. / Max. Recording: | Yes / Yes |
Model: | FLUKE-114 EUR |
Number of positions: | 4 |
Resistance measuring range: | 600Ω - 40MΩ |
Temperature measurement ( PT100 / Type K / Type J): | No |
True effective measurement TRMS: | Yes |
Voltage measuring range AC/DC: | 6V - 600V / 600mV - 600V |
Warranty (years): | 3 |
Weight (kg): | 0.55 |
Documents & Downloads
Description
114 | Multimeter, hand 4 digits
Compact true-rms measuring device for electrical troubleshooting. The Fluke 114 is the ideal troubleshooting tool for continuity tests. It has a function to prevent erroneous readings from phantom voltages.

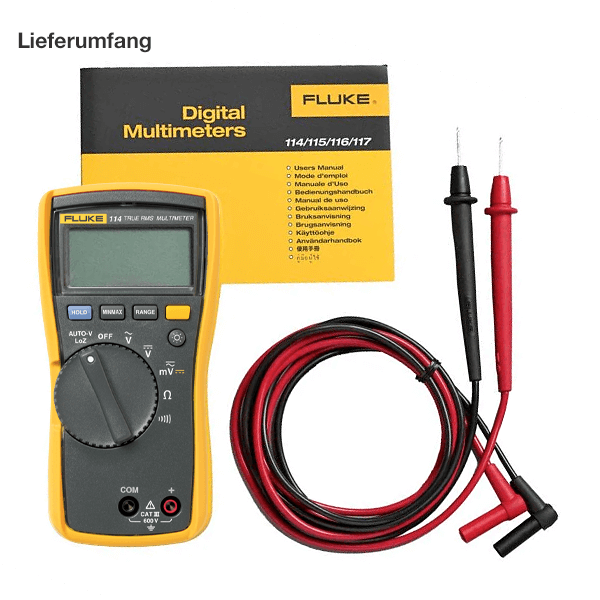

Lieferumfang
- Multimeter
- 9 V battery used
- Test leads with pointed 4 mm banana plugs
- Holster
- Manual
