Keysight EXR254A | Real Time Oscilloscope Infiniium EXR Series, 2.5 GHz, 16 GSa/s, 4 Ch

Manufacturer number: EXR254A

Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Keysight EXR254A
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight EXR254A | Real-time oscilloscope EXR series, 2.5 GHz, 4 channels, sampling rate up to 16 GSa/s, up to 16 bit resolution.

  • Display: 15.6" touchscreen, FullHD resolution, dual screen support
  • Analogue channels: 4 (optionally upgradable to 8 channels)
  • Digital logic channels: 16 (optional)
  • Bandwidth: 2.5 GHz (optionally upgradable to 6 GHz)
  • Sampling rate: 16GSa/s
  • Memory: 100 Mpts / channel (upgradable to 400 Mpts)
  • Resolution: up to 16 bits
  • Refresh rate: > 200,000 wfm/s
  • Jitter: 118 fs
  • Noise: 43μV
  • Weight: 13.75kg
  • Dimensions (H x W x D): 327mm x 443mm x 223mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Brochure
pdf | 2.01 MB
Datasheet
pdf | 3.19 MB
Userguide
pdf | 4.99 MB

Description

EXR254A | Real Time Oscilloscope Infiniium EXR Series, 2.5 GHz, 16 GSa/s, 4 Ch

The Keysight Infiniium EXR Series real-time oscilloscopes include twelve models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, 16 digital channels, and dozens of hardware and software options. The oscilloscopes of the Infiniium EXR series are particularly powerful and easy and intuitive to use.

With a signal update rate > 200,000, even sporadic errors can be found quickly and without additional settings.

Each model features a 10-bit ADC with a sampling rate of 16 GSa/s available on all channels simultaneously. The usefulness of a high-resolution ADC depends on the low-noise front-end supporting the additional quantization stages. Our low-noise front-end includes custom ICs, such as the 130nm BiCMOS IC that includes user-selectable analog filters and bandwidth upgrades via software license. A resolution of up to 16-bit is possible in HighRes mode.

With the offline software and a simple daisy chain connection, up to 10 EXR can be connected for up to 40 channels with a single time base.

The Keysight Infiniium EXR Series comes standard with two useful tools that allow you to look forward and backward in time. In history mode, you can easily pause the oscilloscope at any time to review up to 1,024 previous trigger events. Segmented memory allows you to record up to 5,205 post-trigger events for analysis, with no limit between events. If your design features an elusive event that only seems to happen when you're not around, these tools can help you point the oscilloscope to look for that event so you can then leisurely review what's captured will. And with a Full HD screen of 1920x1080 pixels and support for a second, independent external monitor, this data can be organized and displayed.

The EXR254A oscilloscope is the variant of the EXR series with a bandwidth of 2.5 GHz and 4 channels. Alternatively, you can get the EXR in bandwidths from 500 MHz to 6 GHz (upgradable) and with 4 or 8 analogue channels.

Product features EXR series:

  • 15.6" touchscreen display with Full HD, dual screen support
  • 4 or 8 analog channels (upgradable)
  • Bandwidth from 500 MHz – 6 GHz (upgradeable)
  • Sample rate up to 16 GSa/s
  • 4x higher vertical resolution than 8-bit oscilloscopes
  • Up to 16-bit in high-resolution mode
  • minimum noise of 43 μV
  • High memory depth with 100 Mpts per channel (optionally up to 400 Mpts per channel)
  • 9-bit system ENOB with hardware filtering

Accessoires (41 products )

Keysight EXR2RACK
Exclusive
Keysight EXR2RACK
Rackmount Kit for Infiniium EXR-Series, 8U
2 in stock. Ready to ship in 1 business day
On Request
Keysight EXR2MEM-003
Exclusive
Keysight EXR2MEM-003
Upgrade from 200 Mpts / ch to 400 Mpts / ch
Delivery time upon request
On Request
Keysight EXR2SSD-01T
Exclusive
Keysight EXR2SSD-01T
Additional Removable SSD for Infiniium 1 TB EXR-Series
Delivery time upon request
On Request
Keysight EXR2MEM-002
Exclusive
Keysight EXR2MEM-002
Upgrade from 100 Mpts / ch to 400 Mpts / ch
Delivery time upon request
On Request
Keysight EXR2SSD
Exclusive
Keysight EXR2SSD
Additional Removable SSD for Infiniium EXR-Series
Delivery time upon request
On Request
Keysight EXR2WAV
Exclusive
Keysight EXR2WAV
Arbitrary Function Generator for Infiniium 50 MHz EXR-Series
Delivery time upon request
On Request
Keysight EXR2MEM-001
Exclusive
Keysight EXR2MEM-001
Upgrade from 100 Mpts / ch to 200 Mpts / ch
Delivery time upon request
On Request
Keysight EXR2SSD-500
Exclusive
Keysight EXR2SSD-500
Additional Removable SSD for Infiniium 500 GB EXR-Series
Delivery time upon request
On Request
Keysight EXR28CH-004
Exclusive
Keysight EXR28CH-004
Channel upgrade from 4 to 8 channels, 2.5 GHz
Delivery time upon request
On Request
Keysight PP0003A
Keysight PP0003A
Hi-Z + probe, passive, MMCX interface, 1 GHz, 30 Vrms
Delivery time upon request
€1,065.00
Keysight PP0002A
Keysight PP0002A
Hi-Z + probe, passive, 800 MHz, 1200 Vrms
1 in stock. Ready to ship in 1 business day
€1,191.00
Keysight PP0001A
Keysight PP0001A
Hi-Z + probe, passive, 1 GHz, 300 Vrms
Delivery time upon request
€1,065.00
Keysight DP0012A
Keysight DP0012A
Probe, differential, 1 GHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
1 in stock. Ready to ship in 1 business day
€5,537.00
Keysight DP0010A
Keysight DP0010A
Probe, differential, 250 MHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
Delivery time upon request
€3,551.00
Keysight DP0013A
Keysight DP0013A
Probe, differential, 1.7 GHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
1 in stock. Ready to ship in 1 business day
€6,796.00
Keysight DP0011A
Keysight DP0011A
Probe, differential, 500 MHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
Delivery time upon request
€4,280.00
Keysight D9010JITA
Keysight D9010JITA
EZJIT Complete - Jitter and Vertical Noise for Analysis Software 9000 / S-Series
Ready to ship in 5 to 10 business days
On Request
Keysight D9010EBZC
Keysight D9010EBZC
Ethernet Tx Compliance Software (10G, MGBase-T, Nbase-T)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010AUTP
Keysight D9010AUTP
Automotive protocol trigger and decoding software (CAN, LIN, CAN-FD, FlexRay) for Infiniium
Ready to ship in 5 to 10 business days
On Request
Keysight D9010LSPO
Bundle
Keysight D9010LSPO
Infiniium Offline - Low Speed Protocol Software Bundle
Ready to ship in 5 to 10 business days
On Request
Keysight D9010ETHC
Keysight D9010ETHC
Ethernet Tx Compliance Software (Ethernet, EEE)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010UDAA
Keysight D9010UDAA
User Defined Application Software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010PWRA
Keysight D9010PWRA
Power Supply Test Software for Infiniium Oscilloscopes
Delivery time upon request
On Request
Keysight D9010LSSP
Keysight D9010LSSP
Low Spped protocol trigger and decoding (I2C, SPI, RS232, I2S, JTAG) for Infiniium oscilloscope
Ready to ship in 5 to 10 business days
On Request
Keysight D9010EMBP
Keysight D9010EMBP
Embedded protocol decode / trigger software 10/100 (USB2.0, ETH, PCIe 2/1 ...)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010POWA
Keysight D9010POWA
Power Integrity Analysis software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010USBC
Keysight D9010USBC
USB 2.0 Tx compliance software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010SCNA
Keysight D9010SCNA
InfiniiScan Event Identification Software for 9000 / S-Series
Ready to ship in 5 to 10 business days
On Request
Keysight D9010ASIO
Keysight D9010ASIO
Infiniium Offline - Adv Signal Integrity Software (InfiniiSim Adv / EQ / Crosstalk)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010MILP
Keysight D9010MILP
Military Protocol Decode / Trigger Software (ARINC 429, MIL-STD 1553, SpaceWire)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010BSEO
Keysight D9010BSEO
Infiniium offline - base software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010ASIA
Keysight D9010ASIA
Advanced Signal Integrity Software for Infiniium Oscilloscopes
Delivery time upon request
On Request
Keysight D9010HSPO
Bundle
Keysight D9010HSPO
Infiniium Offline - High Speed Protocol Software Bundle
Ready to ship in 5 to 10 business days
On Request
Keysight D9010MPLP
Keysight D9010MPLP
Low Speed MIPI Protocol Decode / Trigger Software (RFFE, I3C, SPMI)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010CPHC
Keysight D9010CPHC
MIPI C-PHY Tx Compliance Software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010PAMA
Keysight D9010PAMA
Pulse Amplitude Modulation PAM-N Analysis Software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010MPMP
Keysight D9010MPMP
MIPI M-PHY Protocol Decode / Trigger Software (DigRF, LLI, CSI-3, UniPro, UFS, SSIC)
Ready to ship in 5 to 10 business days
On Request
Keysight D9010PCIP
Keysight D9010PCIP
Advanced PCIe protocol decoding and trigger software (PCIe 4/3/2/1, SATA / SAS) for Infiniium
Ready to ship in 5 to 10 business days
On Request
Keysight D9010DMBA
Keysight D9010DMBA
De-embedding software (Precision Probe, Basic) InfiiniSim
Ready to ship in 5 to 10 business days
On Request
Keysight D9010JITO
Keysight D9010JITO
Infiniium Offline - EZJIT Complete Software
Ready to ship in 5 to 10 business days
On Request
Keysight D9010MCDP
Keysight D9010MCDP
MIPI CSI and DSI Protocol Decode / Trigger Software (C-PHY and D-PHY)
Ready to ship in 5 to 10 business days
On Request

Alternate products (12 products )

Keysight EXR054A
Exclusive
Serie
Keysight EXR054A
Real Time Oscilloscope Infiniium EXR Series, 500 MHz, 16 GSa/s, 4 Ch
Delivery time upon request
On Request
Keysight EXR058A
Exclusive
Serie
Keysight EXR058A
Real Time Oscilloscope Infiniium EXR Series, 500 MHz, 16 GSa/s, 8 Ch
1 in stock. Ready to ship in 1 business day
On Request
Keysight EXR104A
Exclusive
Serie
Keysight EXR104A
Real Time Oscilloscope Infiniium EXR Series, 1 GHz, 16 GSa/s, 4 Ch
1 in stock. Ready to ship in 1 business day
On Request
Keysight EXR108A
Exclusive
Serie
Keysight EXR108A
Real Time Oscilloscope Infiniium EXR Series, 1 GHz, 16 GSa/s, 8 Ch
1 in stock. Ready to ship in 1 business day
On Request
Keysight EXR204A
Exclusive
Serie
Keysight EXR204A
Real Time Oscilloscope Infiniium EXR Series, 2 GHz, 16 GSa/s, 4 Ch
Delivery time upon request
On Request
Keysight EXR208A
Exclusive
Serie
Keysight EXR208A
Real Time Oscilloscope Infiniium EXR Series, 2 GHz, 16 GSa/s, 8 Ch
Delivery time upon request
On Request
Keysight EXR258A
Exclusive
Serie
Keysight EXR258A
Real Time Oscilloscope Infiniium EXR Series, 2.5 GHz, 16 GSa/s, 8 Ch
Delivery time upon request
On Request
Keysight EXR404A
Serie
Keysight EXR404A
Real Time Oscilloscope Infiniium EXR Series, 4 GHz, 16 GSa/s, 4 Ch
Delivery time upon request
On Request
Keysight EXR408A
Serie
Keysight EXR408A
Real Time Oscilloscope Infiniium EXR Series, 4 GHz, 16 GSa/s, 8 Ch
Delivery time upon request
On Request
Keysight EXR604A
Serie
Keysight EXR604A
Real Time Oscilloscope Infiniium EXR Series, 6 GHz, 16 GSa/s, 4 Ch
Delivery time upon request
On Request
Keysight EXR608A
Serie
Keysight EXR608A
Real Time Oscilloscope Infiniium EXR Series, 6 GHz, 16 GSa/s, 8 Ch
Delivery time upon request
On Request
Keysight Action AC01058
Sale
Keysight Action AC01058
Free memory upgrade & software app with new EXR oscilloscope purchase
On Request

Recommendations (56 products )

PICOTEST P2106A-20X-60-20K-B
PICOTEST P2106A-20X-60-20K-B
1-Port Resistive Divider Probe, 20 kOhms, BNC 20X attenuation, BNC connector,
Delivery time upon request
On Request
PICOTEST P2106A-20X-50-20K-B
PICOTEST P2106A-20X-50-20K-B
1-Port Resistive Divider Probe, 20 kOhms, BNC 20X attenuation, BNC connector,
Delivery time upon request
On Request
PICOTEST P2106A-20X-100-20K-S
PICOTEST P2106A-20X-100-20K-S
1-Port Resistive Divider Probe, 20 kOhms, SMA 20X attenuation, SMA-Mini SMP connectors,
Delivery time upon request
On Request
PICOTEST P2106A-1X-60-20K-S
PICOTEST P2106A-1X-60-20K-S
1-Port Resistive Divider Probe, SMA 1X attenuation, SMA-Mini SMP connectors,
Delivery time upon request
On Request
PICOTEST P2106A-20X-100-20K-B
PICOTEST P2106A-20X-100-20K-B
1-Port Resistive Divider Probe, 20 kOhms, BNC 20X attenuation, BNC connector,
Delivery time upon request
On Request
PICOTEST P2106A-1X-60-20K-B
PICOTEST P2106A-1X-60-20K-B
1-Port Resistive Divider Probe, BNC 1X attenuation, BNC connector,
Delivery time upon request
On Request
PICOTEST P2106A-1X-50-20K-S
PICOTEST P2106A-1X-50-20K-S
1-Port Resistive Divider Probe, SMA 1X attenuation, SMA-Mini SMP connectors,
Delivery time upon request
On Request
PICOTEST P2106A-1X-100-20K-B
PICOTEST P2106A-1X-100-20K-B
1-Port Resistive Divider Probe, BNC 1X attenuation, BNC connector,
Delivery time upon request
On Request
PICOTEST P2106A-1X-100-20K-S
PICOTEST P2106A-1X-100-20K-S
1-Port Resistive Divider Probe, SMA 1X attenuation, SMA-Mini SMP connectors,
Delivery time upon request
On Request
PICOTEST P2104A-5X-100-BNC
PICOTEST P2104A-5X-100-BNC
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, BNC connector, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-100-SMA
PICOTEST P2104A-5X-100-SMA
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, SMA-Mini SMP connectors, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-60-SMA
PICOTEST P2104A-5X-60-SMA
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, SMA-Mini SMP connectors, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-60-BNC
PICOTEST P2104A-5X-60-BNC
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, BNC connector, Pitch Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-100-SMA
PICOTEST P2104A-AC-100-SMA
1-Port Transmission Line PDN Probe, AC-coupled, SMA-Mini SMP connectors, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-60-BNC
PICOTEST P2104A-AC-60-BNC
1-Port Transmission Line PDN Probe, AC-coupled, BNC connector, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-60-BNC
PICOTEST P2104A-10X-60-BNC
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, BNC connector, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-70-SMA
PICOTEST P2104A-10X-70-SMA
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, SMA-Mini SMP connectors, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-100-BNC
PICOTEST P2104A-1X-100-BNC
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, BNC connector, Pitch Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-70-BNC
PICOTEST P2104A-1X-70-BNC
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, BNC connector, Pitch Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-60-BNC
PICOTEST P2104A-1X-60-BNC
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, BNC connector, Pitch Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-100-BNC
PICOTEST P2104A-2X-100-BNC
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, BNC connector, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-100-SMA
PICOTEST P2104A-2X-100-SMA
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, SMA-Mini SMP connectors, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-50-SMA
PICOTEST P2104A-2X-50-SMA
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, SMA-Mini SMP connectors, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-70-SMA
PICOTEST P2104A-2X-70-SMA
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, SMA-Mini SMP connectors, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2106A-20X-50-20K-S
PICOTEST P2106A-20X-50-20K-S
1-Port Resistive Divider Probe, 20 kOhms, SMA 20X attenuation, SMA-Mini SMP connectors,
Delivery time upon request
On Request
PICOTEST P2106A-1X-50-20K-B
PICOTEST P2106A-1X-50-20K-B
1-Port Resistive Divider Probe, BNC 1X attenuation, BNC connector,
Delivery time upon request
On Request
PICOTEST P2106A-20X-60-20K-S
PICOTEST P2106A-20X-60-20K-S
1-Port Resistive Divider Probe, 20 kOhms, SMA 20X attenuation, SMA-Mini SMP connectors,
Delivery time upon request
On Request
PICOTEST P2104A-1X-70-SMA
PICOTEST P2104A-1X-70-SMA
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, SMA-Mini SMP connectors, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-50-BNC
PICOTEST P2104A-2X-50-BNC
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, BNC connector, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-60-BNC
PICOTEST P2104A-2X-60-BNC
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, BNC connector, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-60-SMA
PICOTEST P2104A-2X-60-SMA
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, SMA-Mini SMP connectors, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-2X-70-BNC
PICOTEST P2104A-2X-70-BNC
1-Port Transmission Line PDN Probe, 100 ohm 2X attenuation, BNC connector, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-50-BNC
PICOTEST P2104A-5X-50-BNC
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, BNC connector, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-70-BNC
PICOTEST P2104A-5X-70-BNC
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, BNC connector, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-50-SMA
PICOTEST P2104A-5X-50-SMA
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, SMA-Mini SMP connectors, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-5X-70-SMA
PICOTEST P2104A-5X-70-SMA
1-Port Transmission Line PDN Probe, 250 ohm 5X attenuation, SMA-Mini SMP connectors, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-100-BNC
PICOTEST P2104A-AC-100-BNC
1-Port Transmission Line PDN Probe, AC-coupled, BNC connector, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-50-BNC
PICOTEST P2104A-AC-50-BNC
1-Port Transmission Line PDN Probe, AC-coupled, BNC connector, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-50-SMA
PICOTEST P2104A-AC-50-SMA
1-Port Transmission Line PDN Probe, AC-coupled, SMA-Mini SMP connectors, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-60-SMA
PICOTEST P2104A-AC-60-SMA
1-Port Transmission Line PDN Probe, AC-coupled, SMA-Mini SMP connectors, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-70-BNC
PICOTEST P2104A-AC-70-BNC
1-Port Transmission Line PDN Probe, AC-coupled, BNC connector, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-AC-70-SMA
PICOTEST P2104A-AC-70-SMA
1-Port Transmission Line PDN Probe, AC-coupled, SMA-Mini SMP connectors, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-100-SMA
PICOTEST P2104A-10X-100-SMA
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, SMA-Mini SMP connectors, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-100-BNC
PICOTEST P2104A-10X-100-BNC
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, BNC connector, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-50-BNC
PICOTEST P2104A-10X-50-BNC
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, BNC connector, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-50-SMA
PICOTEST P2104A-10X-50-SMA
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, SMA-Mini SMP connectors, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-60-SMA
PICOTEST P2104A-10X-60-SMA
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, SMA-Mini SMP connectors, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-10X-70-BNC
PICOTEST P2104A-10X-70-BNC
1-Port Transmission Line PDN Probe, 500 ohm 10X attenuation, BNC connector, Pitch-Size: 70 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-100-SMA
PICOTEST P2104A-1X-100-SMA
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, SMA-Mini SMP connectors, Pitch-Size: 100 MIL, Rise Time: 58ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-50-BNC
PICOTEST P2104A-1X-50-BNC
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, BNC connector, Pitch Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-60-SMA
PICOTEST P2104A-1X-60-SMA
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, SMA-Mini SMP connectors, Pitch-Size: 60 MIL, Rise Time: 50ps
Delivery time upon request
On Request
PICOTEST P2104A-1X-50-SMA
PICOTEST P2104A-1X-50-SMA
1-Port Transmission Line PDN Probe, 50 ohm 1X attenuation, SMA-Mini SMP connectors, Pitch-Size: 50 MIL, Rise Time: 44ps
Delivery time upon request
On Request
Keysight DP0012A
Keysight DP0012A
Probe, differential, 1 GHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
1 in stock. Ready to ship in 1 business day
€5,537.00
Keysight DP0013A
Keysight DP0013A
Probe, differential, 1.7 GHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
1 in stock. Ready to ship in 1 business day
€6,796.00
Keysight DP0010A
Keysight DP0010A
Probe, differential, 250 MHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
Delivery time upon request
€3,551.00
Keysight DP0011A
Keysight DP0011A
Probe, differential, 500 MHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
Delivery time upon request
€4,280.00

Options (8 products )

Keysight EXR2MEM-001
Exclusive
Keysight EXR2MEM-001
Upgrade from 100 Mpts / ch to 200 Mpts / ch
Delivery time upon request
On Request
Keysight EXR2MEM-002
Exclusive
Keysight EXR2MEM-002
Upgrade from 100 Mpts / ch to 400 Mpts / ch
Delivery time upon request
On Request
Keysight EXR2MEM-003
Exclusive
Keysight EXR2MEM-003
Upgrade from 200 Mpts / ch to 400 Mpts / ch
Delivery time upon request
On Request
Keysight EXR2RACK
Exclusive
Keysight EXR2RACK
Rackmount Kit for Infiniium EXR-Series, 8U
2 in stock. Ready to ship in 1 business day
On Request
Keysight EXR2SSD
Exclusive
Keysight EXR2SSD
Additional Removable SSD for Infiniium EXR-Series
Delivery time upon request
On Request
Keysight EXR2SSD-01T
Exclusive
Keysight EXR2SSD-01T
Additional Removable SSD for Infiniium 1 TB EXR-Series
Delivery time upon request
On Request
Keysight EXR2SSD-500
Exclusive
Keysight EXR2SSD-500
Additional Removable SSD for Infiniium 500 GB EXR-Series
Delivery time upon request
On Request
Keysight EXR2WAV
Exclusive
Keysight EXR2WAV
Arbitrary Function Generator for Infiniium 50 MHz EXR-Series
Delivery time upon request
On Request

Probes (7 products )

Keysight PP0001A
Keysight PP0001A
Hi-Z + probe, passive, 1 GHz, 300 Vrms
Delivery time upon request
€1,065.00
Keysight PP0002A
Keysight PP0002A
Hi-Z + probe, passive, 800 MHz, 1200 Vrms
1 in stock. Ready to ship in 1 business day
€1,191.00
Keysight PP0003A
Keysight PP0003A
Hi-Z + probe, passive, MMCX interface, 1 GHz, 30 Vrms
Delivery time upon request
€1,065.00
Keysight DP0010A
Keysight DP0010A
Probe, differential, 250 MHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
Delivery time upon request
€3,551.00
Keysight DP0011A
Keysight DP0011A
Probe, differential, 500 MHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
Delivery time upon request
€4,280.00
Keysight DP0012A
Keysight DP0012A
Probe, differential, 1 GHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
1 in stock. Ready to ship in 1 business day
€5,537.00
Keysight DP0013A
Keysight DP0013A
Probe, differential, 1.7 GHz, AutoProbe1, for X-Series & Infiniium, DP001xA series
1 in stock. Ready to ship in 1 business day
€6,796.00

Offers (1 product )

Keysight Action AC01058
Sale
Keysight Action AC01058

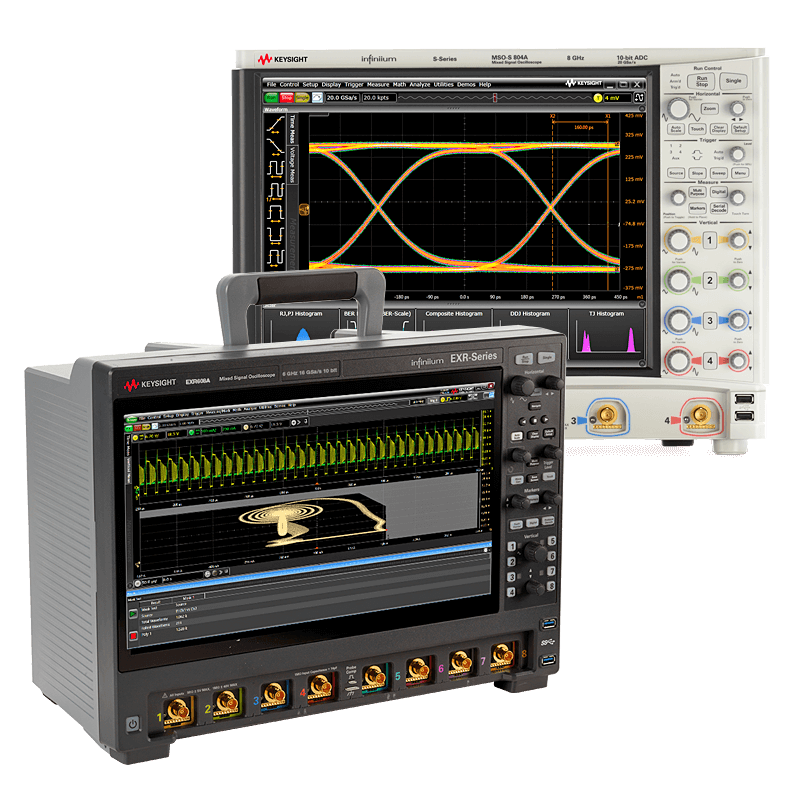

Free memory upgrade & software app with new EXR oscilloscope purchase
On Request

News and Knowledge

Applications
Buyer's Guide - How to choose an oscilloscope.

Navigating through the range of available specifications, options and capabilities can be challenging. There are a lot o...

15/02/2024
Reading time 25 Min.
97
0

About the Manufacturer

Keysight
Keysight
dataTec and Keysight Technologies have had a strong partnership since 1999. No other company offers such a wide range of measurement technology, testing solutions, and solutions for our connected world. With Keysight's measuring instruments, you are also well-equipped for today's and tomorrow's tasks.
Read more

Last Seen Products

Product added to compare
Product Compare added Product Compare
