EA Elektro-Automatik PSB10010-602U | DC power supply PSB 10000, bidirectional, 1 channel, 10V / +/-60A / 600W, incl. function generator

Name: PSB10010-602U | DC power supply PSB 10000, bidirectional, 1 channel, 10V / +/-60A / 600W, incl. function generator
Brand: EA Elektro-Automatik
SKU: PSB10010-602U
Availability: OutOfStock

Manufacturer number: PSB10010-602U

Delivery time upon request

On Request

or choose one of the following options:

Product inquiries Request education-price

EA electric automatic PSB 10010-60 | Bidirectional DC power supply 2U, PSB10000 series, 1 channel, 10V / +/-60A / 600W, integrated function generator.

Number of channels: 1
Rated Voltage Range: 0-10V
Residual ripple CV rms: 10 mV BW 300 kHz
Residual ripple CV pp: 100 mV BW 20 MHz
Rated Current Range: 0-60A
Power: 0-600W
Nominal resistance range: 0.04Ω - 80Ω
Frequency: 45-66Hz
Power factor: >0.99
Leakage Current: <3.5mA
Overvoltage category: 2
Pollution degree: 2
Protection functions: OVP, OCP, OPP, OT
Digital interfaces: USB, Ethernet (100 MBit) for communication, 1x USB host for data acquisition
Expandable interfaces: CAN, CANopen, RS232, ModBus TCP, Profinet, Profibus, EtherCAT, Ethernet
Analog interface: 15-pin D-Sub

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

AC input:	110 V - 240 V
Additional functions:	Funktionsgenerator mit Arbiträrfunktion, Netzrückspeisung, Simulation von Solarzellen und Brennstoffzellen, Maximum Power Point Tracking (MPPT), Regelmodus CV, CC, CP, CR, TFT - Touchscreen
Article number:	30000734
Autorange:	Yes
Bidirectional:	Yes
DC output reversible:	DC bidirectional
Dimensions (L x W x H) (mm):	462 x 482,6 x 88,9
Interfaces:	USB, Ethernet, Analog
Model:	PSB10010-602U
Output power (kW):	0.6
Power factor:	> 0,99
Protective devices:	OVP, OCP, OPP, OTP
Warranty (years):	2
Weight (kg):	9.5
max. Power (A):	60
max. Voltage (V):	10

Description

PSB10010-602U | DC power supply PSB 10000, bidirectional, 1 channel, 10V / +/-60A / 600W, incl. function generator

The bidirectional DC laboratory power supplies of the EA Elektro-Automatik PSB 10000 series are two-quadrant power supplies that can take on the function of both a power supply and that of an electronic load. In load operation, the DC power supplies work regeneratively and feed the energy back into the local power grid with an efficiency of over 96%. This efficient feedback reduces your costs.

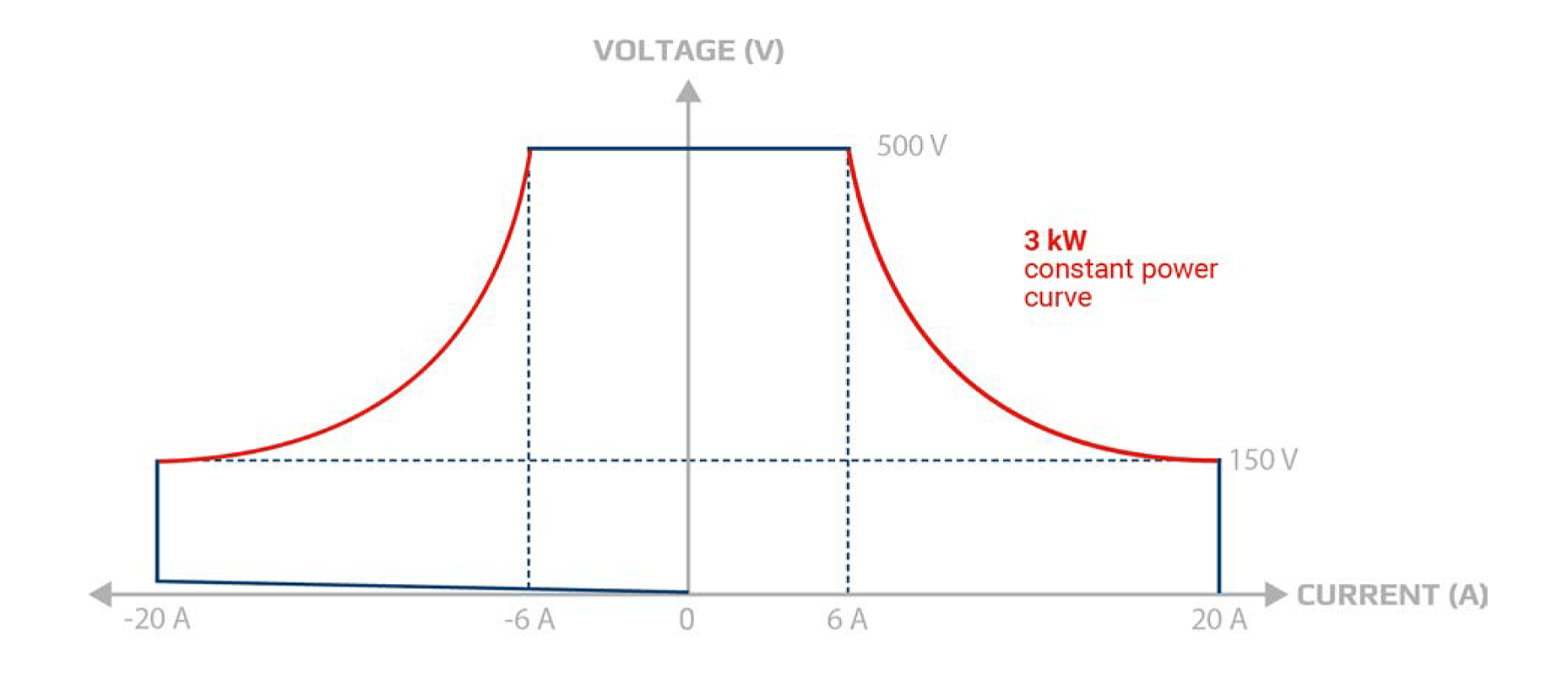

The PSB 10000 EA series includes single-phase and three-phase devices that, with their wide input range, can serve almost all mains voltages worldwide. The DC voltages and currents are oriented to the application, the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A to 0 - 1000 A in one device. The DC power supplies act as a flexible output stage with a constant performance characteristic, the so-called autoranging, as well as a large voltage, current and power range. In order to achieve higher power and currents, all devices have a master-slave bus. With 64 devices connected in parallel, this enables a system to be set up that provides up to 1920 kW and 64000 A.

All models of the PSB 10000 series have an integrated function generator. This can be used to call up curves such as sine, triangle, rectangle and trapezoid in the simplest way. Voltage and current curves are freely programmable via a ramp function and an arbitrary generator. Test sequences can be saved for recurring tests and reloaded if necessary, saving valuable time.

One of the typical applications of bidirectional power supplies is testing the electrical properties of a battery. The wide range of applications includes cell, module or pack tests, the determination of the SOH (state of health) for a second-life classification and the end-of-line test (EOL). Other applications include the simulation of batteries as a single cell, module or in a pack. With the help of these simulations, both the energy storage device and the components that are supplied by it can be optimally designed. The PSB 10000 series DC power supplies can also be used to test the electrical properties of fuel cells, fuel cell stacks and fuel cell systems. They generate highly accurate and reproducible results in all electrical modes. In order to test the resistance, performance and service life of a fuel cell quickly and inexpensively, users can easily integrate the devices into an automated test system. The PSB 10000 series is also ideal as a test system for PV inverters, as it has the necessary simulation unit for solar cells.

The PSB 10010-60 variant of the EA PSB 10000 series presented here measures 2 HE (2 U) and has 1 channel, 10 V / +/-60 A / 600 W and, like all models in the series, an integrated function generator.

General characteristics of the series:

Wide input range, 110V - 240V +10% 1ph AC
Active power factor correction, typically 0.99
Bi-directional power supply, two-quadrant with source and sink
Regenerative in load operation with energy recovery into the grid
Very high efficiency of over 95%
Voltage from 0 - 10 V to 0 - 1,500 V
Current from 0 - 6 A to 0 - 120 A
Flexible power-controlled DC input/output stages (autoranging)
Control mode CV, CC, CP, CR with fast transition
Digital control, high resolution with 16bit ADCs and DACs
Colored 5" TFT display, touch function and intuitive operation
Galvanically isolated share bus for parallel operation of all performance classes in the 10000 series
Master-slave bus for parallel operation, up to 64 devices of all performance classes of the 10000 series
Integrated function generator with predefined curves
Predefined automotive test procedures for LV123, LV124 and LV148
Integrated battery test, battery simulation and fuel cell simulation
Photovoltaic test mode, MPPT, DIN EN 50530
Standard interfaces: USB, Ethernet, analog, USB host, master-slave bus, share bus
Optional interfaces: CAN, CANopen, RS232, Profibus, EtherCAT, Profinet with one or two ports, Modbus with one or two ports, Ethernet with one or two ports
Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
