Rohde&Schwarz MXO44 | Oscilloscope, basic unit, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s (1335.5050.04)

Name: MXO44 | Oscilloscope, basic unit, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s (1335.5050.04)
Brand: Rohde&Schwarz
SKU: 1335.5050.04
Price: 8280.0 EUR
Availability: InStock

Manufacturer number: 1335.5050.04

49 in stock. Ready to ship in 1 business day

€8,280.00

plus VAT. €9,853.20 VAT plus shipping costs

or choose one of the following options:

Product inquiries % Additional offers for this product

Rohde & Schwarz 1335.5050.04 | MXO4 oscilloscope, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s, basic device.

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	1335.5050.04
Bandwidth (MHz):	200
Counter:	optional
DVM:	Yes
Dimensions (L x W x H) (mm):	162 x 414 x 279
Function generator:	optional AWG 100MHz
Interfaces:	USB / LAN
Model:	MXO44
Number of channels:	4
Number of digital channels:	16
Samplerate:	5 GSa/s
Screen size:	33,7 cm
Screen type:	1920 x 1080 Full HD Touchscreen
Segmentable memory:	Yes
Signal acquisition rate:	4,500000 wfms/sec
Special features:	Bandwidth upgrade up to 1.5GHz optional memory depth upgrade to 800 Mpts optional memory segmentation 1,000000 segments
Storage depth:	400 Mpts
Triggertypes:	Edge / Glitch / Width / Runt / Window / Timeout / Interval / Slew rate / Setup & hold / Pattern / State / Sequence / Bus
Vertical resolution:	12 bit
Warranty (years):	3
Weight (kg):	6

Detaildescription

MXO44 | Oscilloscope, basic unit, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s (1335.5050.04)

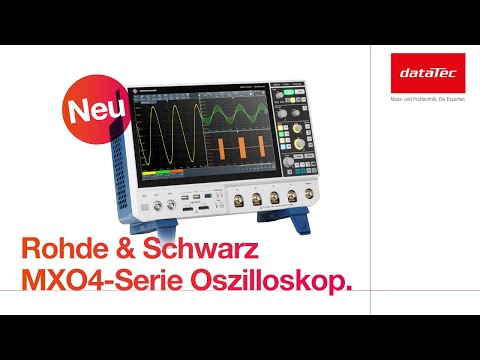

The Rohde & Schwarz MXO4 oscilloscope sets new standards and provides you with high-resolution results in the shortest possible time: 4.5 million waveforms per second, trigger rearm <21 ns, 12-bit ADC resolution (18-bit in HD mode), 400 Mpoints memory (expandable to 800 Mpoints) and a 13.3 inch capacitive full HD touchscreen .

With the MXO4, R&S are ringing in a new generation of oscilloscopes that combine maximum performance and excellent value for money. Adapt your MXO4 to your individual requirements, depending on what you need your oscilloscope for: Whether hardware debugging, serial bus analysis, power analysis, EMC debugging, or power supply integrity - with bandwidths from 200 MHz to 1.5 GHz , the MXO4 is yours ideal tool. Expand the already large memory depth of 400 Mpoints to 800 Mpoints if required.

See more signals, faster

The MXO4 has an excellent acquisition rate of over 4.5 million waveforms/s and a trigger rearm time of <21 ns , so you can see even the rarest anomalies immediately.

Analyze your signals precisely

The MXO4's ADC has 12-bit vertical resolution , and in HD mode you get 18-bit resolution . Combined with the minimal noise of 104 µV at 1 GHz with 1 mV/div sensitivity and the ±5 V offset range at 500 µV/div sensitivity, you are able to analyze even the smallest signal details that would otherwise be obscured by the noise.

Capture larger time range

Record a larger time range than before with the large standard memory depth of 400 Mpoints per channel, which can optionally be expanded to 800 Mpoints . The MXO4 has history and segmented memory that allows you to record up to 1 million acquisitions.

More precise containment of events

For the first time in this class, the MXO4 offers the digital trigger known from the larger oscilloscope series, which, with a vertical 1/1000 division with freely selectable hysteresis, enables events to be pinpointed precisely and accurately. A low trigger jitter of just 1 ps and freely adjustable digital filters complete the trigger engine.

The Rohde & Schwarz MXO4 is available in the basic version with 200 MHz bandwidth, 4 analog channels, 400 Mpoints memory and 4.5 million wfs/s acquisition rate . Expand your bandwidth to 350 MHz, 500 MHz, 1 GHz or 1.5 GHz according to your individual requirements with a license key. Optionally, the memory depth can be expanded to 800 Mpoints . Further options extend the oscilloscope by 16 digital channels (mixed signal option MXO4-B1), an arbitrary generator (AWG MXO4-B6), as well as extended triggers:

Low Speed Serial Triggering and Decode (I2C/SPI/UART/RS-232/RS-422/RS-485) (MXO4-K510)
Automotive Serial Triggering and Decode (CAN/CAN-FD/CAN-XL/LIN) (MXO4-K520)
Frequency Response Analysis (MXO4-K36)
Furthermore, an application bundle is available that contains all the triggers mentioned above (Application Bundle MXO4-PK1).

Product features:

Bandwidth: 200 MHz, 350 MHz, 500 MHz, 1 GHz (4 channels) 1.5 GHz (interleaved on 2 channels)
Channels: 4 analog // 16 digital (default)
Max Sample Rate: 5 Gsample/s (Interleaved) 2.5 Gsample/s (All Channels)
Memory depth: 400 Mpoints (standard) 800 Mpoints (option)
vertical resolution 12 bit ADC // 18 bit HD mode
Display: 13.3" capacitive full HD touchscreen display
Operating system: Linux (closed)
Warranty: 3 years

Lieferumfang

MXO4 oscilloscope
700 MHz passive probe (10:1) per channel
accessory bag
Quick Start Guide
power plug
