Chroma 63208A-150-800 | DC load, 8 kW, 150 V / 800 A, programmable

Manufacturer number: 63208A-150-800

Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Chroma 63208A-150-800
Delivery time upon request

On Request

This product cannot be retrofitted!
or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

Chroma 63208A-150-800 | Electronic load for high power, 150 V, 800 A, 8 kW, 19 inches, 7 U.

  • Maximum input power: 8,000 W.
  • Voltage range: 150 V DC
  • Current range: 800 A (maximum)
  • Control mode: constant current, resistance, voltage, (CC, CR, CV)

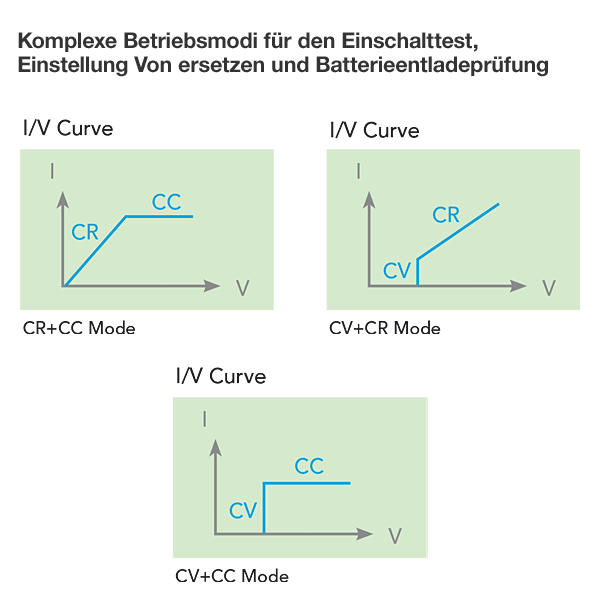

  • Complex control mode: CR + CC, CR + CV, CC + CV
  • Parallel connection of up to 20 devices in master / slave mode
  • Dynamic-synchronous control with static as well as dynamic loads
  • Application-specific (arbitrary) load change (UDW / User Defined Waveform)
  • CZ (Constant Impedance / Constant Impedance) mode for simulating capacitive loads in switch-on mode
  • External current-load simulation
  • Automatic sweep / or load changes with a frequency up to 50 kHz
  • Power supply load transient simulation in real time and peak value measurements (Vpp + / Vpp-) -
  • 256 user-specific device settings that can be called up
  • Very accurate voltage and current measurements
  • Interfaces: USB (standard), Optional: Ethernet, GPIB
  • Dimensions: height: 441 mm, width: 428 mm, depth: 647 mm
  • Weight: 97 kg
  • Warranty: 2 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 2.12 MB

Description

63208A-150-800 | DC load, 8 kW, 150 V / 800 A, programmable

The Chroma 63200A series are programmable, high performance electronic loads with very fast load control mechanisms. The high power density not only saves space, the high measurement accuracy for voltage (0.015% + 0.015% FS) and current (0.04% + 0.04% FS) ensures the reliability of measurement results. The devices in this series can be controlled either manually or by PC. In order to process higher outputs, several devices of the same type can be connected in parallel using a master / slave technology. These electronic loads have synchronized load distribution in order to simulate application-specific variable load situations.

These electronic loads are predestined for testing server power supplies, A / D power supplies, batteries / rechargeable batteries and for energy storage systems, EV / EVSE (Electronic Vehicle / Electronic Vehicle Supply Equipment // Electric vehicles / Electric vehicle power equipment) , Solar power elements and other power electronics.
