Chroma 61603 | AC source, 1.5 kVA, 300 V, 15 to 1 kHz

Manufacturer number: 61603

61603
61603
61603
61603
61603
61603
Delivery time upon request

€6,100.00

plus VAT. €7,259.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Chroma 61603 | Programmable AC power source 1,500 VA, 0-300 V, 15-1000 Hz, 1-phase.

  • AC output: 1,500 VA, 0-300 V, 15-1000 Hz, 1-phase
  • DC output: 750 W, 212 V / 424 V, 6 A / 3 A (212 V / 424 V)
  • Integrated power factor correction with input power factor above 0.98 (full load)
  • AC + DC output mode for offset simulation of the DC voltage
  • Programmable voltage and current limit
  • Comprehensive measuring capacity, V, Hz, Irms, Ipk, Iinrush, P, VAR, VA, PF, CF of the current etc.
  • High output current crest factor, ideal for testing the inrush current
  • Phase control when switching on and off
  • Call up 9 different voltages and frequencies with one button
  • Programmable current rise rate setting to change voltage and frequency
  • Analog input for power amplification
  • Analog programming interface as an option
  • Optional GPIB and RS-232 interface (model 61601 - 61605)
  • Optional USB and LAN interface
  • Comprehensive protection: OP, OC, OV and OT protection
  • Convenient PC software soft panel (GUI) for easy control and regulation included
  • Can provide an output power of up to 90 kVA by implementing a master-slave operation
  • Dimensions: Width: 482.6 mm x height: 133.35 mm x depth: 569.5 mm
  • Weight: 20 kg
  • 2 year guarantee

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

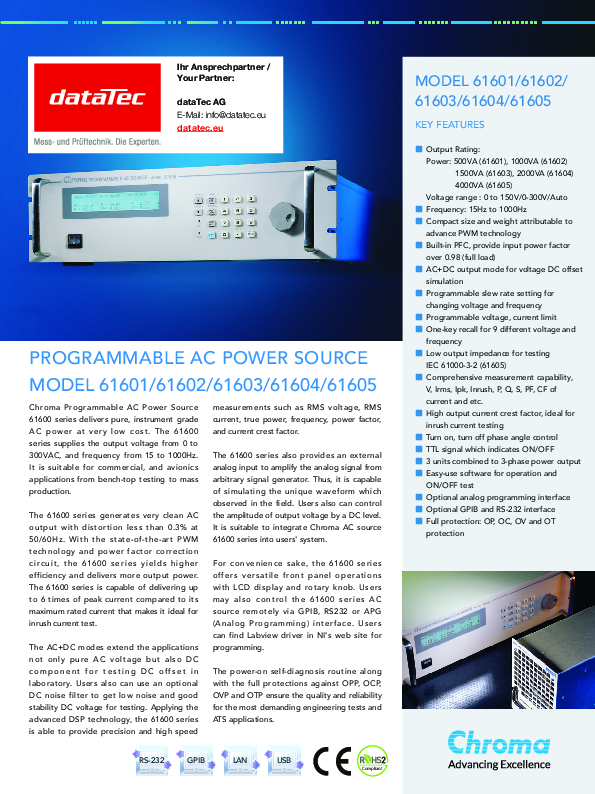

Datasheet
pdf | 1.19 MB

Description

61603 | AC source, 1.5 kVA, 300 V, 15 to 1 kHz

The programmable AC source of the Chroma 61600 series deliver pure AC and DC current suitable for instruments at a very low cost. The 61600 AC power source offers an output voltage between 0 and 300 VAC and a frequency between 15 and 1000 Hz.

Easy-to-use software enables users to edit an automatically executable profile and record the measurement data during the test. It is suitable for applications in the areas of commercial, avionics, marine and military in the workshop up to mass production.

The 61600 AC source produces a very clean AC output with a typical distortion of less than 0.3-0.5%. With the power factor correction circuit, the 61600 AC source achieves higher efficiency and provides more output power. With its state-of-the-art PWM technology, Chromas 61600 AC source is capable of delivering 6 times the peak current compared to its maximum rated current, making it ideal for input current testing.

Using advanced DSP technology, the 61600 AC source provides precision and high-speed measurements such as: B. RMS voltage, RMS current, active power, power factor and current peak factor.

Due to the possibility of using the source as a DC source or with a DC offset, the range of application only extends for loads <20uF or in conjunction with an optional DC noise filter. The 61600 AC source also has an external analog input to amplify the analog signal from the freely selectable signal generator. Therefore, it can simulate the particular waveform observed in this area. With the LCD display and the rotary knob, the Chromas 61600 AC power source offers a wide range of operations on the front panel. Users can also operate the 61600 remotely via a GPIB, RS-232 or APG (analog programming) interface. The self-diagnosis routine and the comprehensive protective measures for OPP, OCP, OVP and OTP ensure quality and reliability even with the most demanding technical tests and ATE applications.

Lieferumfang

li> Can achieve an output power of up to 90 kVA by implementing a master-slave operation
  • Dimensions: Width: 482.6 mm x height: 133.35 mm x depth: 569.5 mm
  • Weight: 20 kg
  • 2 year guarantee
