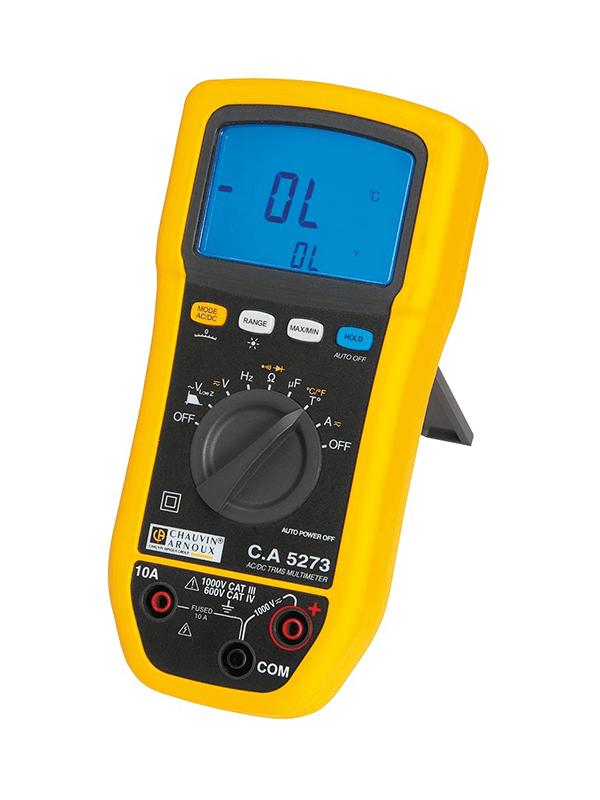

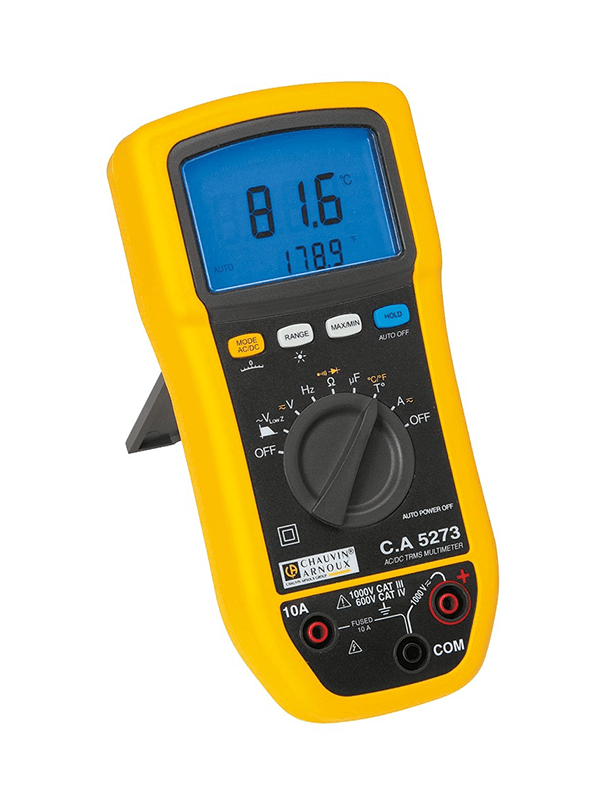

Chauvin Arnoux P01196773 | CA5273 multimeter, hand 3 3/4 digits

Name: P01196773 | CA5273 multimeter, hand 3 3/4 digits
Brand: Chauvin Arnoux
SKU: P01196773
Price: 303.0 EUR
Availability: OutOfStock

Manufacturer number: P01196773

Ready to ship in 5 to 10 business days

€303.00

plus VAT. €360.57 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

3 3/4 digit hand multimeter CA5273 from Chauvin Arnoux.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	P01196773
Backlight:	Yes
Basic precision:	AC 1,2 % / DC 0,2 %
Capacity measuring range:	6 nF - 60 mF
Current measuring range AC/DC:	6A - 10A / 6A - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	190 x 90 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	12000
Electrical safety:	CAT III 600 V
Frequency measuring range:	600 Hz - 50 kHz
Min. / Max. Recording:	No / No
Model:	CA5273
Number of positions:	3.75
Resistance measuring range:	600 Ω - 60 MΩ
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	600 mV - 1000 V / 60 mV - 1000 V
Warranty (years):	1
Weight (kg):	0.4

Documents & Downloads

Datasheet

pdf | 1.21 MB

Description

P01196773 | CA5273 multimeter, hand 3 3/4 digits

The CA 5273 is particularly ergonomic and compact. The protection type of the handy device is IP54. The very easy-to-read double digital display with 6000 digits is illuminated and has a bar graph with 61 + 2 segments, 2 remanence modes and switchable to central zero.

The safety of the CA 5273 multimeter leaves nothing to be desired and corresponds to measurement category 600 V CAT IV.

The CA 5273 were developed by CHAUVIN ARNOUX, are built in France and come with a 3-year guarantee.
