Chauvin Arnoux P01196521F | CA5001 analog multimeter

Name: P01196521F | CA5001 analog multimeter
Brand: Chauvin Arnoux
SKU: P01196521F
Price: 347.0 EUR
Availability: InStock

Manufacturer number: P01196521F

Delivery time upon request

€347.00

plus VAT. €412.93 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Chauvin Arnoux P01196521F | CA5001 analog multimeter, incl. Transport case.

DC voltage: 100 mV to 600 V (8 measuring ranges)
Accuracy: 1.5% or 2.5% for the measuring range 100 mV
AC voltage: 10 V to 600 V (5 measuring ranges)
Frequency range: [20 Hz-100 kHz] for 10 V measuring range, [20 Hz-1 kHz] for 300 V and 1000 V measuring ranges
Accuracy: 2.5% or 3% for the measuring range 100 mV
Impedance: 20 kΩ / V
DC current: 50 µA to 5 A (5 measuring ranges)
AC current: 5 mA to 5 A (4 measuring ranges)
Frequency range [40 Hz-5 kHz]
Accuracy: 2.5% to 5% for the 5 A measuring range
Resistance: 10 kΩ and 1 MΩ
Acoustic continuity test: R <50 Ω
dB scale (V AC).
Safety indicator lamp
Dimensions: 160 x 105 x 56 mm
Weight: 500 g
Use in all systems with CAT III 600 V according to IEC / EN 61010-1 edition 2 or below
Practical transport case

Technical Data

Analogue segment display:	Yes
Article number:	P01196521F
Backlight:	No
Basic precision:	AC 2,5 % / DC 1,5 %
Capacity measuring range:	No
Current measuring range AC/DC:	50mA - 5A / 50µA - 5A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	160 x 105 x 56
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	No / No
Electrical safety:	CAT III 600 V, CAT IV 600 V
Frequency measuring range:	10 Hz - 100 kHz
Min. / Max. Recording:	No / No
Model:	CA5001
Resistance measuring range:	10 kΩ - 1 MΩ
Special features:	including transport case
Temperature measurement ( PT100 / Type K / Type J):	No
True effective measurement TRMS:	No
Voltage measuring range AC/DC:	10 V - 1000 V / 100 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.5

Description

P01196521F | CA5001 analog multimeter

The CA 5001 is an analog multimeter at an affordable price that meets all measurement requirements of electricians.

Accessoires (1 product)

Chauvin Arnoux
P01298037

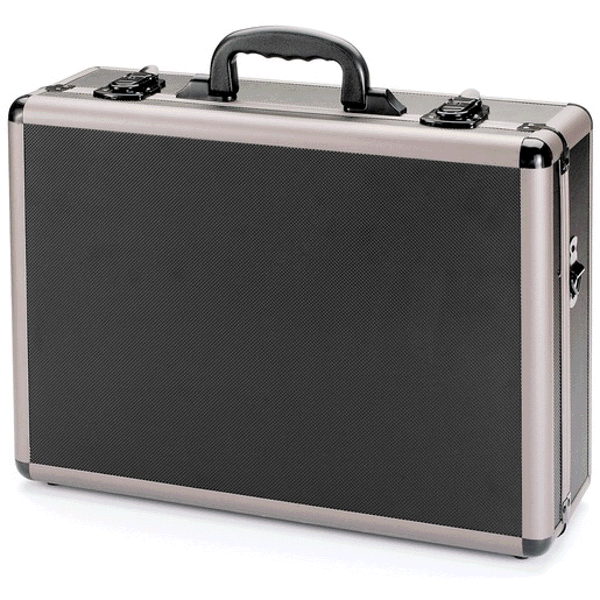

Transport case 285 x 210 x 80 mm, for CA5001 / 5003/5011

Delivery time upon request

€86.00

Recommendations (1 product)

Chauvin Arnoux
P01298036

Transport bag No. 5, small, for 5000 series multimeters

Delivery time upon request

€78.00

About the Manufacturer

Chauvin Arnoux

Chauvin Arnoux stands for highest quality and innovative, highly reliable test equipment in the fields of electrical safety testing, measurement of electrical quantities, power measurement, energy and fault analysis.
