Chauvin Arnoux P01160591 | CA8336 network analyzer 5x V and 4x I inputs without current clamps

Manufacturer number: P01160591

Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Chauvin Arnoux P01160591
Ready to ship in 5 to 10 business days

€4,894.00

plus VAT. €5,823.86 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

Power and energy analyzer CA8336 from Chauvin Arnoux with 5 voltage and 4 current inputs.

  • Number of measuring channels: 4x U / 4x I
  • Number of inputs: 5x V / 4x I
  • Voltages: TRMS AC + DC up to 1000 V.
  • Currents: TRMS AC + DC from 5 mA to 10 kA depending on the current sensor
  • frequency
  • Services: W, VA, var, VAD, PF, DPF, cos φ, tan φ
  • Energies: Wh, varh, VAh, VADh, BTU, TEP, toe, Joule
  • Harmonics of rank 0 to 50, phase, expert mode
  • Transients: up to 210
  • Flicker (Pst et Plt)
  • Inrush with waveform over a period of> 10 minutes
  • TrueInrush function
  • Recording of selected parameters over a period of 2 weeks to several years (depending on the sampling interval)
  • 10,000 alarms in 40 different types
  • Peak detection
  • Vector representation (vector diagram)
  • Currently available in 27 languages
  • IP53 / IK08
  • USB interface
  • IEC 61000-4-30 class B
  • Dimensions / weight: 240 x 180 x 55 mm / 1.9 kg
  • Optional: large selection of current sensors / clamps for currents from 5 mA to 10 kA.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

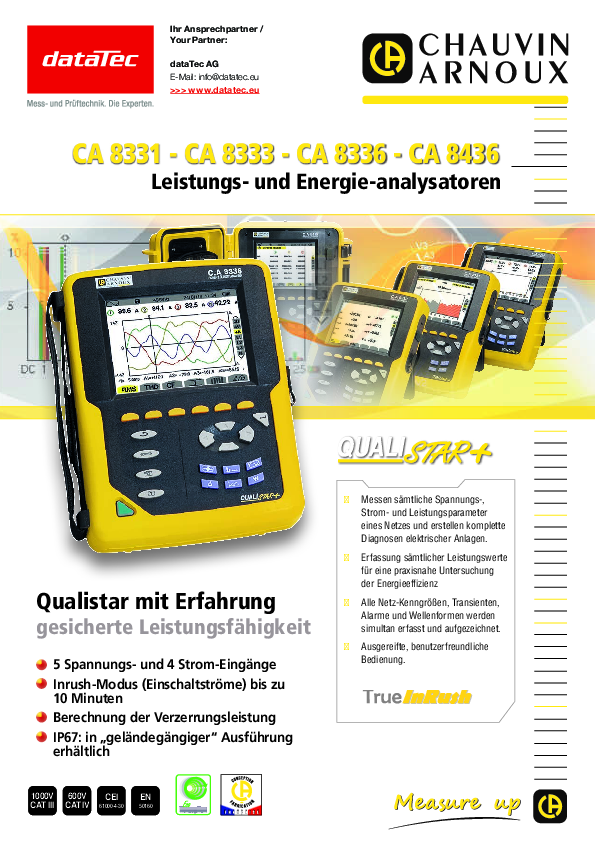

Datasheet
pdf | 2.17 MB

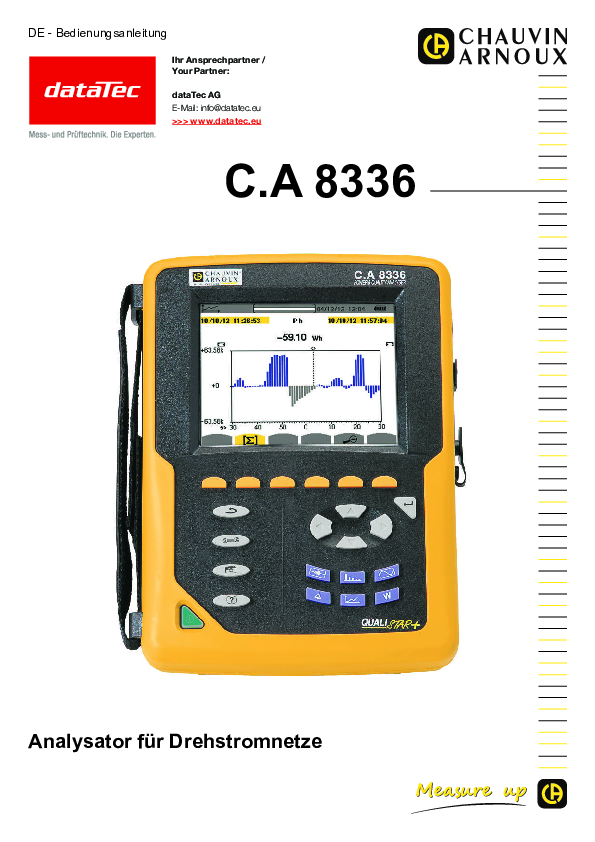

Userguide
pdf | 6.00 MB

Description

P01160591 | CA8336 network analyzer 5x V and 4x I inputs without current clamps

All parameters at a glance: With the Qualistar + CA 8336, monitoring and maintenance services for industrial, commercial or administrative buildings can quickly get an overview of the most important features of network quality. The range of functions of this power and energy analyzer makes it the ideal device for preventive maintenance and troubleshooting, and it can also be used to easily create complete energy balances for a system.
The CA 8336 has the functions Inrush and TrueInrush for the dimensioning of electrical systems and for the detection of switching errors.

The device is very handy and compact and also offers many calculated values and processing functions. The CA 8336 has 4 measuring channels for voltages and 4 measuring channels for currents and it simultaneously records and saves all measured parameters, the transients, the alarms and the waveforms.

When connected, the device automatically detects the current sensors used. Different current sensors can even be used at the same time and the measurement data can always be read directly by setting the transformer ratios.

The Qualistar + convince with user-friendliness on site:

  • direct access to the main functions (configuration ....)
  • direct access to the measurements (harmonics, flicker ...)
  • Voltage and current inputs marked by colored rings
  • Large TFT color screen with optimal readability
  • 13 hours of battery operation

The numerous measuring and monitoring functions make the Qualistar + CA 8336 a very versatile device. It is suitable for voltages up to 1,000 V in CAT III and 600 V in CAT IV.

Software: The measurement results of the Qualistar series can be evaluated with two software: PAT is available as standard and DataView® as an option. With them, the user can configure the devices, transfer, process and analyze measurement data. In addition, DataView® offers the possibility of creating standards-compliant reports on the voltage quality.

Special accessories: With the ESSAILEC measuring cable, tests can be carried out on meters, on built-in protective relays or on secondary circuits of voltage or current transformers without interrupting the power supply.

All Qualistar + is supplied with a set of colored rings / pins, which can be used to color-code the measuring lines and inputs depending on the country requirements or personal taste.
