Chauvin Arnoux CA6117 | Installation tester, VDE 0100/0105, FI / RCD with B / B +, power, harmonic (P01145460)

Name: CA6117 | Installation tester, VDE 0100/0105, FI / RCD with B / B +, power, harmonic (P01145460)
Brand: Chauvin Arnoux
SKU: P01145460
Price: 2161.0 EUR
Availability: OutOfStock

Manufacturer number: P01145460

Ready to ship in 5 to 10 business days

€2,161.00

plus VAT. €2,571.59 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Chauvin Arnoux P01145460 | Multifunction tester CA 6117 for the installation test.

Testing according to international standards: DIN VDE 0100-600 / DIN VDE 0105-100 / DIN VDE 0413, EN 61557, IEC 60364-6, ÖVE / ÖNORM E 8001, NIN / NIV ...
Reliable and simple connection technology thanks to the context help for each individual function, which also contains connection diagrams
Suitable for all network systems: TT, TN or IT
Testing of RCD / FI type AC, A, B
Safety table integrated for a quick reading of the results on the device
A Li-ion battery gives the device increased autonomy
Measurements: voltage, current with pliers, power, waveforms and harmonics
Measurement of the voltage drop for correct dimensioning of the conductor cross-section
Loop measurement, resolution 1 mΩ
3 storage level

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

All-current sensitive RCDs type B, B+:	Yes
Article number:	P01145460
Automatic test sequence:	No
Check residual voltage:	No
Counter start-up:	No
DIN VDE 0100 / IEC 60364-6:	Yes
Dimensions (L x W x H) (mm):	128 x 280 x 190
Insulation measurement 50V:	Yes
Insulation measurement 100V:	Yes
Insulation measurement 250V:	Yes
Insulation measurement 325V:	No
Insulation measurement 500V:	Yes
Insulation measurement 1000V:	Yes
Interfaces:	USB
Mobile:	Yes
Model:	Chauvin Arnoux CA6117 inkl. ICT Software
Rotating field direction:	Yes
Selective, SRCDs, PRCDs, type G/R:	No
Software included:	Software ICT
Stationary:	No
Touch Display:	No
Voltage drop:	Yes
Warranty (years):	2
Weight (kg):	2.2
e-Mobility (prepared):	Yes

Description

CA6117 | Installation tester, VDE 0100/0105, FI / RCD with B / B +, power, harmonic (P01145460)

The CA 6117 is the UNIVERSAL DEVICE for checking electrical systems in accordance with national and international standards (IEC 60364-6, NF C 15-100, VDE 100, XP C 16-600 etc.) It combines advanced design, ergonomics, simple operation, performance , Speed and precision in one device.
The device, which is suitable for all types of neutral conductor systems (TT, TN, IT), is ideal for a wide range of applications: industry, service sector, residential sector.

Ergonomics: The robust and compact CA 6117 is characterized by a sophisticated design with fast and practical commissioning. All results are clearly displayed on the large colored LCD graphic display with backlighting.
A rotary switch on the front of the device enables direct access to all functions. Numerous sound signals and displays allow a quick, standard interpretation of the results. Context help for each function guides the user systematically step by step or only when necessary through the procedures. Up to 1000 measurements can be saved in the device memory. The CA 6117 is equipped with a USB connection via which the data can be output.

Measurements: The good performance of the CA 6117 offers excellent stability of the measurements - even in a disturbed industrial environment. The device has all the measurements required to control an electrical system: continuity, resistance, insulation, earthing and selective earthing measurement, loop impedance, fault currents type A and AC. In addition, the CA 6117 enables the measurement of voltage, frequency, current using pliers, active power, harmonics and the rotating field direction.
Even better: A fuse module has been integrated into the device, which enables measurements on type B residual current devices (RCD). The voltage drop can also be measured with this.

Lieferumfang

1 installation tester with transport bag
1 power adapter / charger type 2
1 Li-Ion battery pack
1 USB cable A / B 1.80 m with ferrite
1 3-pin test lead with 3 safety test leads (red, blue and green)
3 test probes Ø 4 mm (red, blue and green)
3 alligator clips (red, blue and green)
2 safety measuring leads 3 m (angled-straight, red and black), 1 3-pole Euro power cord
1 2-pole Euro power cable
1 remote control probe
1 wrist strap
1 screen scratch protection film (already attached)
1 shoulder strap for hands-free operation (4 points)
1 ICT software for data export on CD-ROM
6 operating instructions on CD (1 per language)
1 safety data sheet (20 languages)

Accessoires (18 products )

Chauvin Arnoux P01102017

Earthing measurement set consisting of 2 15m earth electrodes for CA611x

Ready to ship in 5 to 10 business days

€107.00

Chauvin Arnoux P01102018

Earthing measuring set consisting of 1 earth electrode 30m for CA611x

Ready to ship in 5 to 10 business days

€101.00

Chauvin Arnoux P01102094

Screen protectors, 3 pieces for CA 6116

Delivery time upon request

€40.00

Chauvin Arnoux P01102095

Dataview operating software for CA measuring and testing devices

Ready to ship in 5 to 10 business days

€662.00

Chauvin Arnoux P01102130

Charging holder Li-Ion for CA6116N, CA6117

Delivery time upon request

€106.00

Chauvin Arnoux P01295094

2 safety measuring lines 3m, for CA6113 angled-straight, red and black

Ready to ship in 5 to 10 business days

€101.00

Chauvin Arnoux P01298057

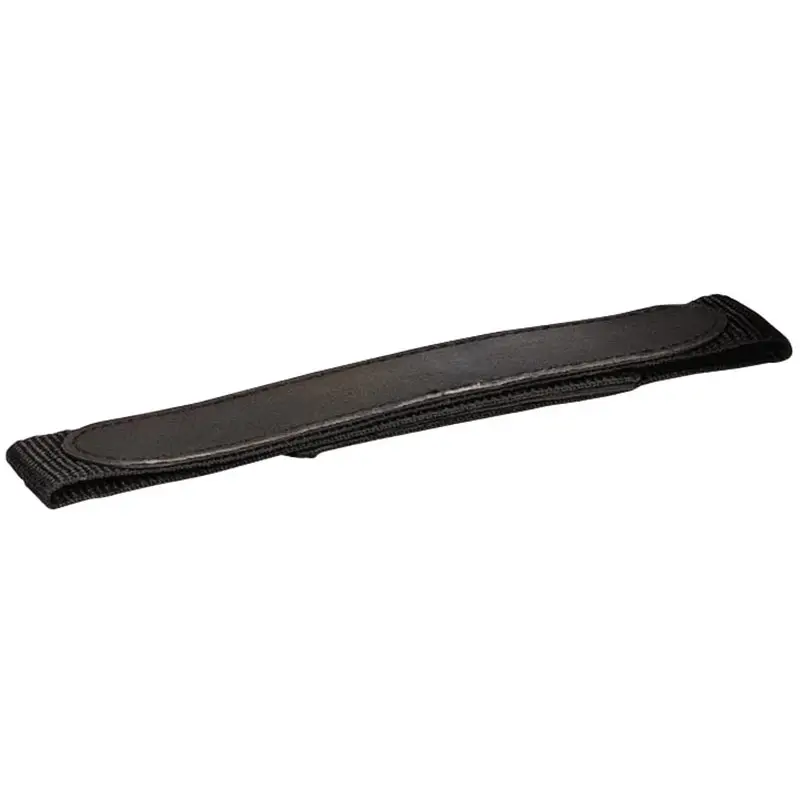

Carrying loop for CA6113
