Chauvin Arnoux CA 6161 | Machine tester / multitester, 3 kV, according to VDE0113 (P01145811)

Name: CA 6161 | Machine tester / multitester, 3 kV, according to VDE0113 (P01145811)
Brand: Chauvin Arnoux
SKU: P01145811
Price: 4613.0 EUR
Availability: OutOfStock

Manufacturer number: P01145811

Delivery time upon request

€4,613.00

plus VAT. €5,489.47 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Chauvin Arnoux P01145811 | CA 6161 Multitester, VDE 0113, 3 kV, 1,000 MΩ, 0.1 A, 0.2 A, 10 A.

Display: 5 inch color touch screen, 800 x 480 px
Voltage test: up to 3,000 V AC
Insulation measurement: 100 V / 250 V / 500 V / 1,000 V
Max. insulation measurement: 1,000 MΩ
Continuity test: 0.1 A / 0.2 A / 10 A (voltage drop)
Memory: 100,000 exams
Communication: 1 x USB-B / 2 x USB-A / WIFI
Interfaces: START / STOP foot switch, DOOR Open, HV test pistol trigger, 4 warning lamps, barcode reader, RFID reader, sticker printer
Dimensions: 407mm x 341mm x 205mm
Weight: 16kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

CA 6161 | Machine tester / multitester, 3 kV, according to VDE0113 (P01145811)

The Chauvin Arnoux Multitester CA 6161 is perfectly suited for testing and certifying the electrical safety of machines within the framework of the VDE 0113 / EN 60204-1 standard for checking conformity during the final inspection, for recurring tests and for maintenance work.

The CA6161 is therefore the ideal companion for manufacturers of electrical machinery and equipment, industrial maintenance companies, after-sales service companies for repairs and conformity tests, test laboratories and technical training centres.

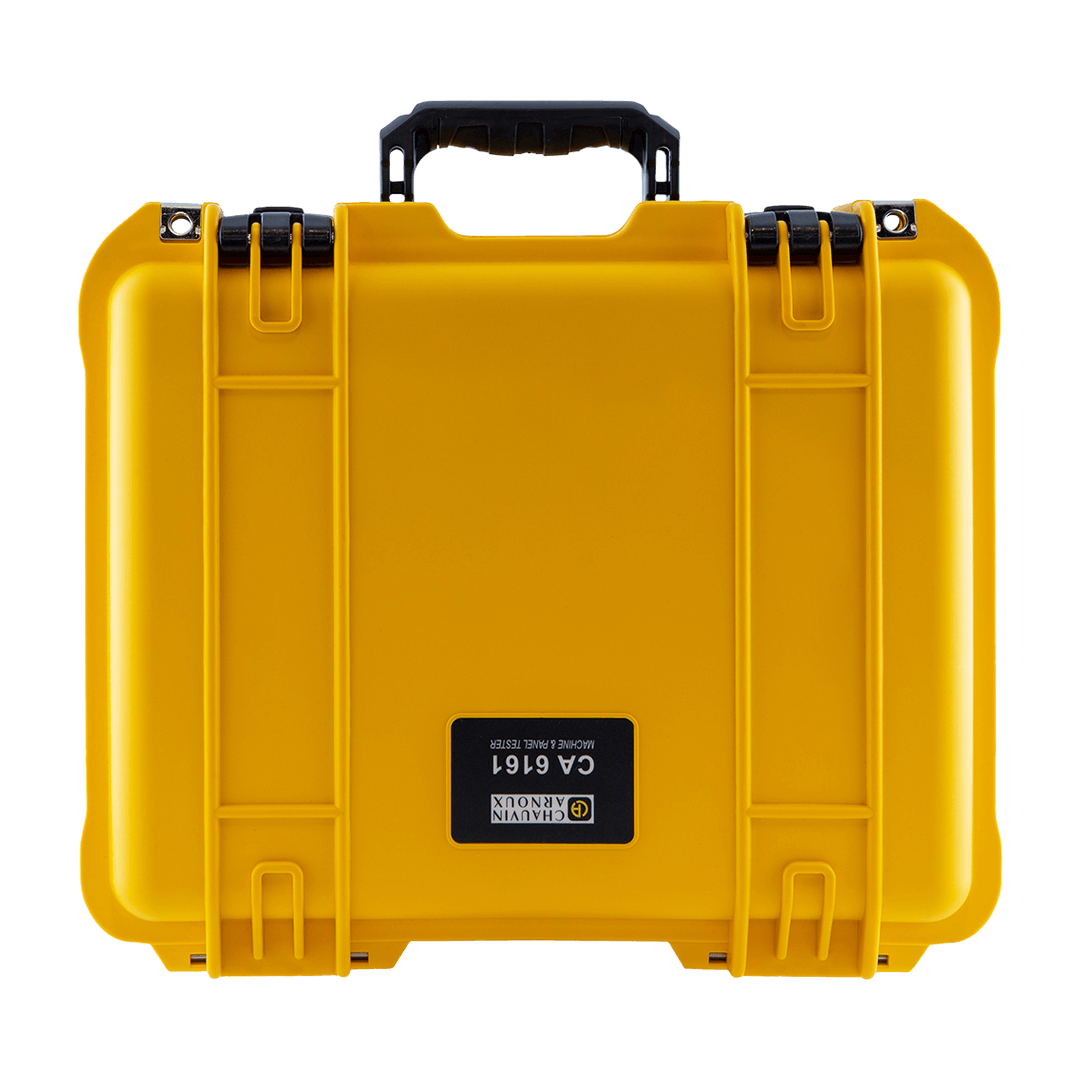

The multitester is also designed for harsh environments and is supplied in a robust, yellow hard-shell case. The large, illuminated touchscreen can also be easily operated with gloves. The four express command keys allow you to access the following functions at any time: print a measurement on the sticker printer, get help for the current function, return to the main screen and return to the previous menu.

The CA 6161 stores up to 100,000 tests. A PC software transmits the test data via WLAN or USB and is used for analysis and reporting.

Product features:

Tests using the rules and standards
User definable automatic sequences AutoScript
Color touchscreen usable with gloves
Continuity test 2- or 4-wire measurement, 0.1 A, 0.2A, 10 A, voltage drop ∆ U
Pass/Fail labels are automatically printed (printer sold separately)
Interfaces for barcode, RFID, remote control and lamps
Stores up to 100,000 exams
Insulation test 1 GΩ
Dielectric voltage test 3 kV
Testing of RCD / FI type A, AC, B, B+, F, EV
loop impedance and line impedance
Direct leakage current measurement
Differential leakage current measurement (with optional current clamp G72)
Performances in single-phase or three-phase networks
Determination of the phase sequence
discharge time
1 x USB-B and 2 x USB-A
WiFi communication
PC-based analysis and reporting software
Update of the built-in software via USB stick
