CAENels CT-BOX-200 | Ammeter 7.5 digits, incl.current converter 200A Ethernet, USB, RS232

Manufacturer number: CT-BOX-200

CT-BOX-200
CT-BOX-200
CT-BOX-200
CT-BOX-200
CT-BOX-200
CT-BOX-200
Delivery time upon request

€5,094.00

plus VAT. €6,061.86 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Scope Related Articles

CAENels CTBOX200 | Ammeter 7.5 digits, incl.current converter 200A with Ethernet, USB, RS232.

  • Current measurement up to 200 A.
  • Current transformer CT-200 is included and is calibrated with the CT-BOX
  • Digital interface: Ethernet, USB, RS232
  • 7 ½ digit display
  • Temperature coefficient: <1ppm / K
  • Standard accuracy <0.01%
  • Accuracy: <0.005% (optional with “High-Accuracy Calibration”)
  • Linearity: <25 ppm / full scale
  • Long-term stability: <10 ppm / full scale
  • Resolution: 24 bit
  • Sampling frequency: variably adjustable from 0.1 Hz to 100 kHz
  • Configurable measurement data acquisition with microSD flash memory
  • Trigger input / output and alarm output
  • External temperature sensors
  • Display for showing the current measurements
  • LED displays for: Mains voltage ok, current transformer connected, status, write / read SD memory, measurement data acquisition active
  • One height unit in a 19 inch rack, half rack width
  • Integrated fanless AC / DC power supply
  • Dimensions: length 180 × width 220 × height 41 mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

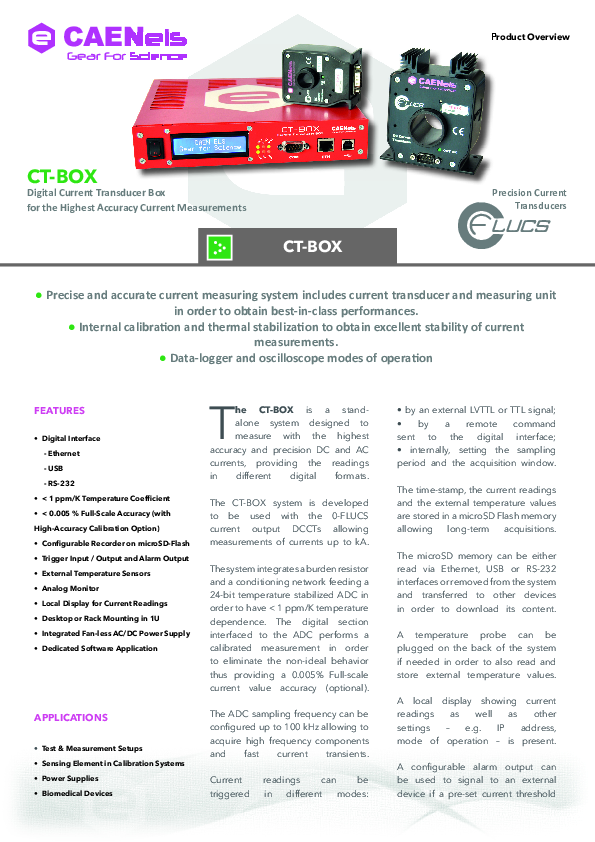

Datasheet
pdf | 0.73 MB

Description

CT-BOX-200 | Ammeter 7.5 digits, incl.current converter 200A Ethernet, USB, RS232

The CT-BOX is a measuring system for the measurement of direct and alternating currents with high accuracy and precision, whereby the measured values are made available in various digital formats. The CT-BOX system was developed for use with CARNels current transformers, which enable measurements of currents up to kA.

A load resistor and a conditioning network are integrated in the system, via which a temperature-stabilized 24-bit ADC digitizes the measured value from the current transformer. Overall, this arrangement achieves a temperature dependency of less than 1 ppm / K. With the digital circuit and the ADC, a calibrating measurement is carried out in order to compensate for non-ideal behavior. This achieves a current measurement accuracy of 0.005% (full scale). The ADC sampling frequency can be configured up to 100 kHz, which can detect high-frequency current peaks and fast current transients.

Current measurement values can be triggered by different trigger modes:

  • By an external LVTTL or TTL signal (hardware trigger)
  • By a remote command that is sent to the digital interface (software trigger)
  • Through device-internal setting of the sampling period and the acquisition period (mixed trigger)

The time stamp, the current measured values and the outside temperature values are stored in a microSD flash memory, which also enables long-term data acquisition.

The SD flash memory can either be read via Ethernet, USB or RS-232 interfaces, or it can be removed from the system and plugged into another device to download the content.

If necessary, a temperature sensor can be connected to the rear of the system in order to measure and save external temperature values.

The device display shows the current measured values and other settings. A configurable alarm output can be used to signal an external device when a preset current threshold is exceeded. An integrated auto-zero function enables the compensation of offset measuring currents.

The CT-BOX can be connected directly to the power supply and has a low-noise AC / DC power supply with a nominal output voltage of +/- 15 V. This integrated power supply supplies the active current transformer and thus offers the required measuring accuracy of <0.001% at 100 kHz bandwidth.

The very compact design (1 height unit and a width of 9 inches) allows the device to be used in the laboratory or two devices in a 19 “rack. Appropriate brackets can be ordered separately.

Note:

  • The CT-Box and the CT-200 current transformer are calibrated together to achieve high accuracy.
  • Measurements are possible with another current transformer of the same nominal current class, however the accuracy is not specified here.

Lieferumfang

included and is calibrated with the CT-BOX
  • Digital interface: Ethernet, USB, RS232
  • 7 ½ digit display
  • Temperature coefficient: <1ppm / K
  • Standard accuracy <0.01%
  • Accuracy: <0.005% (optional with “High-Accuracy Calibration”)
  • Linearity: <25 ppm / full scale
  • Long-term stability: <10 ppm / full scale
  • Resolution: 24 bit
  • Sampling frequency: variably adjustable from 0.1 Hz to 100 kHz
  • Configurable measurement data acquisition with microSD flash memory
  • Trigger input / output and alarm output
  • External temperature sensors
  • Display for showing the current measurements
  • LED displays for: Mains voltage ok, current transformer connected, status, write / read SD memory, measurement data acquisition active
  • One height unit in a 19 inch rack, half rack width
  • Integrated fanless AC / DC power supply
  • Dimensions: length 180 × width 220 × height 41 mm

    • Accessoires (4 products)

    CT-BOX-MB
    CAENels
    CT-BOX-MB
    Delivery time upon request
    €104.00
    CT BOX CALIBRATION
    CAENels
    CT BOX CALIBRATION
    Delivery time upon request
    €737.00
    CT-200
    CAENels
    CT-200
    Current transformer, 200A, 0-FLUCS, DC- 200kHz, current output with DB-9 connection,
    Delivery time upon request
    €503.00
    CT-200V
    CAENels
    CT-200V
    Current transformer, 200A, 0-FLUCS, DC- 100kHz voltage output with DB-9 connection
    Delivery time upon request
    €677.00
