CAENels CT-13 | Current transformer, 13A, 0-FLUCS, DC- 500kHz current output for PCB mounting

Manufacturer number: CT-13

CT-13
Delivery time upon request

€452.00

plus VAT. €537.88 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

CAENels CT13 | Current transformer, ± 13A, 0-FLUCS, current output DC- 500kHz, for PCB mounting.

  • Current-transformer ratio: 1: 250
  • Maximum primary-side current: ± 13 A
  • Monitors AC and DC currents
  • Secondary output: current output
  • Very good linearity
  • Closed-loop detection
  • Galvanic isolation from the primary side
  • Low temperature drift: 0.5 ppm / K
  • High bandwidth: 500 kH
  • High precision
  • Flammability according to UL94 V-0
  • LED indicates correct operation
  • Version for PCB assembly
  • Connections: 16 pins for PCB mounting (through-hole)
  • Supply voltage: (± 6%): ± 15 V
  • Dimensions: length 66 × width 68 × height: 48 mm
  • Weight: 300 g

Applications:

  • Power supplies, especially for current-controlled power supplies
  • Measuring element in calibration systems
  • Biomedical devices
  • Test and measurement devices

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

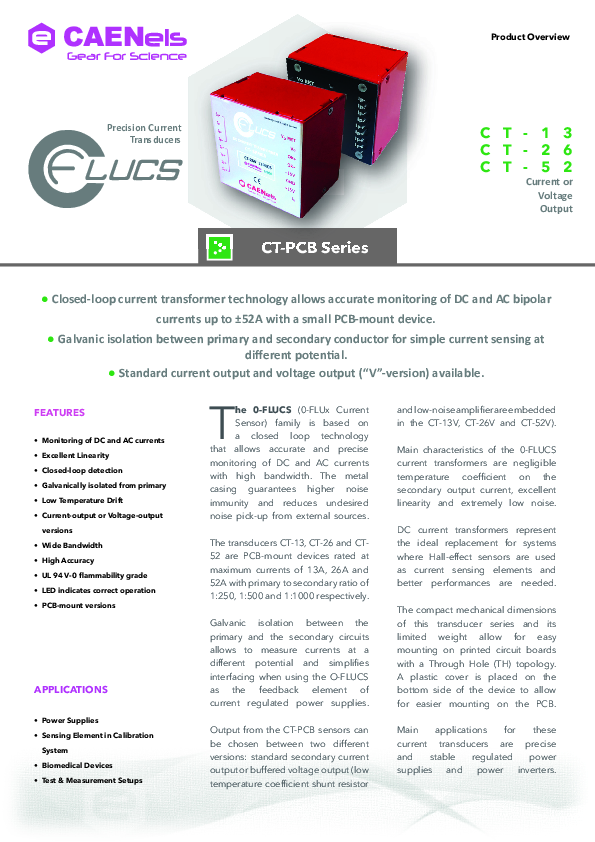

Datasheet
pdf | 0.69 MB

Description

CT-13 | Current transformer, 13A, 0-FLUCS, DC- 500kHz current output for PCB mounting

0-FLUCS Current Transmitter / Current Converter for PCB assembly with closed-loop technology for high-precision measurement of bipolar AC and DC currents. For monitoring and measuring DC and AC currents (up to 500 kHz bandwidth) with excellent linearity and extremely low temperature drift of 0.5 ppm / K. This fully encapsulated version prevents radiation as well as radiation from neighboring assemblies and thereby improves noise immunity. The primary and secondary side are electrically isolated. The current transformer can therefore be used at different potential levels for exact current measurement.
