CAENels CT-100-C | Current transformer, 100A, 0-FLUCS, DC- 500kHz, current output with DB-9 connection

Manufacturer number: CT-100-C

CAENels CT-100-C
Delivery time upon request

€480.00

plus VAT. €571.20 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

CAENels CT100C | Current transformer, 100A, 0-FLUCS, DC- 500kHz, current output with DB-9 connection. Ideal in combination with power meters / power meters for measuring large currents.

  • Max. Conductor diameter: 16 mm
  • Converter ratio: 1: 1000
  • Input max. DC: ± 100 A
  • Input max. AC RMS: 71 A.
  • Polarity: bipolar
  • Bandwidth: DC - 500 kHz
  • Temperature coefficient: <0.5 ppm / K
  • Linearity: <3 ppm
  • Current output max. ± 100 mA
  • Output: DB-9 connector
  • Power supply: ± 15 V
  • Dimensions: 45 x 57 x 75 mm
  • Weight: 250 g

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

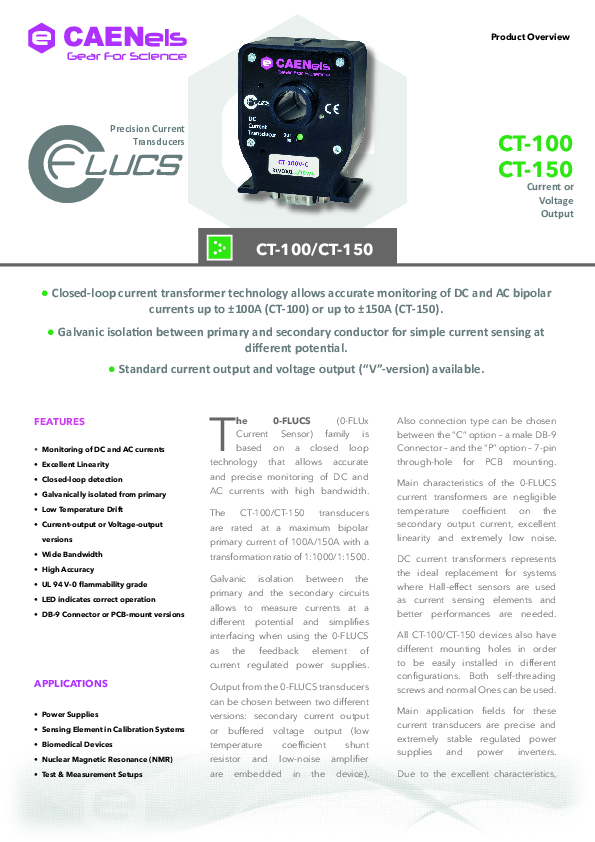

Datasheet
pdf | 0.71 MB

Description

CT-100-C | Current transformer, 100A, 0-FLUCS, DC- 500kHz, current output with DB-9 connection

0-FLUCS current transducers / current transformers in closed-loop technology for high-precision measurement of AC and DC currents. For monitoring and measuring DC and AC currents (up to 500 kHz bandwidth) with excellent linearity and extremely low temperature drift.
