Chauvin Arnoux P01127014 | CA6424 earthing meter, 2 pole & 3 pole earth resistance measurement up to 50 kΩ

Manufacturer number: P01127014

Chauvin Arnoux P01127014
Ready to ship in 5 to 10 business days

€717.00

plus VAT. €853.23 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

Chauvin Arnoux CA 6424 | Earthing meter, resistance 2 poles, earthing resistance 3 poles up to 50 kΩ (P01127012).

  • Display: Illuminated LCD Custom with 206 segments
  • Voltage measurement: 0.1… 600 V
  • Resistance measurement 2-pole: 0.05 Ω… 50 kΩ
  • Earth resistance measurement 3-pole: 0.5 Ω… 50 kΩ
  • Measuring mode: individually or continuously
  • Resistance measurement of the RH rod
  • Voltage measurement USE
  • Current measurement with G72 terminal (optional): 0.5 mA… 60 A
  • Power supply: 6 x NiMH batteries
  • Operating time:> 1500 3P earth measurements at 100 Ω
  • Dimensions: 223 mm x 126 mm x 70 mm
  • Weight: 1 kg
  • Degree of protection IP / IK: IP 65 according to IEC 60529 / IK 04 according to IEC 50102
  • Standards / electrical safety: EMC: IEC 61326-1; IEC 61010-2-030 / 600 V CAT IV
  • Compliance with IEC 61557: IEC 61557-1 and IEC 61557-5

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.71 MB

Description

P01127014 | CA6424 earthing meter, 2 pole & 3 pole earth resistance measurement up to 50 kΩ

The Chauvin Arnoux earthing meter CA 6424 allows you 2-pole resistance measurements and 3-pole earth resistance measurements up to 50 kΩ. The earthing tester measures voltage up to 600V and the resistance of the RH rod. The CA 6424 has an automatic measurement stabilization. The CA6424 also offers help for placing the auxiliary earth - calculating the mean 52% / 62% / 72% and the deviation. Leakage currents are measured by the earthing meter from 0.5 mA.

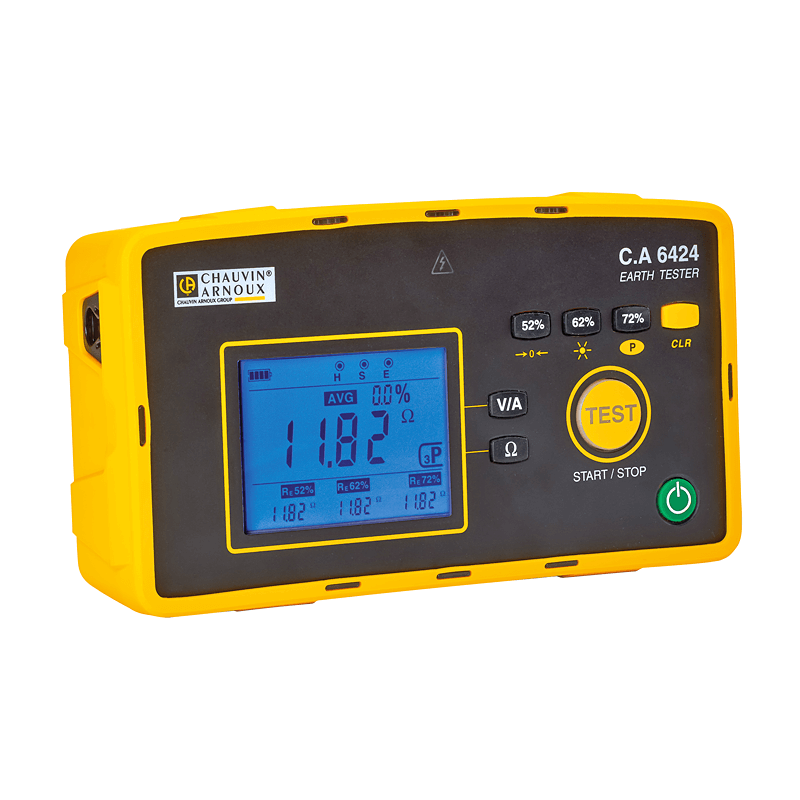

The CA 6424 has a backlit triple LCD display that provides excellent readability. A warning lamp indicates the presence of dangerous voltage, while the flashing NOISE symbol indicates the presence of interference voltage.

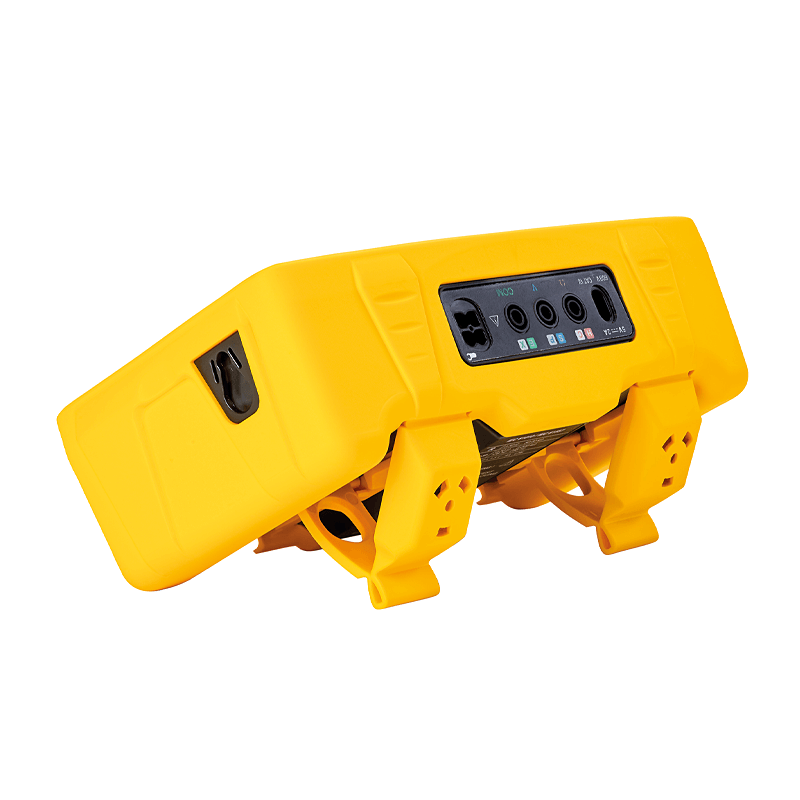

The waterproof and robust CA 6424 earthing tester is suitable for intensive field use. The connections are clearly marked with text and color coding - connection errors are virtually excluded.

All measurements and functions are located directly on the front of the device and can also be operated with gloves.

The batteries can be recharged via the power supply, USB connection or 12 V vehicle socket.

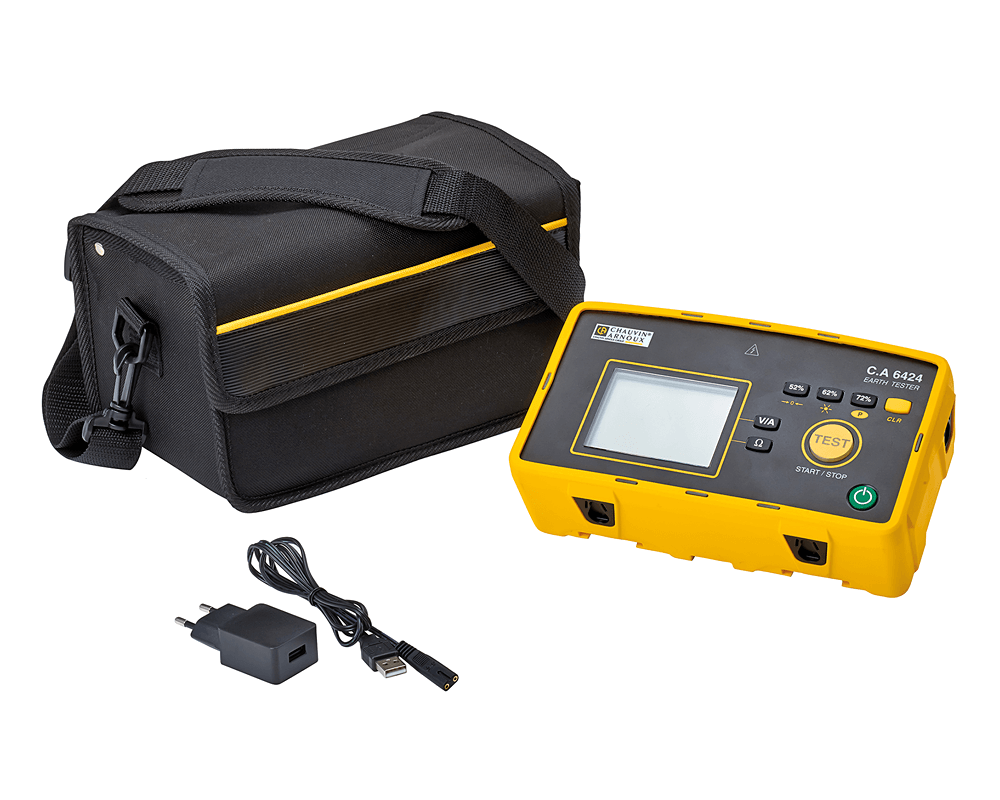

Lieferumfang

  • Earthing tester CA6424
  • 1 transport bag
  • 6 NiMH batteries
  • 1 USB 2A power supply
  • 1 connection cable USB micro shaver
  • 1 quick guide multilingual
  • 1 safety data sheet
  • 1 battery information sheet
  • 1 test report with measurement results
  • WEB / QR code for downloading the operating instructions
