Keysight B2981B | Femto- / picoammeter 6.5 digits, 0.01 fA - 20 mA

Manufacturer number: B2981B

Keysight B2981B | Femto / pico ammeter, from 0.01 fA to 20 mA, 6.5 digits.

  • Effective measurement resolution: 0.01 fA
  • Current measuring ranges: 2 pA to 20 mA
  • Graphic, color display with 6.5 digit numerical display
  • Smallest supply voltage: <20 µV in the smallest current measuring range
  • Up to 20,000 measurements / s
  • Measured value memory for up to 100,000 measurements
  • Graphical representation of the measured values (curve progression over time), numerical representation of the measured values, histograms, statistics, trend analysis
  • Simple and automatic settings for optimal measuring range selection and for the measuring time window
  • Optional: Test setup Integrity Checker function for identifying noise sources in the test setup
  • Interfaces: USB on front panel and back panel, LAN, GPIB, LXI
  • Via USB front panel interface: measurement data storage, storage and recall of device settings
  • Free PC software for device control
  • Dimensions: Height: 88 mm (2U), width: 213 mm (1/2 width), depth: 348 mm
  • Weight: 4.3 kg
  • Guarantee: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Description

B2981B | Femto- / picoammeter 6.5 digits, 0.01 fA - 20 mA

The femto / pico ammeter of the B2900B series is unique, with which you can safely measure up to 0.01 fA (f femto = 10 to the power of -15). With additional properties, this femto ammeter leaves all other competing models far behind. With a resolution of 0.01 fA (femto ampere), especially with the new technologies in semiconductor technology, nanotechnology and when researching new insulation materials in material technology, very small currents can be reliably measured and detected.

A characteristic of this is that this device has an extremely low level of noise so that such small currents can be measured at all. With the approx. 11 cm (diagonal) colored graphic display, measurement curves or histograms can be displayed in order to estimate the measured values or to show trends. Of course, the measured values can also be displayed numerically. Statistics can also be applied to the recorded measured values without the need for a PC.

With such low currents, the measuring lines and the measuring setup are also of special importance. The device supports the fact that the measuring cables, measuring connections and measuring receptacles also meet the requirements for a reliable measurement. The Setup Integrity Checker software compares the noise level of different cables and measurement recordings. The noise sources in the measurement setup can then be identified and eliminated.
In addition, the device offers additional measuring aids that enable unskilled personnel to carry out correct measurements.

Areas of application for the B2980B series:

  • Materials research (biomaterials, ceramics, elastomers, films, dielectrics, electromechanical materials, magnetic materials, graphites, metals, organic materials, nano-materials, polymers, semiconductors, etc.)
  • Electronic components (capacitances, resistors, diodes, sensors, transistors incl. TFT and CNT, optoelectronic components, solar cells, etc.)
  • Electronic and non-electronic systems (ion beam, electron beam, sensitive sensor systems, particle measurements, embedded systems, etc.)

Accessoires (27 products )

Keysight N1411A
Interlock cable, 4 pin terminal circular plug, 1.5 m
Delivery time upon request
On Request

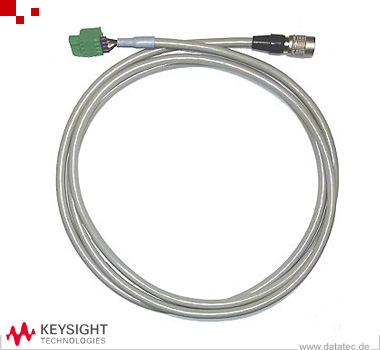

Keysight N1411B
Interlock cable, 4 pin terminal circular plug, 3 m
Delivery time upon request
On Request
Keysight N1413A
High resistance meter fixture adapter
Delivery time upon request
On Request
Keysight N1415A
Cable, triax on alligator clips, 1.5 m 200 V
Delivery time upon request
On Request
Keysight N1416A
Triax bulkhead connector, 200 V
1 in stock. Ready to ship in 1 business day
On Request
Keysight N1416B
Triax bulkhead connector, 500 V
Delivery time upon request
€580.00
Keysight N1417A
Open cap for triaxial connector
Delivery time upon request
On Request
Keysight N1418A
Lithium-ion battery pack for B2983A / B2987A
Delivery time upon request
On Request
Keysight N1424C
Resistivity Cell for N1413 with B2980 series, electrodes with a diameter of 26, 50 and 76 mm
Delivery time upon request
On Request
Keysight N1425A
Low noise measuring lead for N1413 with B2980 series, length: 1.5 m
Delivery time upon request
On Request
Keysight N1425B
Low noise measuring lead for N1413 with B2980 series, length: 3 m
Delivery time upon request
On Request
Keysight N1426A
Pin probes for N1425 test cables
Delivery time upon request
On Request
Keysight N1426B
Soldering sockets for N1425 test cables
Delivery time upon request
On Request
Keysight N1426C
Alligator clips for N1425 test cables
Delivery time upon request
On Request
Keysight N1412A
Triaxial cable, 500 V, 1.5 m
Delivery time upon request
€550.00
Keysight N1412B
Triaxial cable, 500 V, 3 m
Delivery time upon request
€708.00
Keysight N1412C
Triaxial cable, 500 V, 6 m
Delivery time upon request
€865.00
Keysight N1254A-102
Triax (f) to BNC (m) adapter current measurement, floating DUT / sample
Delivery time upon request
On Request
Keysight N1254A-104
Triax (f) to BNC (m) adapter, current measurement, Grounded DUT / sample
Delivery time upon request
On Request
Keysight N1254A-105
Triax (f) to BNC (m) adapter for voltage measurement
Delivery time upon request
On Request
Keysight N1297A
Banana - Triax adapter for 2-wire connection (not Kelvin) for B2900 SMU
1 in stock. Ready to ship in 1 business day
On Request
Keysight N1297B
Banana - Triax adapter for 4-wire connection (Kelvin) for B2900 SMU
Delivery time upon request
On Request
Keysight N1298A
High Current Ultra Low Noise Filter (21 V / 500 mA, 10 Ohm) for Keysight B2961 / B2962
Delivery time upon request
On Request

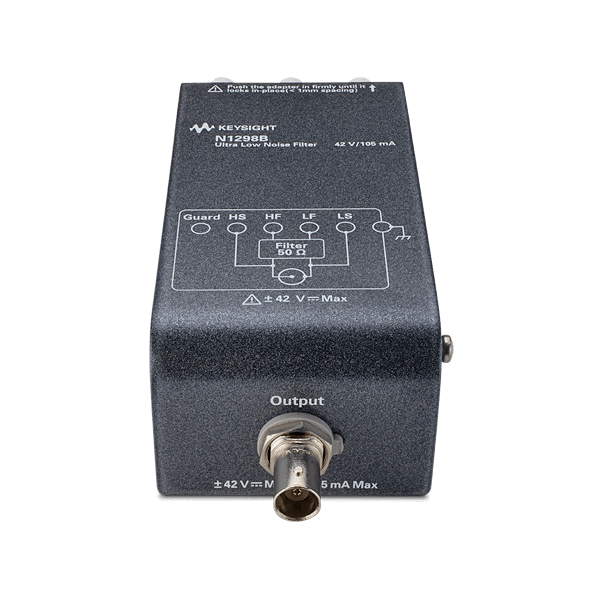

Keysight N1298B
Ultra Low Noise Filter (42 V / 105 mA, 50 Ohm) for Keysight B2961 / B2962
Delivery time upon request
On Request
Keysight N1298C
Low Noise Filter (210 V / 3 A) for Keysight B2961 / B2962
Delivery time upon request
On Request
Keysight B2981B-C3
Calibration Plan - Return to Keysight - 3 years - Calibration for B2981B
Delivery time upon request
On Request
Keysight B2981B-C5
Calibration Plan - Return to Keysight - 5 years - Calibration for B2981B
Delivery time upon request
On Request

Alternate products (3 products )

Keysight B2983B
Femto- / picoammeter 6.5 digits, 0.01 fA - 20 mA, rechargeable battery
Delivery time upon request
On Request
Keysight B2985B
Electrometer / High Resistance Meter 6.5 digits, 0.01 fA, 10 POhm, 1000 V
1 in stock. Ready to ship in 1 business day
On Request
Keysight B2987B
Electrometer / High Resistance Meter 6.5 digits, 0.01 fA, 10 POhm, 1000 V, rechargeable battery
Delivery time upon request
On Request
