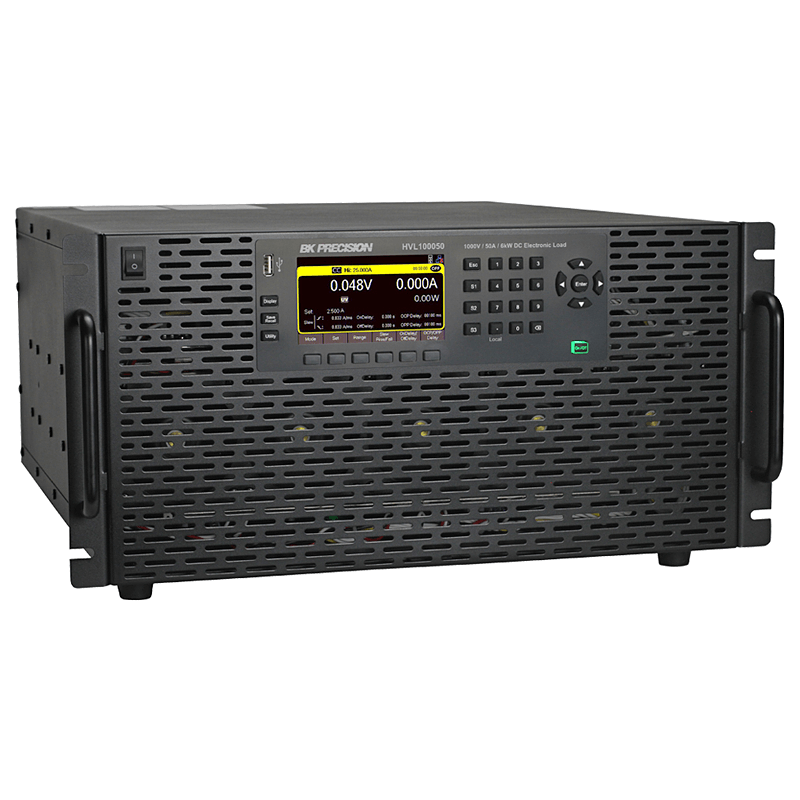

B&K Precision HVL100050 | Electronic DC Load, High-Voltage, 1000 V, 50 A, 6 KW, USB, RS-232, LAN, GPIB, HVL Series

Manufacturer number: HVL100050

HVL100050
HVL100050
HVL100050
HVL100050
HVL100050
HVL100050
Delivery time upon request

€13,200.00

plus VAT. €15,708.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision HVL100050 | Electronic DC load, high-voltage, 1000 V, 50 A, 6 kW, USB, RS-232, LAN, GPIB, HVL series

Produktmerkmale:

  • Maximale Eingangsspannung: 1000 V
  • Maximaler Eingangsstrom: 50 A
  • Maximale Eingangsleistung: 6 kW
  • Betriebsmodi: CC (Konstanter Strom), CV (Konstante Spannung), CR (Konstanter Widerstand), CW (Konstante Leistung)
  • Minimale Betriebsspannung: 3,5 V
  • Listenmodus-Programmierung: Bis zu 100 programmierbare Schritte, 10 Programme speicherbar
  • Transient-Operation: Unterstützt kontinuierliche, Puls- und Umschaltmodi
  • Programmierbare Schutzfunktionen: OVP (Überspannungsschutz), OCP (Überstromschutz), OPP (Überleistungsschutz), UVL (Unterspannungssperre)
  • Direkte Datenaufzeichnung: Speicherung von Spannungs- und Stromdaten auf USB-Stick
  • PC-Steuerung: USB, LAN, RS232, GPIB (SCPI-kompatibel)
  • Anzeige: 4,3" LCD-Farbdisplay mit grafischer Darstellung von Messwerten
  • Formfaktor: 5U Rack-Montage
  • Abmessungen (BxHxT): 428,4 x 222 x 615 mm
  • Gewicht: 33,5 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 3.21 MB

Description

HVL100050 | Electronic DC Load, High-Voltage, 1000 V, 50 A, 6 KW, USB, RS-232, LAN, GPIB, HVL Series

The HVL series from B&K Precision is a powerful range of high voltage DC electronic loads designed for demanding test environments. With a maximum power of up to 6 kW and operating voltages up to 1000 V, this series offers high flexibility for a wide range of applications. By supporting different operating modes - CC (constant current), CV (constant voltage), CR (constant resistance) and CW (constant power) - the HVL series is ideal for complex test requirements.

Typical areas of application:

  • Testing high-voltage batteries, especially for electric vehicles (EV)
  • Testing of on-board chargers and charging stations
  • Evaluation of DC-DC-converters and high-power power supplies
  • Testing of photovoltaic systems and fuel cell systems
  • Simulation of dynamic load conditions in research and development

The HVL100050 model is a high-power DC load with a maximum input voltage of 1000 V and a maximum current of 50 A. It offers a maximum power consumption of 6 kW and is particularly suitable for applications with very high voltages and medium currents.

Differences to other variants in the HVL series:

  • The HVL100050 model offers 1000 V / 50 A with a maximum power of 6 kW.
  • The HVL600300 model offers 600 V / 300 A with the same power.
  • The HVL800150 model supports 800 V / 150 A with also 6 kW power.
  • All models can be configured for parallel operation of up to 10 units to achieve a total power of up to 60 kW.

The HVL100050 model offers a reliable and powerful solution for high voltage testing in research, development and industrial applications. With its high voltage rating, flexible programming options and extensive protection functions, it is an ideal tool for demanding test environments.
