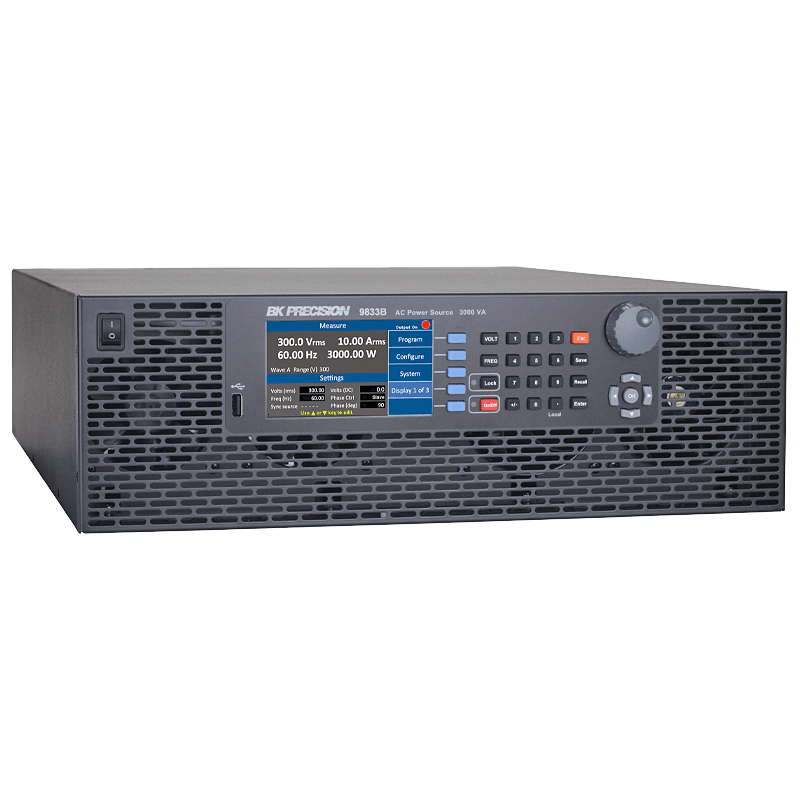

B&K Precision 9833B | Programmable AC/DC power supply unit, 3000 W, USB, RS-232, LAN, GPIB, 9830B series

Name: 9833B | Programmable AC/DC power supply unit, 3000 W, USB, RS-232, LAN, GPIB, 9830B series
Brand: B&K Precision
SKU: BK9833B
Price: 8300.0 EUR
Availability: InStock

Manufacturer number: BK9833B

Delivery time upon request

€8,300.00

plus VAT. €9,877.00 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 9833B | Programmable AC/DC power supply unit, 3000 W, USB, RS-232, LAN, GPIB, 9830B series.

Product features:

Maximum power: 3000 VA
Maximum voltage (AC): 0 - 150 V / 0 - 300 V
Maximum voltage (DC): 0 - ±212 V / 0 - ±424 V
Maximum current (rms): 30 A (at 150 V), 15 A (at 300 V)
Maximum frequency: 45 Hz to 1200 Hz (single-phase), 45 Hz to 600 Hz (three-phase)
Total harmonic distortion (THD): ≤ 0.5% at 45 Hz to 400 Hz
Measurement functions: Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, active power, crest factor
Interfaces: LAN, USB, GPIB and RS232
Supported operating modes: AC, DC, AC+DC
Protection mechanisms: Overvoltage protection (OVP), overcurrent protection (OCP), overpower protection (OPP), overtemperature protection (OTP), fan failure monitoring, output timer
Display: 4.3" color LCD display with simultaneous display of all 12 measured values
Weight: 24 kg
Dimensions (WxHxD): 420 x 132 x 560 mm

Technical Data

AC input:	1P
AC output:	1P
Article number:	BK9833B
DC output reversible:	AC Source
Dimensions (L x W x H) (mm):	560 x 420 x 132
Frequency range:	45 Hz - 1200 Hz
Grid simulation:	Yes
Interfaces:	USB, GPIB, LAN, RS-232
Mains feedback:	No
Measurement functions:	Vrms, Irms, Vdc, +Apk, -Apk, Inrush, Frequenz, Power Factor (PF), Scheinleistung, Blindleistung, Wirkleistung, Crest Factor
Model:	BK9833B
PLD Testfunction:	Yes
Power factor:	0,98
Protective devices:	OVP, OCP, OPP, OTP
Weight (kg):	24
max. Power (A):	30
max. Voltage (V):	300

Documents & Downloads

Datasheet

pdf | 2.99 MB

Description

9833B | Programmable AC/DC power supply unit, 3000 W, USB, RS-232, LAN, GPIB, 9830B series

The 9830B series from B&K Precision is a range of programmable AC power sources that combine high performance with low harmonic distortion (THD). This series supports AC, DC and AC/DC operation and is ideal for various test and simulation applications. The devices offer a maximum output power of up to 3000 VA and are equipped with extensive measurement and protection functions.

Typical areas of application:

Pre-compliance tests
Simulation of mains disturbances, voltage dips and frequency changes in accordance with IEC61000-4-11/14/28/34
Electromagnetic compatibility tests in accordance with IEC61000-3-2
Testing of consumer electronics, household appliances, industrial equipment and avionics systems
Testing of transformers, TRIACs, SCRs and passive components

The 9833B model is the most powerful variant of the 9830B series with a maximum output power of 3000 VA. It offers higher current capacities than the 9832B model and is particularly suitable for applications with higher power requirements. The voltage ranges include 0 to 150 V or 0 to 300 V (AC) and 0 to ±212 V or 0 to ±424 V (DC).

Differences to other variants of the 9830B series:

The 9833B model offers a maximum output of 3000 VA, while the 9832B is limited to 2000 VA.
Higher maximum current ratings: 30 A (at 150 V) and 15 A (at 300 V) compared to 20 A / 10 A for the 9832B.
All other functions and interfaces are identical to the 9832B model.

The 9833B model offers a powerful, versatile and reliable solution for demanding test and simulation applications in industry, research and development.
