B&K Precision 5493C | Bench Multimeter, TRMS, 6.5 Digits, USB, RS-232, LAN, 5490C Series

Manufacturer number: BK5493C

5493C
5493C
5493C
5493C
5493C
5493C
5493C
5493C
Reordered - in stock. Delivery time on request

€1,050.00

plus VAT. €1,249.50 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision 5493C | Bench multimeter, TRMS, 6.5 digits, USB, RS-232, LAN.

Technical Data

Documents & Downloads

Datasheet
pdf | 1.79 MB

Description

5493C | Bench Multimeter, TRMS, 6.5 Digits, USB, RS-232, LAN, 5490C Series

The 5493C is the high-resolution 6½-digit benchtop digital multimeter from the renowned 5490C series from B&K Precision. With an exceptional basic accuracy of 35 ppm (0.0035 %) in the DC voltage range, this device offers maximum precision for demanding measurement tasks in calibration laboratories, research, development and quality control.

The 5493C offers a wide range of measurement functions, fast data processing with up to 1000 measurements per second and graphical analysis tools such as histogram, trend chart and bar graph, making it ideal for professional applications. The dual measurement display allows the simultaneous acquisition of two measured variables (e.g. voltage and frequency).

Product features:

  • Resolution: 6½-digit
  • Basic accuracy DCV: ±0.0035 % (35 ppm)
  • Measurement functions: DCV, ACV, DCI, ACI, resistance (2-/4-wire), capacitance, frequency, temperature, diode test, continuity, DCV ratio
  • Measurement speed: up to 1000 measurements per second
  • Display: 4.3" color display with histogram, trend chart and bar graph
  • Dual measurement display: simultaneous display of two measured variables
  • Data memory: 10.000 measured values internally, incl. time/date stamp
  • Communication interfaces: USB (USBTMC), RS232, LAN (GPIB optional via model 5493CGPIB)

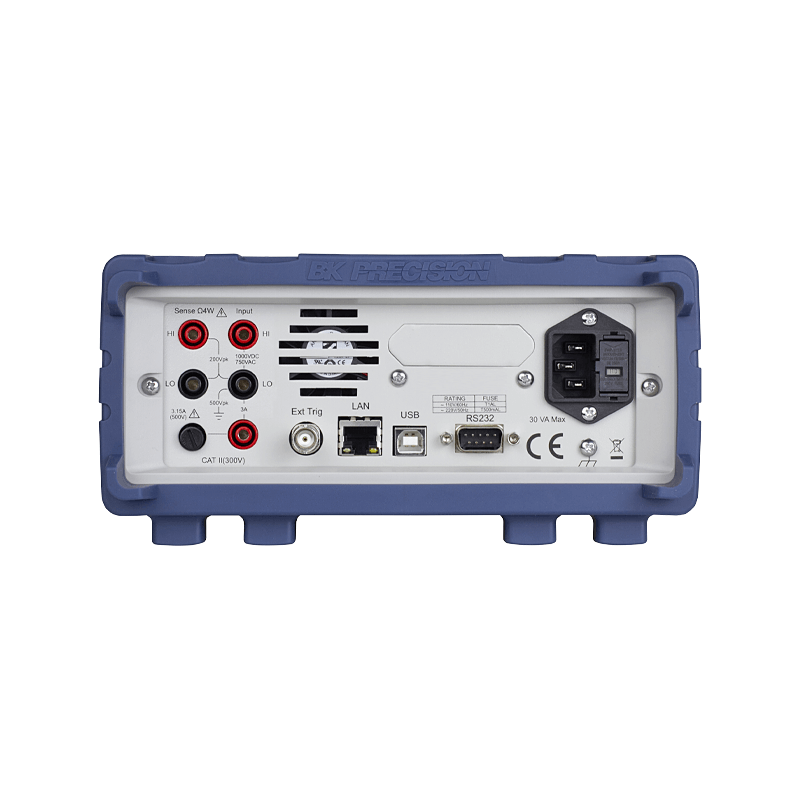

  • Rear input terminals for rack mounting
  • Dimensions (W×H×D): 225 × 100 × 355 mm | Weight: 2.5 kg

Compared to the 5½-digit variants 5492C and 5492CGPIB, the 5493C model offers a significantly higher resolution and accuracy (35 ppm instead of 100 ppm). Particularly noteworthy are the rear input terminals, which are only available on the 6½-digit devices - ideal for use in rack operation. Those who require even more comprehensive system integration can opt for the 5493CGPIB variant with GPIB interface. All in all, the 5493C is an excellent choice for anyone who wants to combine maximum precision with modern features.
