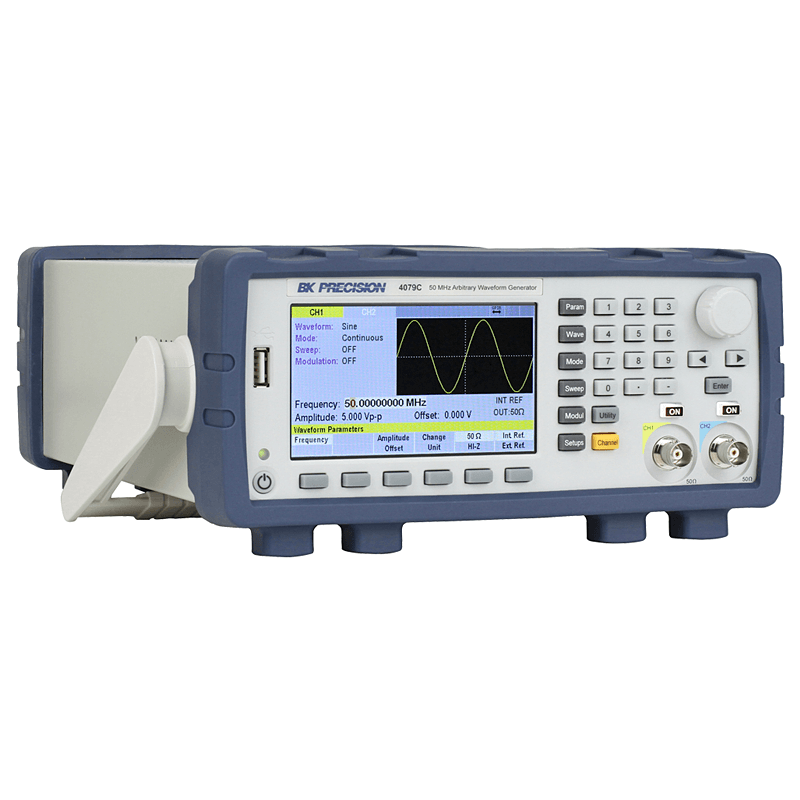

B&K Precision 4079C | Arbitrary Waveform Generator, 50 MHz, 4078C Series

Name: 4079C | Arbitrary Waveform Generator, 50 MHz, 4078C Series
Brand: B&K Precision
SKU: BK4079C
Price: 2450.0 EUR
Availability: InStock

Manufacturer number: BK4079C

Delivery time upon request

€2,450.00

plus VAT. €2,915.50 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 4079C | Arbitrary Function Generator, 50 MHz, 4078C Series.

Technical Data

Arbitrary Number of segments:	131
Arbitrary amplitude resolution:	16-bit
Arbitrary function:	Yes
Arbitrary sampling rate:	250 MSa/s
Arbitrary score:	4000000
Article number:	BK4079C
Burst:	Yes
Dimensions (L x W x H) (mm):	300 x 215 x 88
Display:	4.3-inch color LCD with IPS technology
Frequency range pulse:	1 mHz - 10 MHz
Frequency range rectangle:	1 mHz - 50 MHz
Frequency range triangle/ramp:	1 mHz - 5 MHz
Interfaces:	USB, LAN
Model:	BK4079C
Modulation types:	AM, FM, PM, PWM, FSK, BPSK
Number of channels:	2
Special features:	Überlastschutz der Ausgänge
Sweep:	Linear und logarithmisch, kontinuierlich oder auf Trigger
Waveforms:	Sinus, Quadrat, Dreieck, Rauschen, Rampe, Exponential, Gaussian, Lorentz, Haversine und benutzerdefinierte Wellenformen
Weight (kg):	2.5
max. Frequency sine (MHz):	50
min. Frequency sine (µHz):	1000

Documents & Downloads

Datasheet

pdf | 2.09 MB

Description

4079C | Arbitrary Waveform Generator, 50 MHz, 4078C Series

The 4078C series from B&K Precision includes high performance 2 channel arbitrary waveform generators with 16 bit amplitude resolution. The function generators offer versatile signal generation capabilities for a wide range of applications in electronic design, sensor simulation and signal processing. They are particularly useful for engineers and technicians who need to generate precise and customizable arbitrary and functional signals.

The Model 4079C presented here is the more powerful version within the 4078C series and offers a maximum output frequency of 50 MHz, making it an ideal choice for applications requiring higher frequencies or more complex signal analysis and simulation. In comparison, the Model 4078C offers a lower bandwidth of up to 30 MHz, while the Variant 4079C-GPIB is additionally equipped with a GPIB interface for easier integration into existing test systems.

Product features:

Maximum frequency: 50 MHz
Channels: 2
Sampling rate: 250 MSa/s
Waveform length: Up to 4 million points
Standard waveforms: Sine, square, triangle/ramp, pulse
Integrated arbitrary waveforms: Sin(x)/x, exponential ascending/descending, Gaussian, Lorentz, Haversine
Operating modes: Continuous, triggered, burst, gate
Amplitude: 0 to 10 Vpp (50 Ω), up to 20 Vpp (open circuit)
Amplitude resolution: 16 bit
Modulation: AM, FM, PM, FSK, BPSK
DC offset: ± 5 V
Jitter: < 25 ps
Interfaces: USB (USBTMC compatible), LAN
Display: 4.3-inch color LCD
Memory: Internal for setup storage
Overload protection: Yes
Power supply: 100-240 V AC
Dimensions: 214 mm x 88 mm x 300 mm
Weight: 2.5 kg
