Teledyne FLIR CM83-NIST | Clamp multimeter, digital, 4 digits, meter link, TRMS, AC / DC, 600 / 600A, with NIST

Manufacturer number: CM83-NIST

Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Teledyne FLIR CM83-NIST
Delivery time upon request

CHF 695.00

plus VAT. CHF 751.30 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

FLIR CM83 | True RMS current probe with traceable NIST calibration certificate for 600 A with METERLiNK.

  • In VFD mode, the variable signal frequency is processed accordingly by filters, thereby measuring the exact frequency and voltage values. This is important in service and repair work.
  • Transfer of the stored measured values via Bluetooth
  • Using the METERLiNK® technology, the measured values can be transferred directly to the images taken by a FLIR thermal imager.
  • The CM83 is connected to suitably compatible mobile devices via Bluetooth using the "FLIR Tools Mobile" application
  • Bluetooth range: maximum 10 m
  • Analog bar display of the measured values
  • Power and power factor measurement
  • True RMS measurements of AC voltages and AC voltages with DC components
  • Large, easy-to-read display, 10,000 counts
  • Additional lighting with a bright white LED in the display ensures good reading even in dark rooms
  • Automatic AC / DC detection even at a maximum current of 600 A.
  • Automatic AC / DC detection even at a maximum voltage of 1000 V.
  • Automatic resistance, continuity and diode test detection
  • Measurement of harmonic content / distortion up to the 25th order
  • Indication of phase rotation
  • Resistance measurement up to 100 kΩ
  • Frequency measurement
  • Capacity measurement
  • Hold the last measurement
  • Peak measurement and storage
  • Inrush current measurement
  • Zeroing for DC currents
  • Storage of maximum, minimum and average value
  • VFD mode - low pass filter
  • Detector for detection and display when there is no contact
  • Automatic switch-off of the device when not in use
  • Pliers opening: 37 mm for 31 mm cables
  • Withstands a drop of 1.2 m
  • Safety category: CAT IV-600V, CAT III-1000V
  • Overvoltage category: IEC 61010-1 CAT IV-600 V, CAT III-1000 V, IEC 61010-2-033.
  • Specified temperature range from 18 ° C to 28 ° C with specified accuracy: 0.2 * (accuracy) / ° C
  • Dimensions: (H × W × L): 49 mm × 100 mm × 262 mm
  • Weight 590 g with batteries
  • Traceable NIST calibration certificate

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.28 MB

Description

CM83-NIST | Clamp multimeter, digital, 4 digits, meter link, TRMS, AC / DC, 600 / 600A, with NIST

An industry-standard current clamp specifically for complex fault diagnosis.

The industrial clamp meter FLIR CM83 is specially designed for complex fault diagnosis with high-quality current analysis functions. These include harmonic mode to find noise from various electrical sources, rotating field mode to check the phase sequence of three-phase systems for easier diagnosis in motors and installations, and starting current mode to detect transients caused by switch-on processes. The FLIR CM83 is also equipped with filtering for converter-controlled drives for the analysis of non-sinusoidal waveforms and noisy signals in variable-speed drives. This simplifies the localization of electrical problems in complex industrial and commercial systems.

Lieferumfang

  • 6 AAA batteries
  • Instruction manual / CD
  • CAT IV silicone test cable
  • Limited lifetime warranty

Accessoires (2 products )

Teledyne FLIR T530
Serie
Teledyne FLIR T530
Thermal camera, 320 x 240 px, 42 ° optics (793030101)
2 in stock. Ready to ship in 1 business day
CHF 12,304.00
Teledyne FLIR TA15
Teledyne FLIR TA15
Padded carrying case for CM174 / DM284
Delivery time upon request
CHF 63.00

Alternate products (7 products )

Teledyne FLIR TA72
Teledyne FLIR TA72
Current clamp, 4 mm, 30/300 / 3000A AC length 25cm
Delivery time upon request
CHF 213.00
Teledyne FLIR CM65
Teledyne FLIR CM65
Current clamp, digital, 4 digits, data logging TRMS, AC / DC, 600 / 600A
Delivery time upon request
CHF 492.00
Teledyne FLIR CM55 flex clamp 25cm
Teledyne FLIR CM55 flex clamp 25cm
1 in stock. Ready to ship in 1 business day
CHF 246.00
Teledyne FLIR CM94
Teledyne FLIR CM94
Current clamp, digital, 4 digits, TRMS, AC / DC, 2,000 / 2,000 A.
1 in stock. Ready to ship in 1 business day
CHF 417.00
Teledyne FLIR CM83 TRMS multiple measuring clamp
Teledyne FLIR CM83 TRMS multiple measuring clamp
Delivery time upon request
CHF 438.00

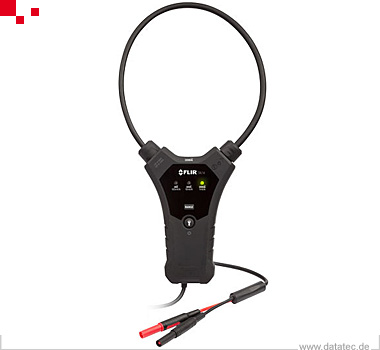

Teledyne FLIR TA74
