Teledyne FLIR T840 | Thermal camera, 464 x 348 px, 24 ° optics (825020201)

Name: T840 | Thermal camera, 464 x 348 px, 24 ° optics (825020201)
Brand: Teledyne FLIR
SKU: 825020201
Price: 22576.0 CHF
Availability: InStock

Manufacturer number: 825020201

1 in stock. Ready to ship in 1 business day

CHF 22,576.00

plus VAT. CHF 24,404.66 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

FLIR T840 | Thermal imaging camera, resolution 464 x 348 px, UltraMax resolution 645,888 px, rotatable optics unit & integrated viewfinder, including 24 ° lens.

Display: touchscreen LCD 4 inches, 640 × 480 pixels, automatic rotation function
IR resolution: 464 × 348 (161,472 pixels)
Laser pointer: yes
Spectral range: 7.5 - 14.0 µm
Digital zoom: 1 to 6 steps continuously
Lens detection: Automatic
Minimum focus distance: 42 ° lens - 0.15 m 24 ° lens - 0.15 m; Optional macro mode 14 ° lens - 1.0 m 6 ° lens - 5.0 m
UltraMax resolution: 645,888 effective pixels
Accuracy: ± 2 ° C or ± 2% of the displayed value
Object temperature range: -20 ° C to 120 ° C | 0 ° C to 650 ° C | 300 ° C to 1,500 ° C
Battery life: approx. 4 hours with typical usage
Interfaces: USB 2.0, Bluetooth, WLAN
Storage media: Exchangeable SD memory card
Video output: DisplayPort via USB Type C
METERLiNK: Yes
Weight and dimensions (without lens): 1.3 kg, 140 mm x 201 mm x 84 mm

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	825020201
Dimensions (L x W x H) (mm):	164,3 x 201,3 x 84,1
Focus:	manual, autofocus (contrast/laser)
Frame rate (Hz):	30
Image enhancement technology:	MSX, UltraMax
Image memory:	8GB SD card
Integrated viewfinder:	Yes
Interchangeable lenses:	Yes, AutoCal
Interfaces:	USB
Max. field of view (FOV):	24° x 18°
Model:	T840 (24°)
Resolution in pixels:	464 x 348
Smallest resolution IFOV (mrad):	0.9
Temperature measuring points:	161472
Temperature measuring range:	-20°C to +1500°C
Thermal sensitivity (mK):	40
Warranty (years):	2
Weight (kg):	1.4

Description

T840 | Thermal camera, 464 x 348 px, 24 ° optics (825020201)

The Flir T840 noticeably simplifies and accelerates the internal and external monitoring of electrical systems, the identification of defective components and many other thermal tests. Carry out tests, inspections and maintenance quickly, easily, flexibly and without excessive physical strain. The bright, 4-inch color LCD display, including built-in viewfinder, enables you to carry out inspections even in the most difficult lighting conditions. Thanks to the high resolution of 464 x 348 pixels, you can carry out inspections from a safe distance. Of course, the Flir T840 is equipped with FLIR Vision Processing ™, MSX® and UltraMax® and thus provides you with an optimized resolution with up to 645,888 pixels.

The Flir T 840 has a particularly ergonomic design and an optical unit that can be swiveled through 180 °. This enables you to identify thermal irregularities, even in places that are particularly difficult to access, without dislocations, almost instantly.

A 6 ° telescope is optionally available, which enables you to take precise measurements even over long distances.

Wireless WiFi streaming to the FLIR Tools app enables simple real-time checking of problem areas. In addition, the GPS sensor integrated in the camera automatically provides the image files with the associated geolocation data in order to simplify their identification and precise documentation.

Accessoires (19 products )

Teledyne FLIR T199347ACC

Transport case, robust for thermal imaging cameras for T5xx & T840 series

Delivery time upon request

CHF 374.00

Teledyne FLIR T850105

FLIR Inspection Route - Camera Option One-time charge for T5xx and T8xx series

Delivery time upon request

CHF 2,460.00

Teledyne FLIR 14 ° telephoto lens, 29 mm lens, incl. AutoCal for thermal imaging cameras Ex5 / T5x0 / T840

T199588

1 in stock. Ready to ship in 1 business day

CHF 1,925.00

Teledyne FLIR T199610

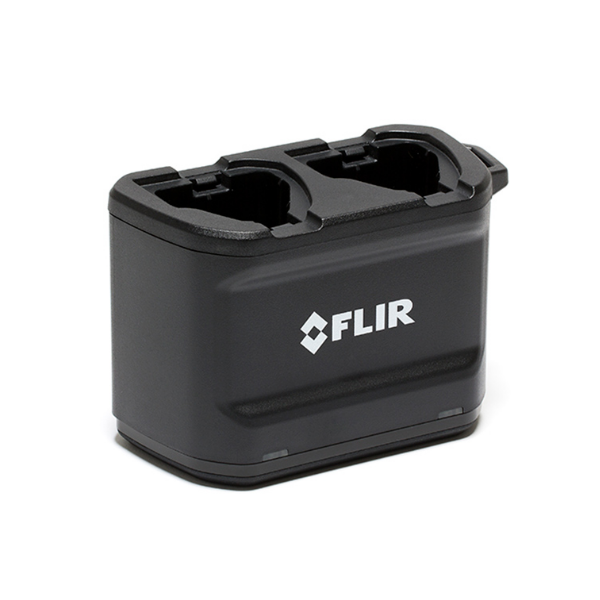

Charger for T5xx thermal imaging camera batteries

Delivery time upon request

CHF 256.00

Teledyne FLIR T911630ACC

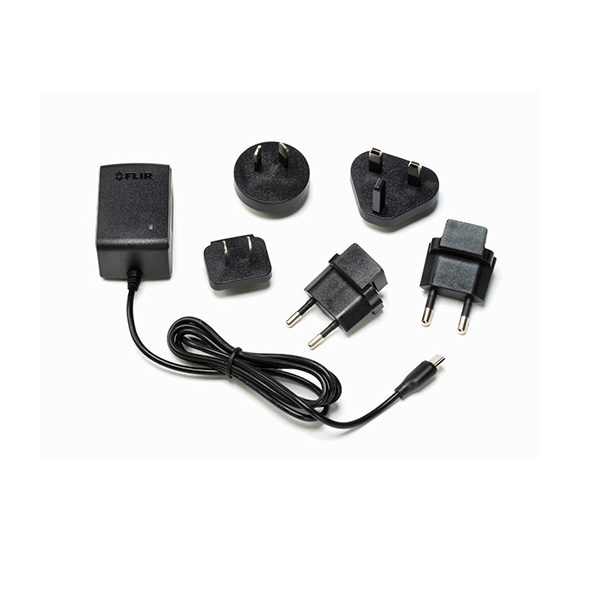

Charger for thermal imaging camera Ex5 & T840 series

Delivery time upon request

CHF 75.00

Teledyne FLIR T199300ACC

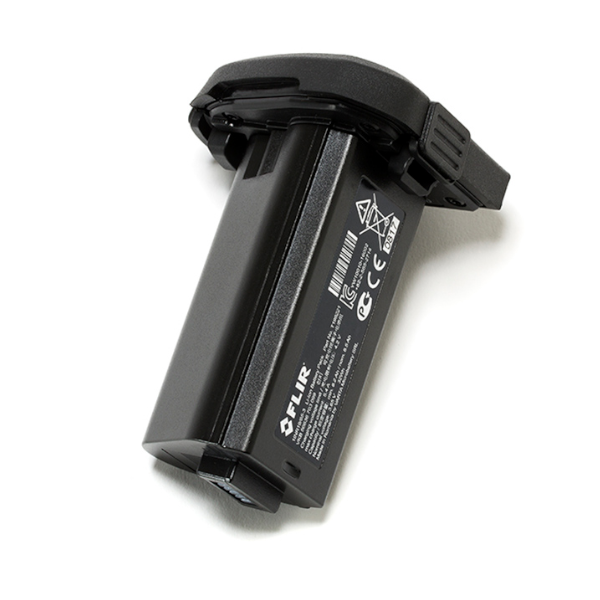

Battery for T5xx thermal imager

Delivery time upon request

CHF 181.00

Teledyne FLIR 24 ° standard lens, 17 mm lens, incl. AutoCal for thermal imaging cameras Ex5 / T5x0 / T840

T199589

1 in stock. Ready to ship in 1 business day

CHF 1,925.00

Teledyne FLIR 42 ° wide-angle lens, 10 mm lens, incl. AutoCal for thermal imaging cameras Ex5 / T5x0 / T840

T199590

Delivery time upon request

CHF 1,925.00

Teledyne FLIR T199609

Macro mode 50/71/103 µm for 24 °, software option for T500 & T800 series thermal imager

1 in stock. Ready to ship in 1 business day

CHF 1,551.00

Teledyne FLIR 6 ° telephoto lens, 70 mm lens for thermal imaging cameras T530 / T540 / T840

T300095

Delivery time upon request

CHF 6,526.00

Teledyne FLIR T911633ACC

Charging power supply with USB Type C plug for thermal imagers

Delivery time upon request

CHF 93.00

Teledyne FLIR T911705ACC

Cable USB-2.A to USB type C for FLIR Ex5 series, E75, E85, E95, T840

Delivery time upon request

CHF 42.00

Teledyne FLIR T300238

Macro lens for electronics applications for WBK Ex5 / T5xx / T8xx / A4xx / A7xx series

Delivery time upon request

CHF 4,814.00

Teledyne FLIR T300341

FLIR Thermal Studio Standard 12 Month License

Delivery time upon request

CHF 246.00

Teledyne FLIR T300243

FLIR Thermal Studio Pro 12 month license

2 in stock. Ready to ship in 1 business day

CHF 492.00

Teledyne FLIR T300586

Dual FOV IR lens f=17/29mm / dual field of view lens for Exx/T5xx/8xx series thermal imagers

Ready to ship in 5 to 10 business days

CHF 3,749.90

Teledyne FLIR T300587

Dual-FOV IR lens f=17/29mm / lens with two fields of view for thermal imaging cameras of the Exx/T5xx/8xx series, including transport bag

Delivery time upon request

CHF 3,744.00

Teledyne FLIR T300369

Mounting Kit for FLIR Exx, T5xx, T8xx series

Delivery time upon request

CHF 149.00

Teledyne FLIR T300805

80° wide angle lens for thermal imaging cameras of the Axxx, Exx, T5xx, & T8xx series

Delivery time upon request

CHF 4,493.00

Alternate products (12 products )

Teledyne FLIR T840

Thermal camera, 464 x 348 px, 24 ° & 42 ° optics (825050201)

Delivery time upon request

CHF 24,609.00

Teledyne FLIR T840

Thermal camera, 464 x 348 px, 14 ° & 42 ° optics (825070201)

Delivery time upon request

CHF 24,609.00

Teledyne FLIR T840

Thermal camera, 464 x 348 px, 14 ° optics (825010201)

Delivery time upon request

CHF 22,576.00

Teledyne FLIR T840

Thermal camera, 464 x 348 px, 42 ° optics (825030201)

Delivery time upon request

CHF 22,576.00

Teledyne FLIR T840

Thermal camera, 464 x 348 px, 14 ° & 24 ° optics (825040201)

Delivery time upon request

CHF 24,609.00

Teledyne FLIR T840

Thermal camera, 464 x 348 px, 14 °, 24 ° & 42 ° optics (825060201)

Delivery time upon request

CHF 25,786.00

Teledyne FLIR T911706ACC

Car adapter 12V DC, for Exx, T5xx, T8xx series

Delivery time upon request

CHF 42.00

Teledyne FLIR T840

Thermal imaging camera 464 x 348 px, 24 ° + 6 ° optics (825080201)

Delivery time upon request

CHF 28,996.00

Teledyne FLIR T840

Thermal imaging camera 464 x 348 px, 24 ° + 14 ° + 6 ° optics (825090201)

Delivery time upon request

CHF 30,708.00

Teledyne FLIR T840

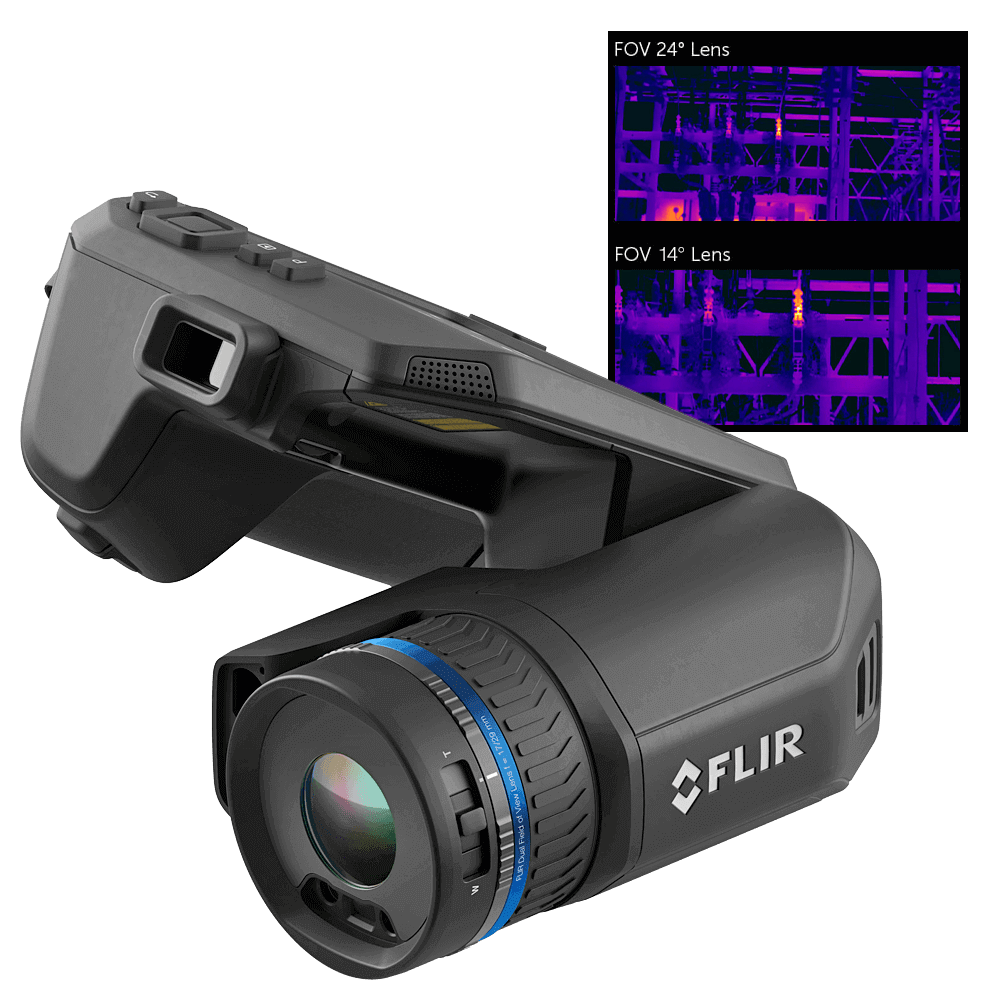

Thermal imaging camera 464 x 348 px, 14°/24° DFOV optics (82510-0201)

Delivery time upon request

CHF 24,021.00

Teledyne FLIR T840

Thermal imaging camera 464 x 348 px, 80° optics (82511-0201)

Delivery time upon request

CHF 26,107.00

dataTec ITC_KAT2_241209

Seminar: itc certification course category 2 according to ISO 18436-7 in Frankfurt on December 9th - 13th, 2024

Delivery time upon request

CHF 2,310.00

Recommendations (10 products )

Teledyne FLIR CM78 multiple measuring clamp 1000 A

Delivery time upon request

CHF 492.00

Teledyne FLIR CM83 TRMS multiple measuring clamp

Delivery time upon request

CHF 438.00

Teledyne FLIR MR77

Thermo-hygrometer with IR thermometer, meter link humidity, pressure

Delivery time upon request

CHF 696.00 CHF 781.00

Teledyne FLIR T850105

FLIR Inspection Route - Camera Option One-time charge for T5xx and T8xx series

Delivery time upon request

CHF 2,460.00

Teledyne FLIR T300243

FLIR Thermal Studio Pro 12 month license

2 in stock. Ready to ship in 1 business day

CHF 492.00

Teledyne FLIR T300341

FLIR Thermal Studio Standard 12 Month License

Delivery time upon request

CHF 246.00

dataTec TH_RT_251203

Basic seminar: Thermography / thermal imaging technology on December 3rd, 2025 in Reutlingen

Delivery time upon request

CHF 549.00

dataTec TH_RT_250716

Basic seminar: Thermography / thermal imaging technology on July 16, 2025 in Reutlingen

Delivery time upon request

CHF 549.00

dataTec TH_RT_250521

Basic seminar: Thermography / thermal imaging technology on May 21, 2025 in Reutlingen

Delivery time upon request

CHF 549.00

dataTec TH_RT_251023

Basic seminar: Thermography / thermal imaging technology on February 23, 2025 in Reutlingen

Delivery time upon request

CHF 549.00

About the Manufacturer

Teledyne FLIR

Teledyne FLIR is the world's largest manufacturer of thermal imaging cameras and thermographic instruments. Teledyne FLIR covers an incredibly wide range and has the optimal thermal imaging camera for every application, whether construction, research and development or industrial manufacturing. Since 2010 dataTec is Platinum Distributor of FLIR and, of course, now of Teledyne FLIR.
