SPS RL42-L | High voltage relay 5000VAC / max. 30A number of poles 2, coil 24VDC / 0.07A (energy saving)

Manufacturer number: RL42-L

SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
SPS RL42-L
255 in stock. Ready to ship in 1 business day

CHF 166.00

plus VAT. CHF 179.45 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

PLC RL42-L | High voltage relay 5,000 V / max. 30 A Number of poles 2, coil 24 V DC / 0.07 A.

  • Monostable DC relay
  • Switching capacity max. 5000 V (ohmic load)
  • Test voltage: contacts max. 8 kV DC
  • Isolation voltage max. 5000 V
  • Switching current max. 10 AAC
  • Continuous current max. 30 AAC
  • Switching frequency max. 3 / sec
  • Mechanical switching cycles 5 * 106
  • Basic body made of plastic
  • Contact arrangement: 2 changeover contacts
  • Width: 78 mm
  • Height: 55 mm
  • Depth: 48 mm
  • Weight: approx. 300 g
  • Excitation coil: 24 VDC / 0.07 A

Note: You need the MC22 mounting clip to attach to a 35mm top-hat rail

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

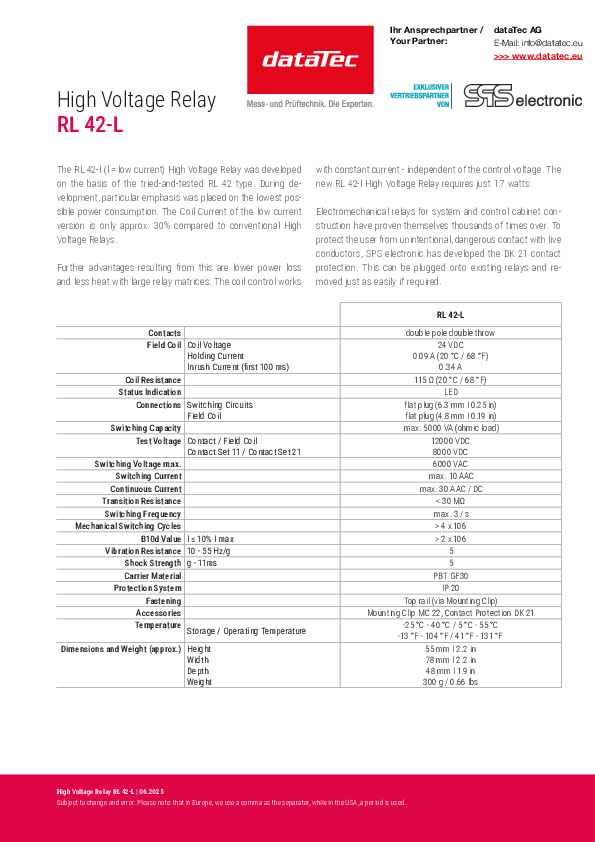

Datasheet
pdf | 0.33 MB

Description

RL42-L | High voltage relay 5000VAC / max. 30A number of poles 2, coil 24VDC / 0.07A (energy saving)

The RL 42-L (L = Low Current) high-voltage relay was developed on the basis of the long-established RL 42. During development, particular emphasis was placed on the lowest possible power consumption. The power consumption for the use of the low current variant is just 30% compared to conventional HV relays. This can be ensured by a lower control power with the same switching parameters. Other advantages that result from this are lower power loss and less heat with large relay matrices. The coil control works with constant current - regardless of the control voltage. The RL 42-L high-voltage relay requires only 1.7 watts.
