SPS RL42 | High voltage relay 5000VAC / max. 30A number of poles 2, coil 24VDC / 0.25A

Manufacturer number: RL42

SPS RL42
SPS RL42
SPS RL42
SPS RL42
SPS RL42
SPS RL42
SPS RL42
SPS RL42
SPS RL42
SPS RL42
15 in stock. Ready to ship in 1 business day

CHF 157.00

plus VAT. CHF 169.72 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

SPS RL42 | High voltage relay 5,000 V / max. 30 A Number of poles 2, coil 24 VDC / 0.25 A.

  • LED display when the coil is activated
  • Quenching diode for excitation coil
  • Coil and work connections are confused
  • Connection of circuits with flat plug 6.3 x 0.8 mm
  • Excitation coil connection with flat plug 4.8 x 0.8 mm
  • Space-saving installation due to the construction being closed on all sides
  • Contact arrangement: 2 changeover contacts
  • 5,000 V / 30 A
  • Test voltage: contacts max. 8 kV DC
  • Width: 78 mm
  • Height: 55 mm
  • Depth: 48 mm
  • Weight: approx. 300 g
  • Excitation coil 24 VDC / 0.25 A

Note: You need the MC22 mounting clip to attach to a 35mm top-hat rail

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

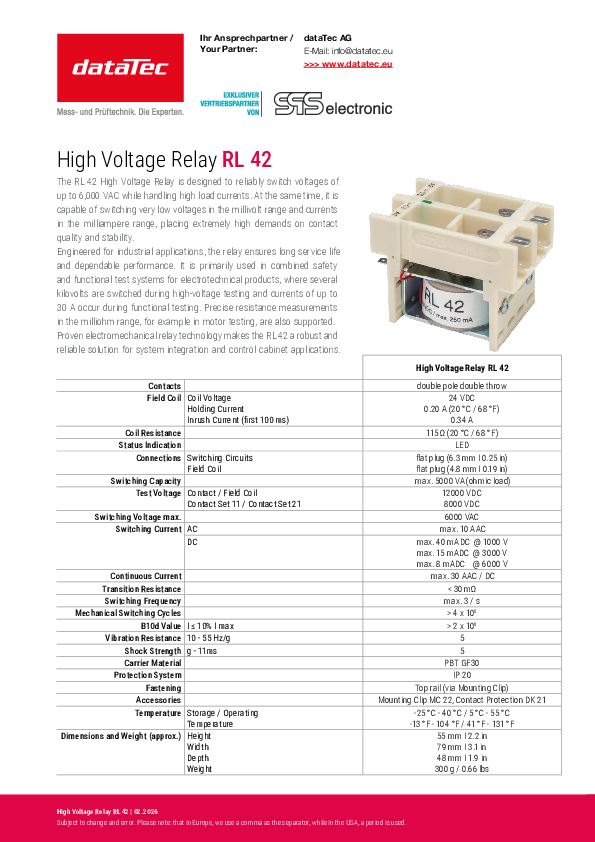

Datasheet
pdf | 0.33 MB

Description

RL42 | High voltage relay 5000VAC / max. 30A number of poles 2, coil 24VDC / 0.25A

High voltage relay 5,000 V / max. 30 A Number of poles 2, coil 24 VDC / 0.25 A.
