SPS RL42-H | High voltage relay 10000VAC / max. 30A number of poles 2, coil 24VDC / 0.25A

Manufacturer number: RL42-H

SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
8 in stock. Ready to ship in 1 business day

CHF 494.00

plus VAT. CHF 534.01 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

SPS RL 42-h | High voltage relay 10,000V / max. 30A number of poles 2, coil 24 V DC / 0.25A.

  • Sealed housing made of ABS plastic, the relay is inserted in transformer oil
  • Switching capacity max. 10000 V (ohmic load)
  • Test voltage: contacts max. 25 kV DC
  • Isolation voltage max. 10000 V.
  • Switching current max. 10 AAC
  • Continuous current max. 30 AAC
  • Quenching diode for excitation coil (24 VDC / 0.25 A)
  • Connection of circuits 2 m cable, free cable ends (4 mm²)
  • Connection excitation coil 2 m cable, free cable ends (0.5 mm²)
  • Including mounting plate 120 x 120 mm

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

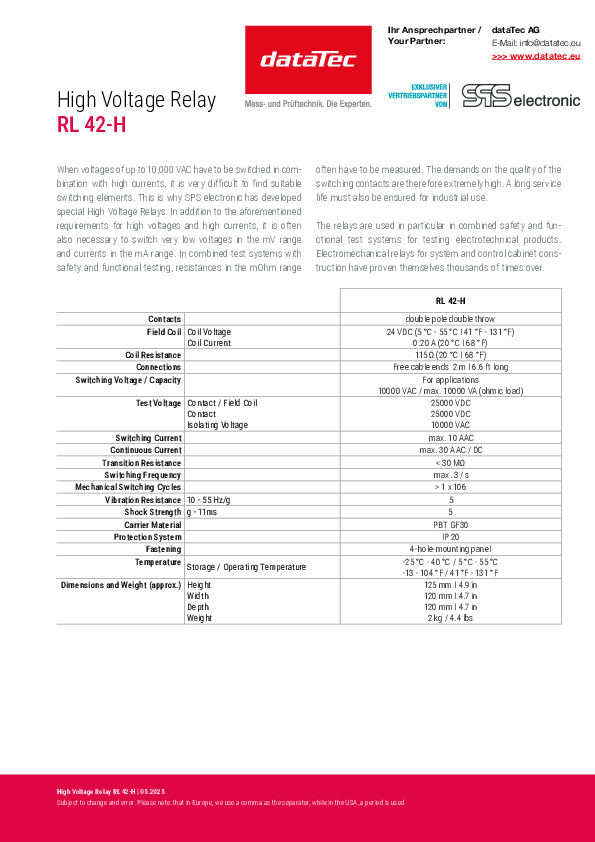

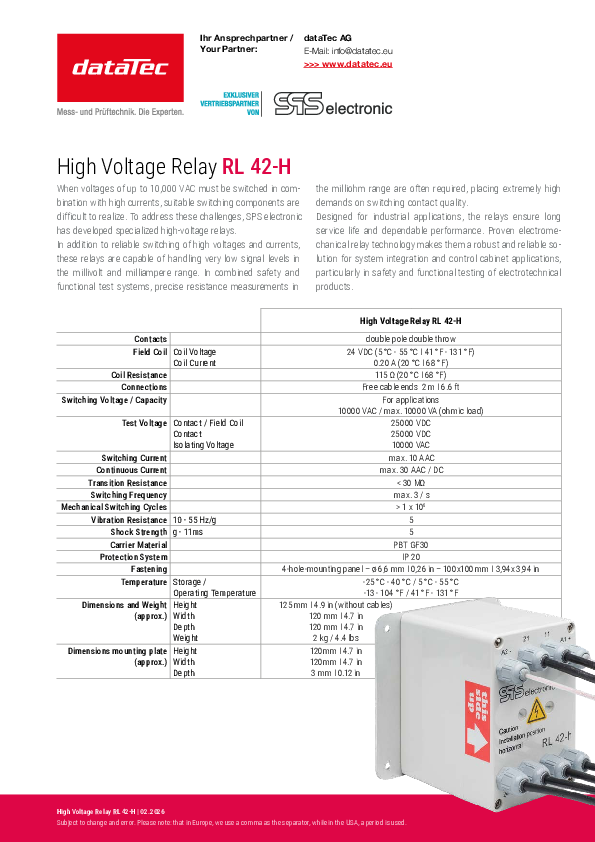

Datasheet
