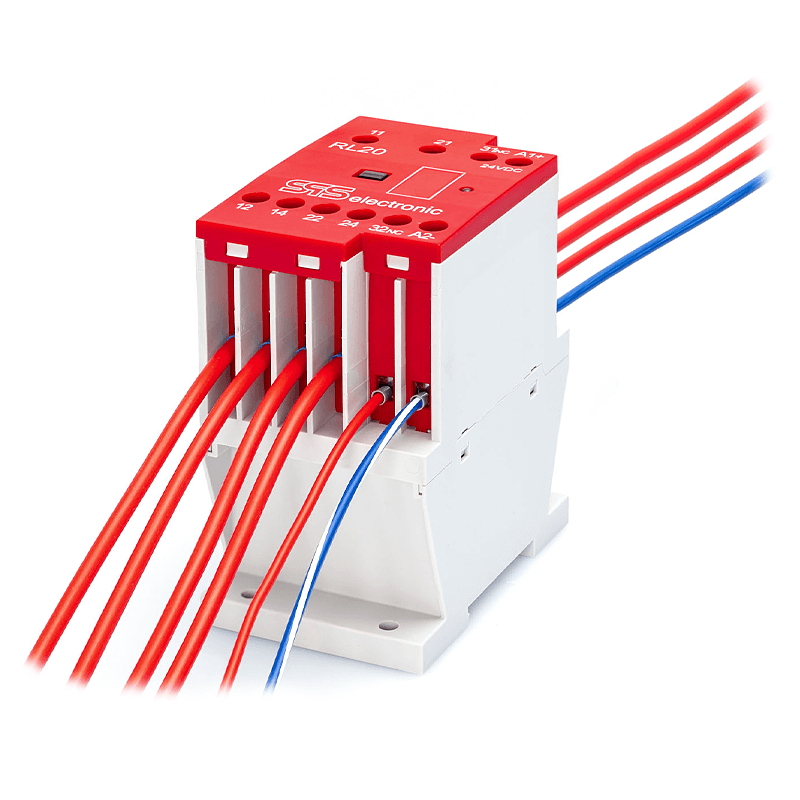

SPS RL20 | High-voltage relay, 6000 V AC, two changeover contacts, NC auxiliary contact, switching current max. 10 A AC

Manufacturer number: RL20

RL20
RL20
RL20
RL20
RL20
RL20
Delivery time upon request

CHF 257.00

plus VAT. CHF 277.82 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

SPS electronic RL20 | High-voltage relay, 6,000 V AC, two changeover contacts, NC auxiliary contact, switching current max. 10 A AC.

  • Contacts (forcibly guided): Main circuit 2 changeover contacts // Auxiliary circuit 1 opener
  • Excitation coil: Coil voltage 24 V DC (5 - 55 °C)
  • Status display: LED
  • Connection circuits: screw connection // excitation coil screw connection
  • Switching voltage: max. main circuit 6,000 V AC // auxiliary circuit 400 V AC
  • Switching current: main circuit max. 10 A AC // auxiliary circuit max. 2 A
  • Continuous current: Main circuit max. 30 A AC/DC // Auxiliary circuit max. 2 A
  • Contact resistance : < 10 mΩ
  • Switching frequency: max. 3 / s
  • Carrier material: PA6 V0, PC V0
  • Degree of protection: IP 20
  • Dimensions (HxWxD): 100mm x 56mm x 85mm
  • Weight: 430g
  • Storage / operating temperature: 0 to +40 °C / +5 to +55 °C
  • Fastening: snap-on mounting on DIN rail (35 mm) according to DIN EN 60715 // screw mounting 4 x Ø 4.5 mm (35 x 75 mm)

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

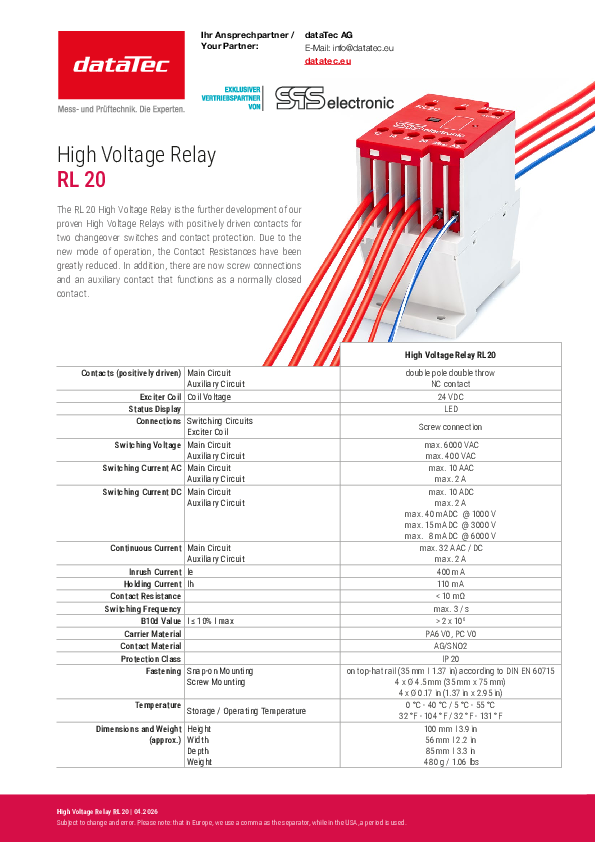

Datasheet
pdf | 0.23 MB

Description

RL20 | High-voltage relay, 6000 V AC, two changeover contacts, NC auxiliary contact, switching current max. 10 A AC

The RL 20 high-voltage relay is the further development of the tried and tested SPS high-voltage relay with forcibly guided contacts for two changeover switches and protection against accidental contact. The transition resistance has been greatly reduced thanks to the new functionality. In addition, there are now screw connections and an auxiliary contact that works as an opener.
