SPS LG1800B | Test device VDE manufacturer standard, all in one, HV AC / DC 5.5 / 6.0 kV 3/10 mA, safety limitation

Manufacturer number: LG1800B

SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
SPS LG1800B
Delivery time upon request

CHF 4,774.00

plus VAT. CHF 5,160.69 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

PLC LG1800B | Safety tester Multitester test device for VDE standards.

  • Ergonomic tabletop device, supported by user-friendly operation
  • CE compliant, corresponds to EN 50191
  • 7-fold test device
  • Combined test device for safety and function test
  • Safety current limited, so no further protective measures are necessary
  • Automatic test sequence
  • Internal switchover for all tests with one-time connection of the test object
  • Calibration via Ethernet interface
  • 4.3 inch (10.9 cm) TFT display
  • Multilingual menu navigation (including German)
  • Time base 0.1 - 999.9 seconds
  • Optical and acoustic error message
  • Min / Max limit value comparator
  • 24 VDC control interface
  • PC control interface
  • Housing: Ergonomic tabletop device
  • Dimensions: W43 x H23.5 x D37cm
  • Mains: 90 - 250 V / 50 or 60 Hz

Equipment:

  • High voltage test guns
  • Protective conductor test pin
  • Connection desk
  • Test dummy
  • PC remote control software

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.41 MB
Userguide
pdf | 1.13 MB

Description

LG1800B | Test device VDE manufacturer standard, all in one, HV AC / DC 5.5 / 6.0 kV 3/10 mA, safety limitation

The all in one solution: The compact tester of the 1800 series combines the protective conductor test, insulation test, high voltage test, leakage current test, function test and continuity test in one device and therefore enables tests according to many standards (IEC, EN, UL, VDE, etc.).

With 7 tests in one device, the LG 1800 can be used in many different ways in industry. Whether manufacturer of household appliances, power tools, motors or calibration laboratories, etc. With this device you as the user are always right. The test device combines all important safety tests, such as protective conductor test, insulation test, high voltage test AC and DC, leakage current test, function test and continuity test according to the current standards (VDE, EN, IEC, UL, etc.).

The test device is ideally suited for both manual workplaces and in production for routine and series testing. Due to the safety current limitation according to EN 50191, no further protective measures such as a test hood, two-hand operation or shut-off are required.

The LG 1800 safety tester impresses with its easy handling.

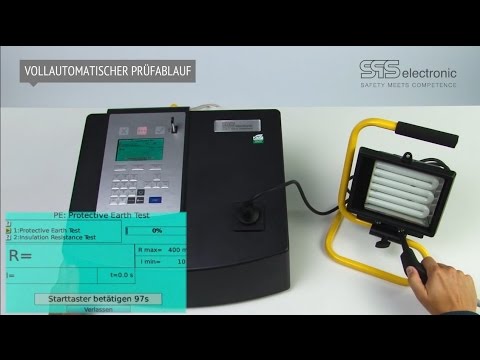

Particularly important in production: The test object is only contacted once and the automatic test sequence takes place after the start approval. There is no need to re-plug the device under test and you save time in series production. Visual text view steps enable the operator to use the menu through the entire test procedure in a user-friendly manner. The USB interface enables storage and standard-compliant logging of all parameters as well as test and measurement results. The program memory adapts dynamically to the test requirements. Remote control with the PC is possible using convenient WINDOWS software.

The test device combines the following seven test types according to the VDE / EN standard:

  1. High voltage test AC: 100 - 5500 VAC / 3 mA
  2. High voltage test DC: 100 - 6000 VDC / 10 mA
  3. Insulation test: 100 - 6000 VDC / max. 10 GOhm
  4. Protective conductor test: 10 to 30 AAC / 0 - 400 mOhm / 6 V and 12 V
  5. Function test: 0 - 300 VAC / 0 - 16 A
  6. Continuity test: 24 VDC / 0.6 A
  7. Replacement leakage current test: 100 - 270 VAC / 0 - 10 mA
