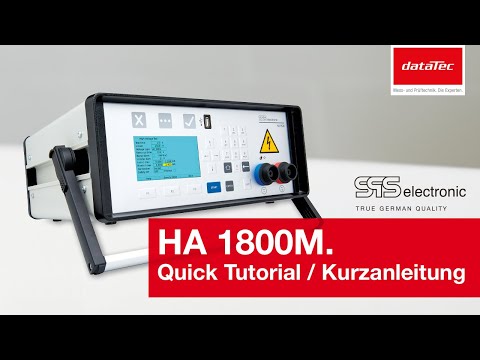

SPS HA1800M | High voltage tester, 14 inch / 3U, HVAC 5.5kV / 3mA & HVDC 6kV / 10mA & ISO test 6kV

Manufacturer number: HA1800M

HA1800M
HA1800M
HA1800M
HA1800M
HA1800M
HA1800M
HA1800M
HA1800M
HA1800M
Delivery time upon request

CHF 3,402.00

plus VAT. CHF 3,677.56 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

SPS HA1800M | High voltage tester, 14 inch / 3 U, HVAC 5.5 kV / 3 mA & HVDC 6 kV / 10 mA & IS test 6 kV

  • Compact, portable tabletop unit in 14 "/ 3 U with integrated 10.9 cm (4.3") TFT color display
  • Execution of individual tests or individually designed test programs for fully automatic test plans
  • High voltage test AC test voltage: Freely programmable from 100 - 5500 V AC / 0 - 3 mA
  • High voltage test DC test voltage: Freely programmable from 100 - 6000 V DC / 0 - 10 mA
  • Isolation DC: voltage range 100 to 6,000 V; Measuring range 250 kΩ to 10 GΩ
  • Safety current limitation, according to EN 50191
  • Fully electronic source for insulation measurement and high voltage testing
  • Ramp function
  • All parameters freely programmable
  • Menu-controlled test program creation
  • Dynamic memory management for test programs
  • Test results can be saved on a USB stick
  • PC software for remote control of the device as well as for expanding the functions and test steps
  • USB, Ethernet / LAN, RS232 and 24V interface
  • Connection via test pistols on the front
  • Calibration certificate according to ISO 9001 or IEC 17025

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.12 MB

Description

HA1800M | High voltage tester, 14 inch / 3U, HVAC 5.5kV / 3mA & HVDC 6kV / 10mA & ISO test 6kV

The HA1800M high-voltage tester impresses with its low price and extremely fast test sequences and enables high-voltage testing in accordance with the standards IEC, EN, UL, VDE, etc. This device is ideally suited for a quick, inexpensive and standard-compliant test of the electrical insulation capacity and dielectric strength electrical components and devices.

Individual tests can be carried out without any problems, or - with the help of the individually designed test programs - a fully automatic test plan can also be created. The HA1800M has a fully electronic generator that makes testing even more accurate and faster. It also makes the device independent of the mains voltage. Regardless of whether at 120 V / 60 Hz in the USA or at 220 V / 50 Hz in China - the HA1800M is ready for immediate use worldwide!

With the help of our comfortable PC software, the HA1800M can not only be controlled remotely, but can also be expanded with additional functions and test steps. The test results can then be saved on a USB stick and thus easily documented.

With its compact housing, the mobile HA1800M is ideally suited as a portable tabletop device. Thanks to the safety current limitation in accordance with EN 50191, no additional protective measures (such as a test hood or two-hand operation) are required for operation.
