Softing 230001 | WireXpert MP C6A, LAN certifier, 2 handsets, Cat.6A up to 600 MHz.

Product features:

Frequency range: 100 kHz to 600 MHz (upgradeable to 3000 MHz)
Certification test: TIA 568.2-E Cat 5e, 6, 6A, TIA 1005A, TIA 568.5, TIA 568.7; ISO/IEC 11801 series and EN 50173 Class D, E, EA, F; TIA and ISO test modes: Permanent Link, Channel, MPTL, EzE; patch cable test Cat 5e, 6, 6A, 7
Test modes: Permanent Link, Channel, MPTL, EzE, patch cable test
Maximum cable length (Autotest): Measuring range: 0-2000 m, resolution: 0.1 m
Measurement accuracy: Exceeds IEC 61935-1 Level IIIe, IV; TIA 1152A Level IIIe and others
Measurement parameters: Loop resistance, length, runtime, return loss, NEXT, and many more.
Display: 5.5" industrial LCD screen
Interfaces: 4× USB host, 1× USB device, 1× DC mains, 1× RJ45 Ethernet, 1× audio 3.5 mm
Camera: 5 MP with LED light for barcode scanning
Battery: 7.2 V Li-ion battery, >8 hours operating time
Memory: 2500 MB internal, USB stick external
Dimensions: 260 × 120 × 55 mm
Weight: approx. 1.1 kg
Supported languages: DE, EN, FR, ES, IT
Operating temperature: 0 °C to 40 °C
Storage temperature: -20 °C to 60 °C
Humidity (relative): 10 % to 80 %
System requirements (reporting software): Windows 10/11, Intel Core i5, .NET Framework 4.0

Description

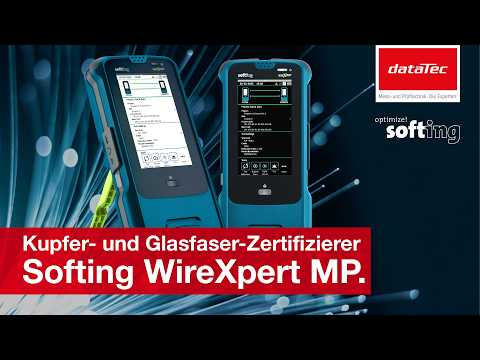

230001 | WireXpert MP C6A, LAN certifier, 2 handsets, Cat.6A up to 600 MHz

The WireXpert MP C6A is the powerful entry-level device in the WireXpert MP series for copper certification. It is ideal for network environments of all sizes, from small offices to medium-sized companies and large data centers. Its modular design also enables later expansion to fiber optic certification (multimode and singlemode, Tier 1).

With a frequency range of 100 kHz to 600 MHz, the device supports all common copper cabling standards including Cat 6A, Cat 7 and Single Pair Ethernet (SPE) up to 600 MHz. The intuitive user interface, ergonomic design with the Dual Control System DCS+ and two AUTOTEST buttons make it particularly user-friendly for both right-handed and left-handed users.

The WireXpert MP C6A is ideal for installations and certifications in office and industrial environments. It offers comprehensive diagnostic functions, project management, PDF reporting, barcode scanning and optional label printer support. The modular platform is future-proof thanks to the option of software expansion up to 3000 MHz (e.g. for Cat 8).

Lieferumfang

2x mainframe units
2x copper test modules

2x Cat 6A channel test adapters

2x Cat 6A permanent link test adapters

2x LONGLIFE permanent link cables

2x chargers

2x headsets

1x Quick Reference Guide

1x set of calibration and conformity certificates

1x DCRU calibration and Conformance Certificates

1x DCRU Calibration Artifact

1x Tri-Mode Soft Case
