Rohde&Schwarz RT-ZISO | Isolated probe system, basic unit, power dependent on measuring tip, R&S interface & BNC (1804.5000K02)

Manufacturer number: 1804.5000K02

Delivery time upon request

CHF 7,496.00

plus VAT. CHF 8,103.18 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Rohde & Schwarz RT-ZISO | Isolated probe system, basic device, performance dependent on measuring tip, R&S interface & BNC (1804.5000K02).

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 2.55 MB

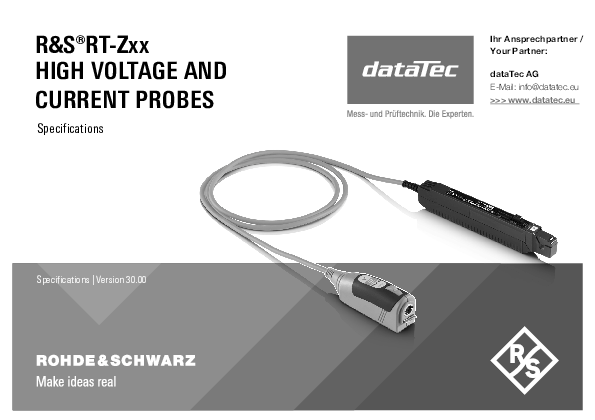

Datasheet
pdf | 1.94 MB

Description

RT-ZISO | Isolated probe system, basic unit, power dependent on measuring tip, R&S interface & BNC (1804.5000K02)

The RT-ZISO Isolated Probing System from Rohde & Schwarz is a state-of-the-art probe measurement system specifically designed for measurements in high-voltage and high-frequency environments. Depending on the probe tip used, the probe offers precise measurements of differential voltages up to ±3,000 V at reference voltage levels of up to ±60 kV and a rise time of less than 450 ps. These features make it ideal for measuring power electronics that use wide-bandgap semiconductors (SiC, GaN), such as those found in modern inverters and motor controllers. The optical isolation of the system achieves an outstanding common mode rejection ratio (CMRR) of over 90 dB at 1 GHz, making it particularly suitable for demanding measurement environments with fast switching operations.

The probe offers a bandwidth of 100 MHz up to 1 GHz, which can be gradually extended by various upgrade options. It supports a differential input voltage of ±3,000 V as well as an offset range of ±60 kV, making it ideal for high voltage measurements in areas such as power electronics, inverter technology and motor control.

Bandwidth options include:

  • Standard: 100 MHz (rise time < 4 ns)
  • ZISO-B202: 200 MHz (rise time < 2 ns)
  • ZISO-B203: 350 MHz (rise time < 1.14 ns)
  • ZISO-B205: 500 MHz (rise time < 800 ps)
  • ZISO-B210: 1 GHz (rise time < 450 ps)

The system also offers dual connectivity with Rohde & Schwarz Probe Interface or SMA connectors, allowing it to be seamlessly integrated into existing measurement systems.

A variety of interchangeable probe tips are available for the probe head to cover different measurement requirements:

  • MMCX tips: These offer improved shielding against interference signals and are ideal for measurements on circuit nodes with high voltages. The ZISO-Z101 MMCX tip, for example, has a measuring range of ±45 V (RMS), while the ZISO-Z201 can measure up to ±300 V (peak).
  • Isolated browser tips: These are ideal for quick and flexible measurements at inaccessible test points, without dedicated measuring points. The ZISO-Z301 browser tip offers a measuring range of ±300 V.
  • Square pin tips: These probes offer high dielectric strength and are ideal for measurements on high voltage nodes. The ZISO-Z202 tip, for example, supports measurements up to ±750 V, while the ZISO-Z203 can measure up to ±3000 V (peak).

The accessories also include optical fiber cables in lengths of 3 m and 10 m to enable flexible measurement setups, especially in environments with high voltages and high interference noise.

The RT-ZISO probe system is certified to IEC/EN 61010-031 and offers a maximum input voltage range of 1,000 V RMS CAT III, ensuring safe use in high-voltage environments. In addition, the laser technology ensures safe and loss-free data transmission between the probe and receiver, while avoiding potentially dangerous feedback loops.

Product features:

  • Optical isolation: The galvanic isolation between the device under test (DUT) and the measuring system ensures maximum common mode rejection ratio (CMRR) and minimizes the risk of signal distortion due to fast switching operations.
  • Broad measurement range: The input voltage range of ±3,000 V and the CMRR range of ±60 kV enable reliable measurements even in extreme environments.
  • Precision: The system offers a signal sensitivity of ±10 mV and extremely low susceptibility to interference, which enables precise measurements in noisy environments.
  • Flexible application areas: It is ideal for applications such as measuring switching transducers, double pulse testing, floating measurements, shunt measurements and more.

Accessoires (7 products)

ZISO-B404
Rohde&Schwarz
ZISO-B404
fiber optic cable, 3 m, e.g. for R&S RT-ZISO probe (1804.5017.02)
Delivery time upon request
CHF 937.00
ZISO-B410
Rohde&Schwarz
ZISO-B410
fiber optic cable, 10 m, e.g. for R&S RT-ZISO probe (1804.5023.02)
Delivery time upon request
CHF 4,217.00
ZISO-B901
Rohde&Schwarz
ZISO-B901
Bandwidth option 100 MHz for R&S RT-ZISO probe (1804.5030.02)
Delivery time upon request
CHF 469.00
ZISO-B902
Rohde&Schwarz
ZISO-B902
Bandwidth option 200 MHz for R&S RT-ZISO probe (1804.5046.02)
Delivery time upon request
CHF 2,437.00
ZISO-B903
Rohde&Schwarz
ZISO-B903
Bandwidth option 350 MHz for R&S RT-ZISO probe (1804.5052.02)
Delivery time upon request
CHF 5,341.00
ZISO-B905
Rohde&Schwarz
ZISO-B905
Bandwidth option 500 MHz for R&S RT-ZISO probe (1804.5069.02)
Delivery time upon request
CHF 8,246.00
ZISO-B910
Rohde&Schwarz
ZISO-B910
Bandwidth option 1 GHz for R&S RT-ZISO probe (1804.5075.02)
Delivery time upon request
CHF 17,991.00

Alternate products (10 products)

RT-ZISO01
New
Rohde&Schwarz
RT-ZISO01
Bundle probe system, 100 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P11)
Delivery time upon request
CHF 10,026.00
RT-ZISO02
New
Rohde&Schwarz
RT-ZISO02
Bundle probe system, 200 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P12)
Delivery time upon request
CHF 11,994.00
RT-ZISO03
New
Rohde&Schwarz
RT-ZISO03
Bundle probe system, 350 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P13)
Delivery time upon request
CHF 14,899.00
RT-ZISO05
New
Rohde&Schwarz
RT-ZISO05
Bundle probe system, 500 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P14)
Delivery time upon request
CHF 17,803.00
RT-ZISO10
New
Rohde&Schwarz
RT-ZISO10
Bundle probe system, 1 GHz, 3m cable, incl. ZISO-Z201&ZISO-Z301 measuring tip (1804.5000P15)
Delivery time upon request
CHF 27,548.00
RT-ZISO01L
New
Rohde&Schwarz
RT-ZISO01L
Bundle probe system, 100 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P21)
Delivery time upon request
CHF 13,306.00
RT-ZISO02L
New
Rohde&Schwarz
RT-ZISO02L
Bundle probe system, 200 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P22)
Delivery time upon request
CHF 15,274.00
RT-ZISO03L
New
Rohde&Schwarz
RT-ZISO03L
Bundle probe system, 350 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P23)
Delivery time upon request
CHF 18,178.00
RT-ZISO05L
New
Rohde&Schwarz
RT-ZISO05L
Bundle probe system, 500 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P24)
Delivery time upon request
CHF 21,083.00
RT-ZISO10L
New
Rohde&Schwarz
RT-ZISO10L
Bundle probe system, 1 GHz, 10m cable, incl. ZISO-Z201 & ZISO-Z301 measuring tip (1804.5000P25)
Delivery time upon request
CHF 30,828.00

Options (4 products)

ZISO-B202
Rohde&Schwarz
ZISO-B202
Bandwidth upgrade to 200 MHz for R&S RT-ZISO probe (1804.5146.02)
Delivery time upon request
CHF 2,633.00
ZISO-B203
Rohde&Schwarz
ZISO-B203
Bandwidth upgrade to 350 MHz for R&S RT-ZISO probe (1804.5152.02)
Delivery time upon request
CHF 5,922.00
ZISO-B205
Rohde&Schwarz
ZISO-B205
Bandwidth upgrade to 500 MHz for R&S RT-ZISO probe (1804.5169.02)
Delivery time upon request
CHF 9,024.00
ZISO-B210
Rohde&Schwarz
ZISO-B210
Bandwidth upgrade to 1 GHz for R&S RT-ZISO probe (1804.5175.02)
Delivery time upon request
CHF 19,743.00

Probes (6 products)

ZISO-Z101
Rohde&Schwarz
ZISO-Z101
MMCX 1.5x 50 Ω, probe tip for RT-ZISO, 8 V (RMS), ±45 V (peak),1 kV (RMS) CAT III (1803.4100.02)
Delivery time upon request
CHF 1,125.00
ZISO-Z201
Rohde&Schwarz
ZISO-Z201
MMCX 10x 10 MΩ, probe tip for RT-ZISO, ±300 V (peak), 1 kV (RMS) CAT III (1803.4200.02)
Delivery time upon request
CHF 1,125.00
ZISO-Z202
Rohde&Schwarz
ZISO-Z202
SQPIN 25x 10 MΩ, probe tip for RT-ZISO, ±750 V (peak), 1 kV (RMS) CAT III (1803.4300.02)
Delivery time upon request
CHF 1,125.00
ZISO-Z203
Rohde&Schwarz
ZISO-Z203
WSQPIN 100x 40 MΩ, probe tip for RT-ZISO, ±3 kV (peak), 1 kV (RMS) CAT III (1803.4400.02)
Delivery time upon request
CHF 1,125.00
ZISO-Z301
Rohde&Schwarz
ZISO-Z301
Browser 10x 10 MΩ, probe tip for RT-ZISO, ±300 V (peak), 300 V (RMS) CAT III (1803.4500.02)
Delivery time upon request
CHF 1,125.00
ZISO-Z302
Rohde&Schwarz
ZISO-Z302
Browser 100x 100 MΩ,Probe tip for RT-ZISO, ±3 kV (peak), 1 kV (RMS) CAT III (1803.4600.02)
Delivery time upon request
CHF 1,125.00
