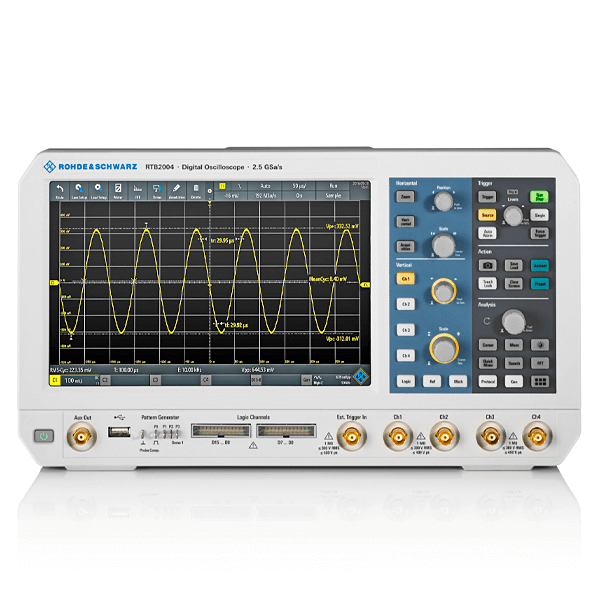

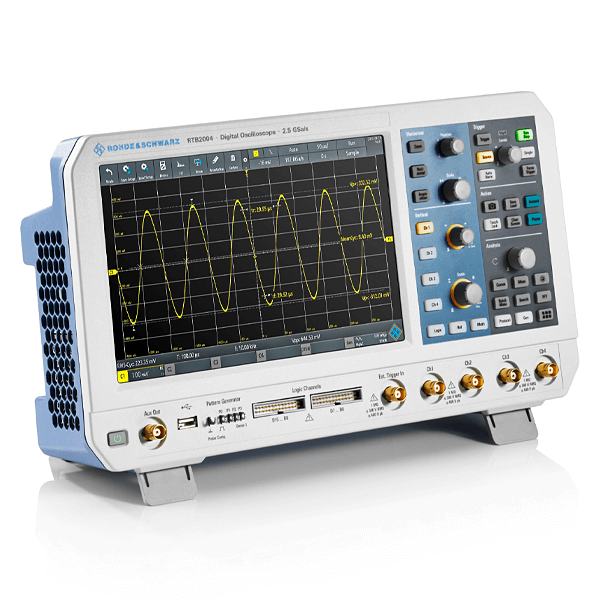

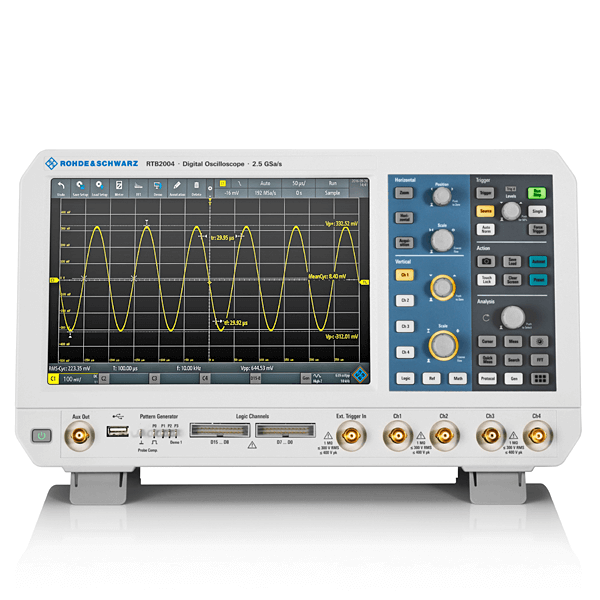

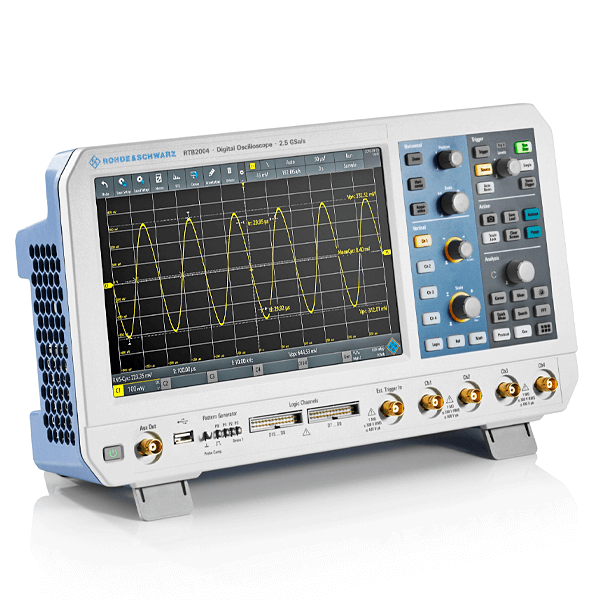

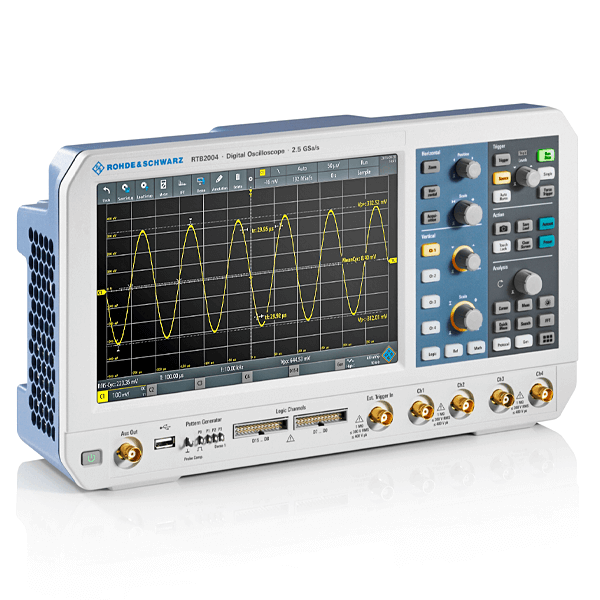

Rohde&Schwarz RTB2004 | Oscilloscope, 4 channels, touch display, USB, LAN, 70 MHz (opt. up to 300), 1.25 GSa/s, 10 bit, 10MPts (1333.1005.04)

Name: RTB2004 | Oscilloscope, 4 channels, touch display, USB, LAN, 70 MHz (opt. up to 300), 1.25 GSa/s, 10 bit, 10MPts (1333.1005.04)
Brand: Rohde&Schwarz
SKU: 1333.1005.04
Price: 2334.0 CHF
Availability: OutOfStock

Manufacturer number: 1333.1005.04

Delivery time upon request

CHF 2,334.00

plus VAT. CHF 2,523.05 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries % Additional offers for this product

Rohde & Schwarz 1333.1005.04 | RTB2004 oscilloscope, 4 channel, touch display, USB, LAN, 70 MHz (opt. Up to 300), 1.25 GSa / s, 10 bit, 10MPts

Bandwidth: 70 MHz to 300 MHz
4 channels
Sampling rate: up to 2.5 Gsample / s
Memory depth: up to 20 Msample
A / D converter resolution: 10 bit
Display: 10.1 "capacitive touchscreen

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	1333.1005.04
Bandwidth (MHz):	70
Counter:	Yes
DVM:	Yes
Dimensions (L x W x H) (mm):	152 x 390 x 220
Function generator:	Yes

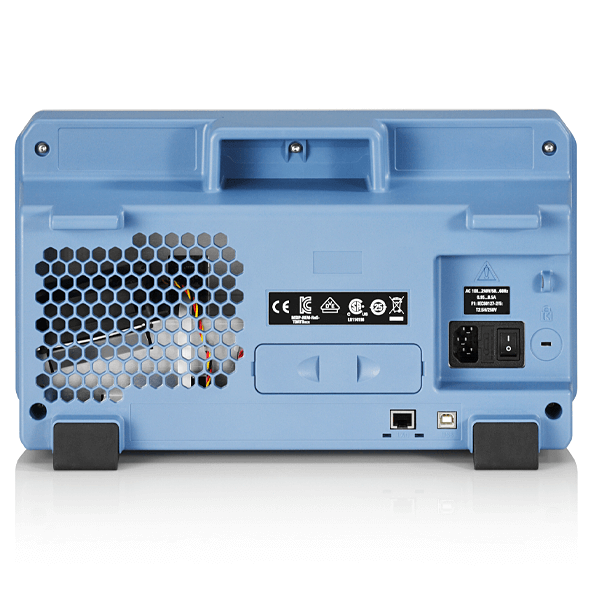

Interfaces:	USB, LAN
Model:	RTB2004
Number of channels:	4
Samplerate:	2,5 GSa/s
Screen size:	25,6 cm
Screen type:	1280 x 800, Touchscreen
Segmentable memory:	Yes
Signal acquisition rate:	50.000 wfms/s
Storage depth:	20 MPts
Triggertypes:	Edge, Width, Video, Pattern, Timeout, Serial Bus
Vertical resolution:	10-bit
Warranty (years):	3
Weight (kg):	2.5

Description

RTB2004 | Oscilloscope, 4 channels, touch display, USB, LAN, 70 MHz (opt. up to 300), 1.25 GSa/s, 10 bit, 10MPts (1333.1005.04)

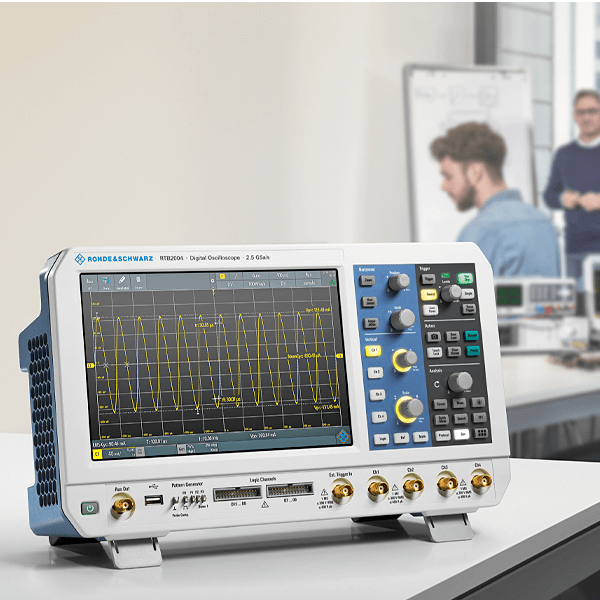

Thanks to the "Power of Ten" (10-bit A / D converter, 10 Msample memory and 10.1 "touchscreen) and intelligent operating concepts, the RTB2000 oscilloscope is the perfect tool for troubleshooting in embedded designs, for university laboratories and for production and service departments.

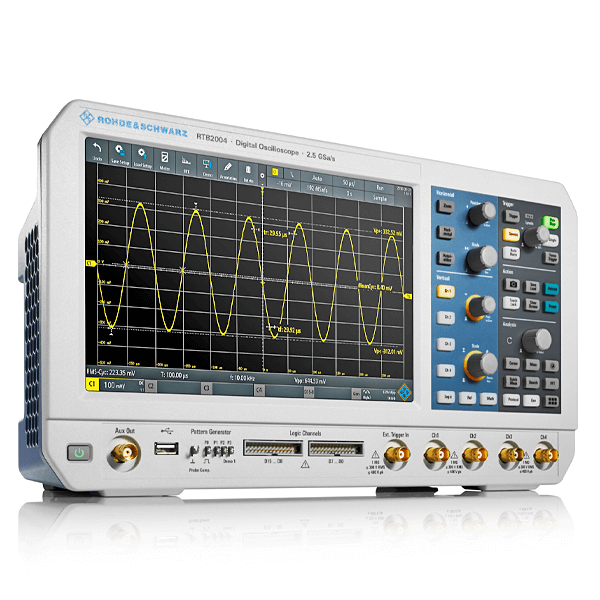

The largest display (10.1 ") with the highest resolution in this class (1280 × 800 pixels) works exactly like your smartphone. It offers a capacitive touchscreen for quick navigation in pop-up menus and a touch function for easy scaling adjustment Zoom or move a waveform.

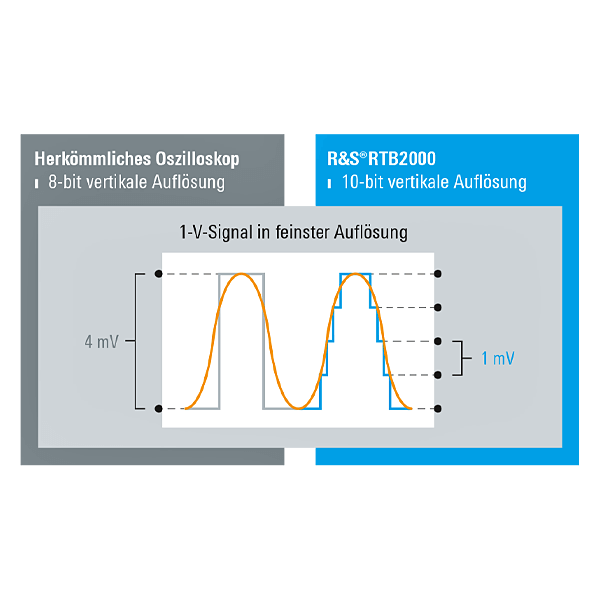

The 10-bit A / D converter offers up to a fourfold improvement over conventional 8-bit A / D converters. You get sharper measurement curves with more signal details.

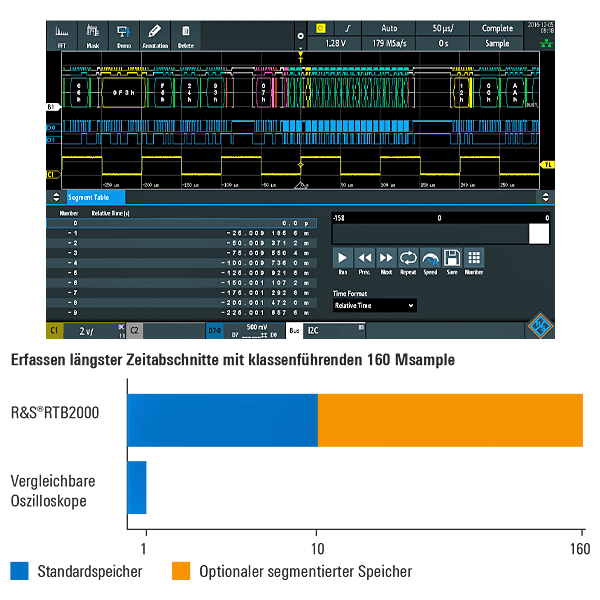

A memory depth of 10 Msample is available if all channels are active. In the interleaved mode, even 20 Msample are available. This is ten times more than comparable competing devices. Longer signal sequences can therefore be recorded and more detailed analysis results can be achieved.

With the RTB2000 you get more than just an oscilloscope. The device includes a logic analyzer, protocol analyzer, waveform and pattern generator and a digital voltmeter. Special operating modes for frequency analysis, mask tests and long-term detection are integrated. Troubleshooting electronic systems of all kinds is simple and effective - and thus protects your investments at an extremely attractive price.

Alternate products (1 product)

Bundle

Rohde&Schwarz
RTB BNDL

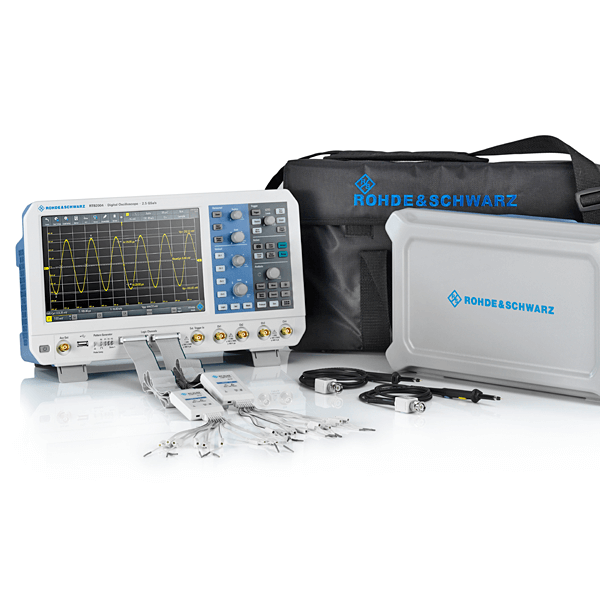

Promotional Bundle RTB2004 with 300 MHz, 4 channels, including Application Bundle PK1 (1333.1005P98)
