Rohde&Schwarz FSC6 | Spectrum analyzer, 9 kHz - 6 GHz, tracking generator, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.16)

Name: FSC6 | Spectrum analyzer, 9 kHz - 6 GHz, tracking generator, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.16)
Brand: Rohde&Schwarz
SKU: 1314.3006.16
Price: 11619.0 CHF
Availability: OutOfStock

Manufacturer number: 1314.3006.16

Delivery time upon request

CHF 11,619.00

plus VAT. CHF 12,560.14 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

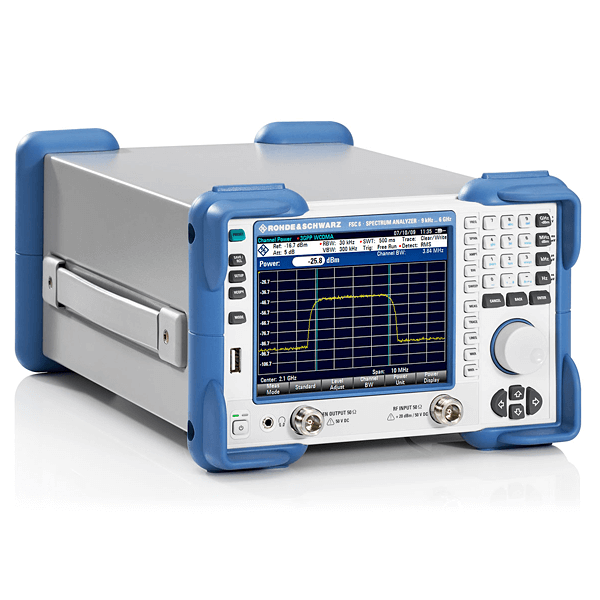

Rohde & Schwarz FSC6 | Spectrum analyzer, frequency range 9 kHz to 6 GHz, with tracking generator

Frequency range: 9 kHz to 6 GHz
Resolution bandwidths: 10 Hz to 3 MHz
Display 5.7 "(14.5 cm) color LC display with VGA resolution
High sensitivity: (<–141 dBm (1 Hz), optionally with preamplifier <–161 dBm (1 Hz))
High modulation capability: (3rd order intercept point> 10 dBm, typically 15 dBm)
Low level measurement uncertainty (<1 dB)
Internal tracking generator (models .13 and .16)
Storage of the measurement results on a USB stick
LAN and USB interface for remote control and measurement data transmission
R&S FSCView software for easy documentation of measurement results
Dimensions (W x H x D) 233 mm x 158.1 mm x 350 mm
Weight 4.5 kg

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Amplitude range:	-161 dBm to 30 dBm
Article number:	1314.3006.16
DANL Displayed Average Noise:	-161 dBm
Demodulations:	AM, FM
Detectors:	max peak, min peak, auto peak, sample, RMS
Dimensions (L x W x H) (mm):	350 x 230 x 158,1
Dynamics:	191 dB
Filter bandwidths:	1 Hz to 3 MHz in 1/3 sequence
Frequency stability:	2,5 ppm

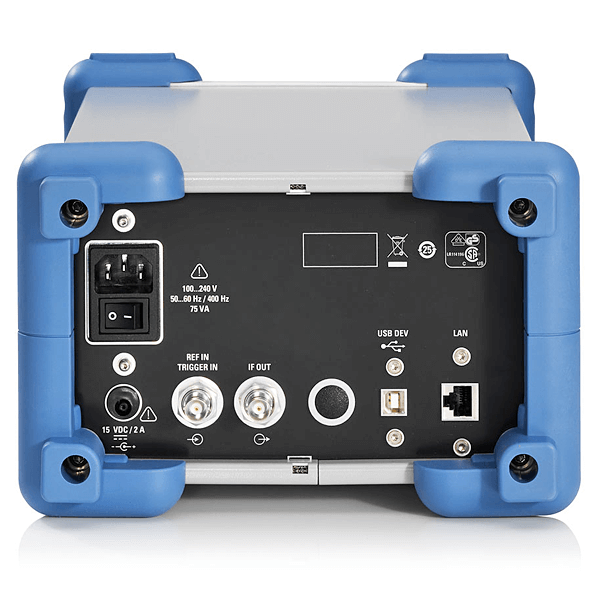

Interfaces:	USB, LAN, audio, trigger, IF out, DC in
Measurement functions:	Noise marker, Modulation depth of AM-modulated signals, Power of pulsed signals in the time domain with predefined settings for GSM and EDGE mobile radio standards, Channel power measurement in a definable transmission channel with predefined settings for
Model:	FSC6 (1314.3006.16)
Resolution bandwidth:	1Hz
SSB phase noise:	-95 dBc @ 500 MHz (30 kHz carrier offset)
Screen size:	14,4 cm
Screen type:	640 x 480, LCD
Special features:	Measurement applications included in basic unit
Sweep:	linear
Tracking-Generator:	Yes
Warranty (years):	1
Weight (kg):	4.5
max. Frequency range (GHz):	6
min. Frequency range (kHz):	9

Description

FSC6 | Spectrum analyzer, 9 kHz - 6 GHz, tracking generator, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.16)

The compact spectrum analyzer FSC6 from Rohde & Schwarz is the inexpensive basic device for simple development tasks and is suitable for use in production as well as in research and teaching in practical HF training. It is also well suited for use in service or maintenance. It features a wealth of functions to simplify and speed up the development and testing of RF products. Its good RF characteristics and its high measurement accuracy ensure meaningful and reproducible measurement results.

A total of four models are available in the frequency range from 9 kHz to 3 GHz or 6 GHz. A separate model with tracking generator is available for each frequency range. A preamplifier, which is optional for all models, increases the sensitivity for measuring weak signals.

Measurement functions

Noise marker for determining the noise power based on 1 Hz bandwidth
Frequency counter with 0.1 Hz resolution
Limit line monitoring (pass / fail function)
Degree of modulation measurement of AM-modulated signals
Measurement of harmonics and harmonic distortion
AM / FM monitoring demodulator (audio via built-in speakers or headphones)
Field strength measurements taking into account the specific antenna factors of the connected antenna; Display of the field strength in dBμV / m
Power measurement on pulsed signals in the time domain with predefined settings for the mobile radio standards GSM and EDGE
Channel power measurement in a definable transmission channel with predefined settings for the 3GPP WCDMA, cdmaOne, CDMA2000® and LTE mobile radio standards
Measurement of the bandwidth occupied by a signal (OBW)
Adjacent channel power measurement absolute or based on the useful carrier for up to 12 channels and 12 adjacent channels
Gated sweep to display the modulation spectrum of burst signals such as GSM or WLAN
Measurement of spurious emissions

Lieferumfang

Spectrum analyzer FSC
Power cord
USB cable for connection to the PC
Quick start manual
CD-ROM with R&S FSCView software and documentation
