Rohde&Schwarz FPL1003 | Spectrum analyzer, FPL series, 5 kHz to 3 GHz, 40 MHz, optional battery operation (1304.0004.03)

Name: FPL1003 | Spectrum analyzer, FPL series, 5 kHz to 3 GHz, 40 MHz, optional battery operation (1304.0004.03)
Brand: Rohde&Schwarz
SKU: 1304.0004.03
Price: 12690.0 CHF
Availability: OutOfStock

Manufacturer number: 1304.0004.03

Delivery time upon request

CHF 12,690.00

plus VAT. CHF 13,717.89 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price % Additional offers for this product

Rohde & Schwarz FPL1003 | Signal and spectrum analyzer, frequency range 5 kHz to 3 GHz, analysis bandwidth up to 40 MHz, with battery option (1304.0004.03).

Frequency range: 5 kHz to 3 GHz
Analysis bandwidth: 12.8 MHz (standard), optional: 40 MHz
Resolution bandwidth (-3 dB): 100 kHz to 10 MHz in 1/2/3/5 sequence

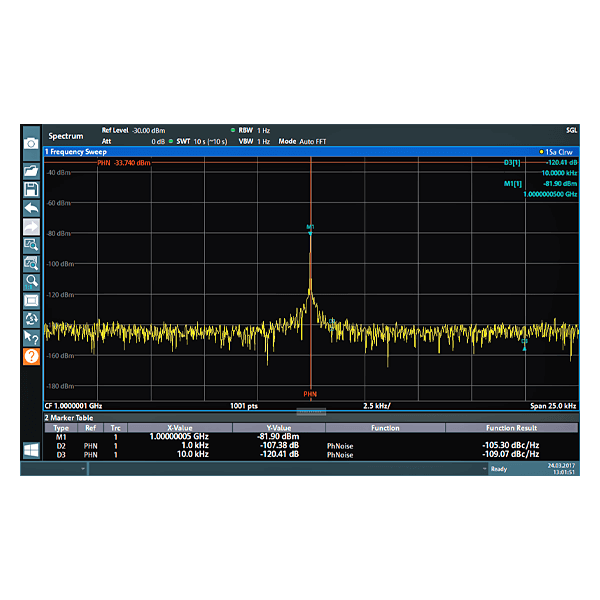

SSB phase noise: typically -108 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
TOI measurement: typ. +20 dBm (300 MHz to 3 GHz)
DANL self-noise display: typ. –166 dBm (10 MHz to 2 GHz, preamplifier on)
Maximum input power: 30 dBm
Marker resolution: 0.01 Hz
Optional battery operation: lithium-ion battery, operating time 3.5 h (nom.)

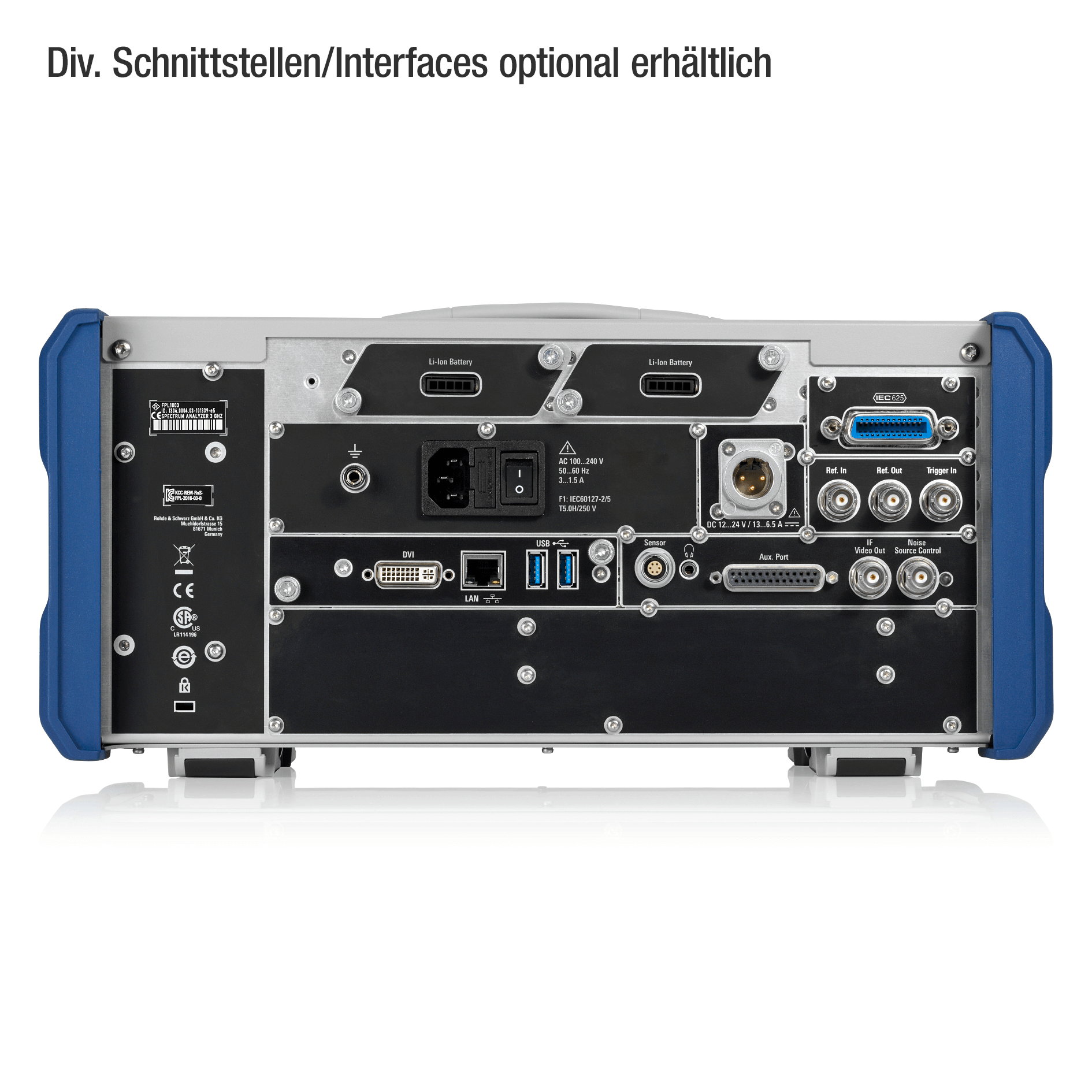

Interfaces: 4x USB 2.0 type A, LAN, DVI for external monitor, external trigger, optional: GPIB
Power supply: 100 to 240 V AC, 50/60 and 400 Hz, plus battery option
Dimensions: W 408 × H 186 x D 235 mm
Weight: 6 kg (with battery pack: 7.3 kg)
Warranty: 3 years

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Amplitude range:	-163dBm to 36dBm
Analysis bandwidth (MHz):	40
Article number:	1304.0004.03
DANL Displayed Average Noise:	-163 dBm
Demodulations:	Optional: AM, FM
Detectors:	max. peak, min. peak, auto peak (normal), sample, RMS, average, with K54 quasi-peak, RMS-average, CISPR-average
Dimensions (L x W x H) (mm):	235 x 408 x 186
Dynamics:	193 dB
Filter bandwidths:	sweep filter 100 kHz to 10 MHz in 1/2/3/5 sequence, FFT filter 1 Hz to 50 kHz in 1/2/3/5 sequence, CISPR 200 Hz, 9 kHz, 120 kHz, 1 MHz optional
Frequency stability:	1ppm
Interfaces:	USB, LAN, DVI, Trigger in, Ref out, Ref in Optional: GPIB
Measurement functions:	FPL1-K7 Analog modulation analysis for AM/FM/PM, FPL1-K9 measurement with NRP power sensors, FPL1-K30 noise figure measurement, FPL1-K40 phase noise measurement application, FPL1-K54 EMI measurement application, FPL1-K70 vector signal analysis, FPL1-K70M
Model:	FPL1003
Resolution bandwidth:	0,01 Hz
SSB phase noise:	-105 dBc/Hz @ 1 GHz (10 kHz carrier offset)
Screen size:	25,6 cm
Screen type:	1280 x 800, TFT LCD
Special features:	optional battery operation possible, small footprint, 40 MHz analysis bandwidth optional
Sweep:	linear
Tracking-Generator:	optional
Warranty (years):	3
Weight (kg):	6
max. Frequency range (GHz):	3
min. Frequency range (kHz):	5

Description

FPL1003 | Spectrum analyzer, FPL series, 5 kHz to 3 GHz, 40 MHz, optional battery operation (1304.0004.03)

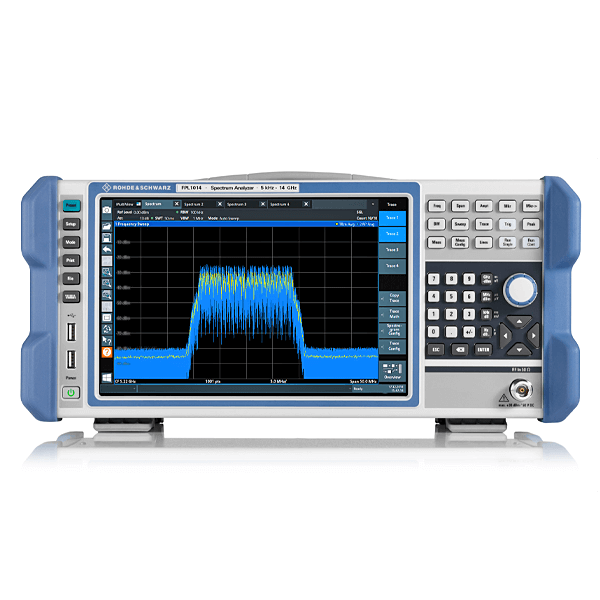

The FPL1003 signal and spectrum analyzer from Rohde and Schwarz accelerates and simplifies your RF measurements in the laboratory, in production and during service. With its intuitive touchscreen and solid RF performance, low weight and small footprint, the spectrum analyzer FPL1003 combines the functionality of a desktop device with the mobility of a handheld device. It is not only limited to spectrum analysis, but also supports high-precision power measurements and the analysis of analog and digitally modulated signals.

Thanks to the high sensitivity and low phase noise, even small interference signals can be precisely analyzed. The large TFT color display (21 cm diagonal) offers an optimal signal display. The MultiView display mode allows the combination of different measurement modes and the simultaneous display of all results. Due to its low weight and battery option, the portable signal and spectrum analyzer FPL1003 offers flexible application options.

One device for a wide range of applications:

Extensive measurement options for demanding tasks: spectrum analysis, power measurement , noise figure and gain measurement , analog demodulation (AM, FM, φM), EMI diagnosis, vector signal analysis / digital modulation analysis from MSK to 4096QAM

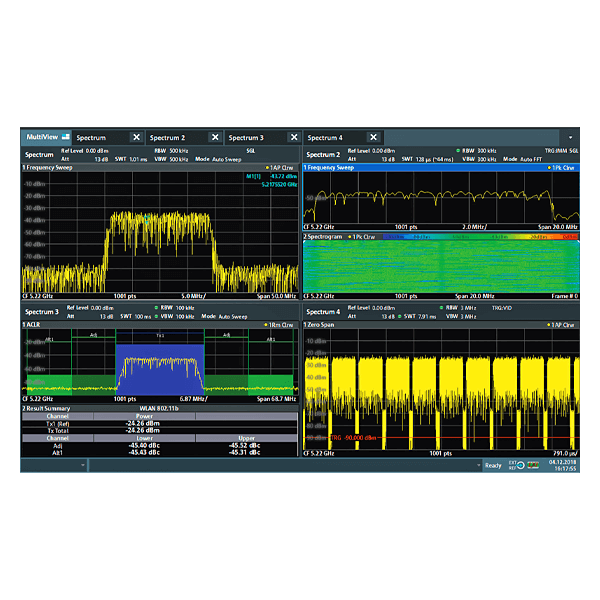

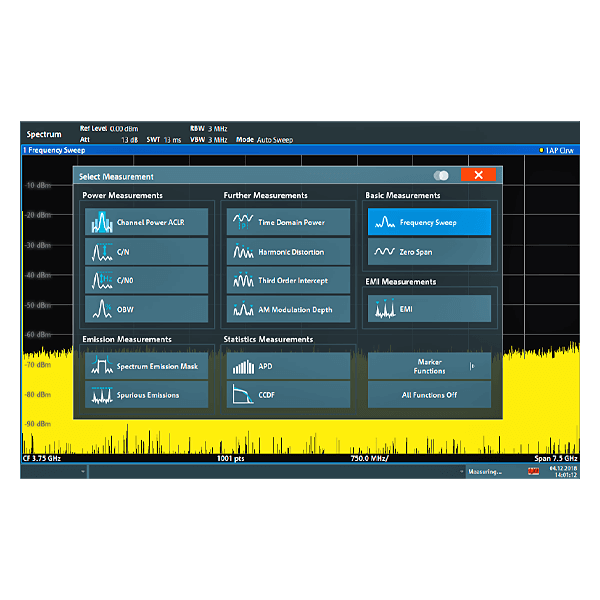

Intuitive user interface for quick and easy measurements: high-resolution, clear TFT screen, multipoint touchscreen, flexible arrangement of the results and MultiView mode
Portable design for optimal flexibility: low weight, optional battery operation, 12 / 24V power supply, mains connection
