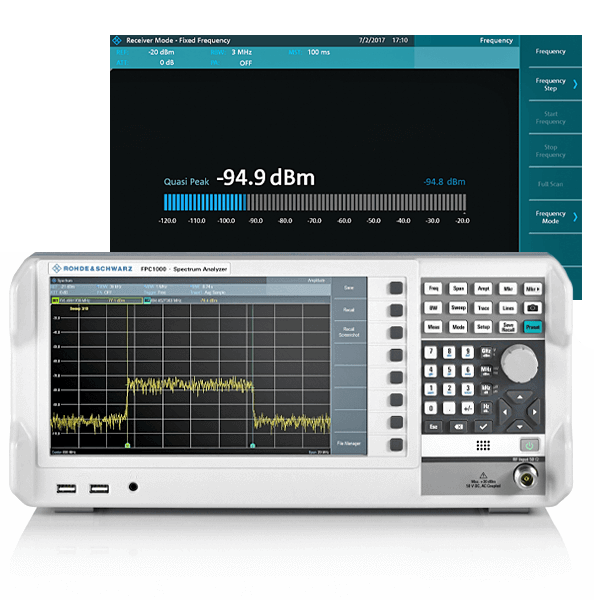

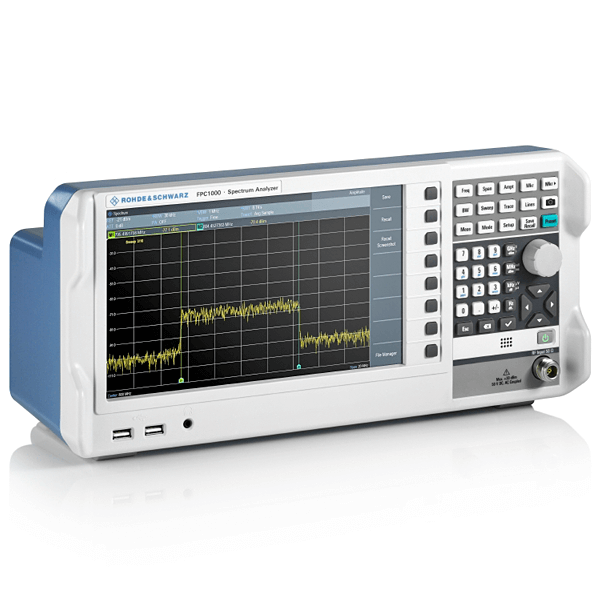

Rohde&Schwarz FPC-P2 | FPC1000 spectrum analyzer package, 5 kHz to 2 GHz (optionally up to 3 GHz), USB / LAN

Manufacturer number: 1328.6660P02

FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
FPC-P2
Delivery time upon request

CHF 2,652.00

plus VAT. CHF 2,866.81 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Documents / Downloads Description Scope Related Articles

Rohde & Schwarz FPC-P2 | FPC1000 spectrum analyzer package, 5 kHz to 2 GHz (optionally up to 3 GHz), USB / LAN.

  • Frequency range: 5 kHz to 2 GHz (optionally up to 3 GHz)
  • Frequency resolution: 1 Hz
  • Marker resolution: 0.1 Hz
  • DANL: <-146dBm (typ.), <-165 dBm (typ.) When the preamplifier is switched on
  • Max. Input power: up to +30 dBm
  • 25.6 cm (10.1 inch) WXGA (1366 × 768 pixel) display
  • Adjustable languages GUI: English, German, French, Italian etc.
  • Interfaces: LAN, 2x USB, Wi-Fi (optional)
  • Dimensions: W 396 × H 178 x D 147mm
  • Weight 3 kg
  • 3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 2.44 MB
Datasheet
pdf | 1.05 MB
Userguide
pdf | 6.91 MB
Start guide
pdf | 2.21 MB

Description

FPC-P2 | FPC1000 spectrum analyzer package, 5 kHz to 2 GHz (optionally up to 3 GHz), USB / LAN

The attractively priced FPC1000 spectrum analyzer impresses with its excellent quality, impeccable RF performance and a future-proof range of functions that can be expanded with keycodes. It has the largest high-resolution display in its class and also offers intelligent wireless remote control options via apps or PC software. With these features, the R&S FPC1000 is ideally suited for spectrum analysis applications in development, production, service and education.

Investment security

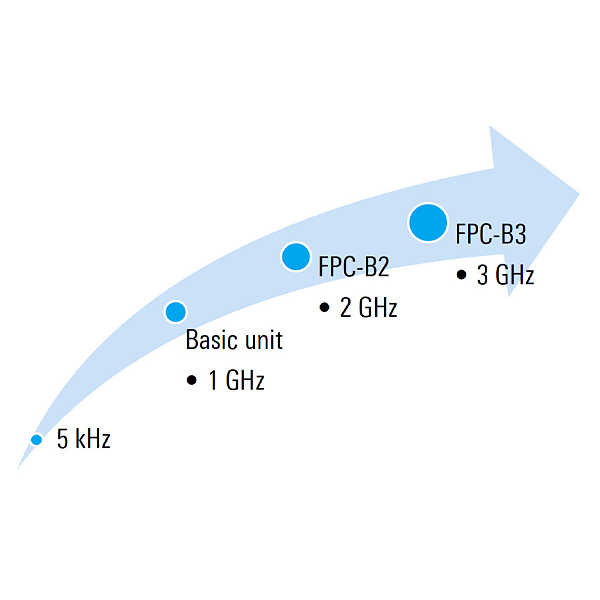

The basic model of the R&S FPC1000 covers a frequency range from 5 kHz to 1 GHz, which can be expanded to 2 GHz or 3 GHz by software upgrade - a novelty in this device class. Upgrades can be purchased as needed and are ready to use as soon as you enter a keycode. Recalibration is not necessary.

Very good RF performance
High sensitivity is crucial for measuring very weak signals. The R&S FPC1000 already offers a low background noise of -150 dBm (typ.). This is further reduced to -165 dBm (typ.) By an optional preamplifier that can be activated by keycode.

The device tolerates up to 2 watts of power at the RF input and can measure up to 1 W (30 dBm). This is 10 times more than comparable devices and is therefore protected against damage in the event of inadvertently applied high performance. In combination with the low background noise and high maximum input power, the R&S FPC1000 achieves an extraordinarily large measuring dynamic.

High resolution
The R&S FPC1000 offers the finest measurement resolution in its class with a resolution bandwidth of 1 Hz. The display measures 10.1 inches (26 cm) in WXGA resolution. It is 26 percent larger and offers 2.6 times the resolution of all other entry-level spectrum analyzers. Thanks to this high measurement and display resolution, signals can be measured with a high level of detail.

Simple virtual operation
The R&S FPC1000 is easy to operate remotely. In addition to the standard wired Ethernet connection, the R&S FPC1000 also optionally offers a wireless WLAN interface. With R&S InstrumentView for Microsoft © Windows and the R&S MobileView platforms based on iOS / Android app, measurements can be carried out regardless of time and place.

Lieferumfang

  • Supplied with power cord and USB cable
  • FPC-B2 Frequency upgrade option for spectrum analyzer FPC1000 to 2 GHz

Options:

  • FPC-B3 Frequency upgrade option for spectrum analyzer FPC1000, 2 GHz to 3 GHz
  • FPC-B22 Preamplifier option for FPC1000 spectrum analyzer
  • FPC-K7 option modulation analysis (AM, FM, ASK, FSK) for spectrum analyzer FPC1000
  • FPC-K43 Option Receiver mode for spectrum analyzer FPC1000
  • FPC-K55 Option Advanced measurement functions for FPC1000 spectrum analyzer
  • FPC-B200 Option Wifi support for spectrum analyzer FPC1000
