Rohde&Schwarz ZNLE3-P1 | Packet Network Analyzer, Vectorial, 2 Port, 1 MHz - 3 GHz (1323.0012P01)

Manufacturer number: 1323.0012P01

Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Rohde&Schwarz ZNLE3-P1
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Rohde & Schwarz 1323.0012P01 | ZNLE3-P1 packet network analyzer, vectorial, 2 port, 1 MHz - 3 GHz

  • Frequency range from 100 kHz to 3 GHz
  • Two-port vector network analyzer with a full S-parameter test set for bidirectional measurements on passive components
  • High dynamics up to 120 dB (typ.)
  • Measurement bandwidths from 1 Hz to 500 kHz
  • Fast measurements, i.e. 8.7 ms for 401 points (100 kHz IF bandwidth, 200 MHz span, correction off)
  • Compact dimensions (24 cm depth) and low weight (6 kg)
  • Standalone device with 10.1 "WXGA touchscreen
  • Windows 10 operating system
  • 3 year warranty

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 1.98 MB

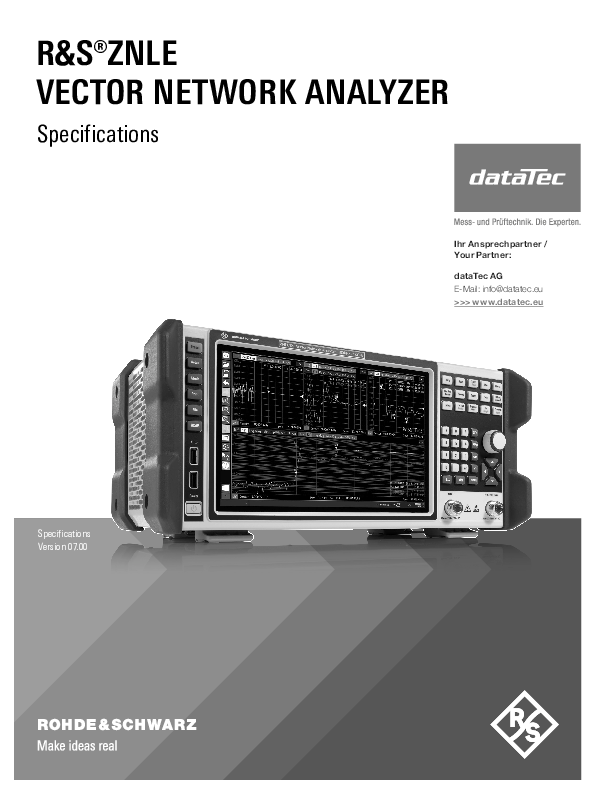

Datasheet
pdf | 1.90 MB
User report
pdf | 0.99 MB
Userguide
pdf | 22.42 MB
Start guide
pdf | 1.58 MB

Description

ZNLE3-P1 | Packet Network Analyzer, Vectorial, 2 Port, 1 MHz - 3 GHz (1323.0012P01)

The user interface and the compact dimensions make the R&S ZNLE the ideal companion for VNA basic applications.

The R&S ZNLE is a two-port vector network analyzer for bidirectional measurements of the S parameters S11, S21, S12 and S22 on passive components. When ordering the R&S ZNLE, only three decisions have to be made:

  • Select frequency range
  • Decide if a GPIB interface is needed
  • Decide whether time domain analyzes or cable fault measurements should be carried out

The analyzer is available with a frequency range from 100 kHz to 3 GHz (R&S ZNLE3 with option R&S ZNLE-B100) or 100 kHz to 6 GHz (R&S ZNLE6 with option R&S ZNLE-B100). A controller for remote control of the R&S ZNLE can be connected to the optional GPIB interface.

As a standalone device, the R&S ZNLE does not need an external PC to configure the test setup. The measurement can begin immediately after switching on.

The measurement can begin immediately after switching on. The time domain analysis (R&S ZNL-K2) and cable fault measurement (R & S®ZNL-K3) options extend the R&S ZNLE with important functions for general test purposes.
