Pico Agile Synthesizer, 8 GHz | PicoSource AS108 (PQ163)

Manufacturer number: PQ163

Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Agile Synthesizer, 8 GHz
Delivery time upon request

CHF 5,880.00

plus VAT. CHF 6,356.28 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Pico Technology AS108 | PicoSource signal generator, 300 kHz to 8 GHz, compact and portable design, PC-based application via USB control.

  • Convenient control via USB on a Windows PC, tablet, etc.
  • Autonomous or system-integrated application
  • Frequency range: 300 kHz to 8 GHz
  • Frequency accuracy: ± 5ppm
  • Dynamic range: -15 dBm to +15 dBm
  • Fast frequency response: 55 µs to 10 ppm
  • Fast amplitude setting time: max. 25 µs to 1 dB / max. 200 µs to 0.1 dB
  • Extensive functions: sweep, hopping, list mode, level, phase + level, arbitrary function, modulation
  • Modulation types: AM, FM, QPSK, QAM, ASK, FSK
  • Internal sine: 10 Hz - 5 kHz
  • Trigger functions: "Sweep Start", "Next Point"
  • Trigger output and trigger input for external trigger sources
  • PC software PicoSynth 2 for optimal control via touchscreen, mouse, keyboard or remote control (via C-compatible programming languages, API included)
  • Programming suggestions for LabVIEW, C ++, C #, Python, MATLAB, Keysight VEE
  • Multi-device operation with synchronized modulations / sweeps / hoppings / lists
  • Low power consumption: 12 to 15 V DC
  • Interface: USB 2.0
  • Dimensions: W 173 x H 56 x D 232 mm / weight: 1.78 kg

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

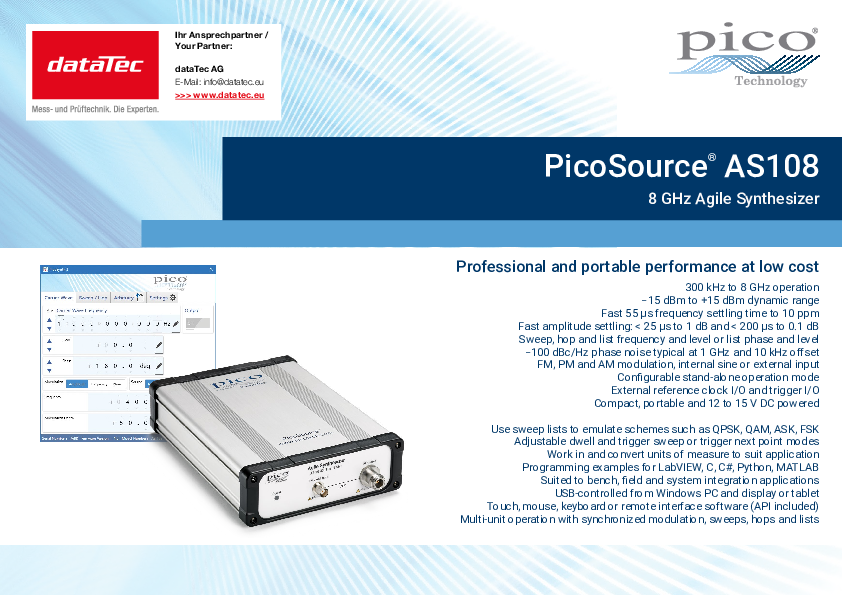

Datasheet
pdf | 2.08 MB
Userguide
pdf | 0.49 MB

Description

Agile Synthesizer, 8 GHz | PicoSource AS108 (PQ163)

Particularly small, particularly powerful: The reasonably priced PicoSource function generator AS108 is characterized by its flexible and efficient application options - with a wide frequency range from 300 kHz to 8 GHz, with a fast settling behavior, with extensive setting options and functions and with an ultra-compact design.

The PC-based application of the signal generator enables particularly simple and convenient operation - whether as a desktop device or as an integrated system component. It finds its place in the complex development environment as well as in the university or as a mobile device for service and installation technicians.

  • PicoSynth 2 software: user-friendly and application-oriented PC software for convenient parameter setting on the PC as well as for clear presentation and efficient use of all functions
  • System integration through performance: fast settling behavior, intelligent trigger capabilities and programmability enable integration into automated test systems
  • Compact and mobile benchtop design: for flexible use in development or production, for mobile applications in service and installation technology or in training
  • Multi-device operation: control of several PicoSource function generators via a single PC with synchronized modulations / sweeps / hoppings / lists

Accessoires (6 products)

Accessoires (6 products)

TA312
Pico
TA312
Cable, precision, SMA (m) to SMA (m), 13 GHz, length: 60 cm, flexible, coated
Delivery time upon request
CHF 67.00
TA314
Pico
TA314
Adapter, SMA (f) to Type-N (m) 50 ohms, 18 GHz
Delivery time upon request
CHF 85.00
TA262
Pico
TA262
Attenuator, 10 dB, SMA (m) to SMA (f), 50 ohms, 10 GHz
Delivery time upon request
CHF 76.00
TA173
Pico
TA173
Attenuator, 20 dB, SMA (m) to SMA (f), 50 ohms, 10 GHz
Delivery time upon request
CHF 76.00
TA261
Pico
TA261
Attenuator, 6 dB, SMA (m) to SMA (f), 50 ohms, 10 GHz
Delivery time upon request
CHF 76.00
TA181
Pico
TA181
Attenuator, 3 dB, SMA (m) to SMA (f), 50 ohms, 10 GHz
Delivery time upon request
CHF 76.00

About the Manufacturer

Pico
Pico
Pico Technology, the leader in USB oscilloscope technology, offers innovative, high-quality and affordable alternatives to traditional benchtop meters. The wide range of PC-based digital oscilloscopes offers a full range of functions. The Pico data loggers are ideal for measuring and storing temperature, humidity, current and voltage.
