Pico VNA 108 | USB vector network analyzer, 300 kHz to 8.5 GHz, Quad RX (PQ112)

Manufacturer number: PQ112

Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Pico VNA 108
Delivery time upon request

CHF 8,940.00

plus VAT. CHF 9,664.14 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Pico PQ112 | Pico VNA108 USB vector network analyzer 300 kHz to 8.5 GHz for connection to a PC.

  • VNA vector network analyzer with high performance, portable and inexpensive
  • Bandwidth 300 kHz to 8.5 GHz
  • High measuring speed: 5000 2-port measurements per second
  • 4-receiver architecture (Quad RX) for optimal accuracy
  • Dynamic range: 124 dB with a measurement bandwidth of 10 Hz
  • Low Trace Noise: 0.005 dB RMS with a measurement bandwidth of 140 kHz
  • Measurement bandwidths: 140 kHz, 70 kHz, 35 kHz, 15 kHz, 10 kHz, 5 kHz, 1 kHz, 500 Hz, 100 Hz, 50 Hz, 10 Hz
  • Measurement parameters: S11, S21, S22, S12, P1dB (1 dB gain compression / reduction of the gain by 1 dB), AM-PM conversion factor
  • Measurement parameters: mixer conversion loss, return loss, isolation and compression
  • Representation: up to 4 channels
  • Display of up to 2 measurements per channel
  • Display formats: amplitude (logarithmic and linear), phase, group delay, VSWR (voltage standing wave ratio), real part, imaginary part, Smith diagram, polar display, display in the time domain
  • After a calibration, the reference plane can be arithmetically shifted to a reference plane on the DUT
  • Transformation into the time domain
  • Impedance transformation from typically 50 Ω into a range from 10 Ω to 200 Ω
  • Tabular and graphic display and storage of the measurement data
  • "Save on Trigger" for high-speed device profiling
  • Double frequency mixer measurements with VSWR correction
  • Measurement of the 1 dB compression point "P1dB"
  • Measurement of phase changes caused by amplitude changes "AM to PM conversion" - important for digital modulation types
  • Calibration: 8 or 12 term process. Assistance with the guided 8- and 12-term calibration process
  • 6 calibration modes
  • Connection socket to the DUT: N socket
  • PC control via USB with the Windows PC operating system
  • Compact device; only takes up half a rack width, 1U
  • Dimensions: L 286 x W 174 x H 61 mm (without sockets)
  • Power supply: DC: +12 V to +15 V, 22 W.
  • Requirements for the host PC: Windows operating system

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

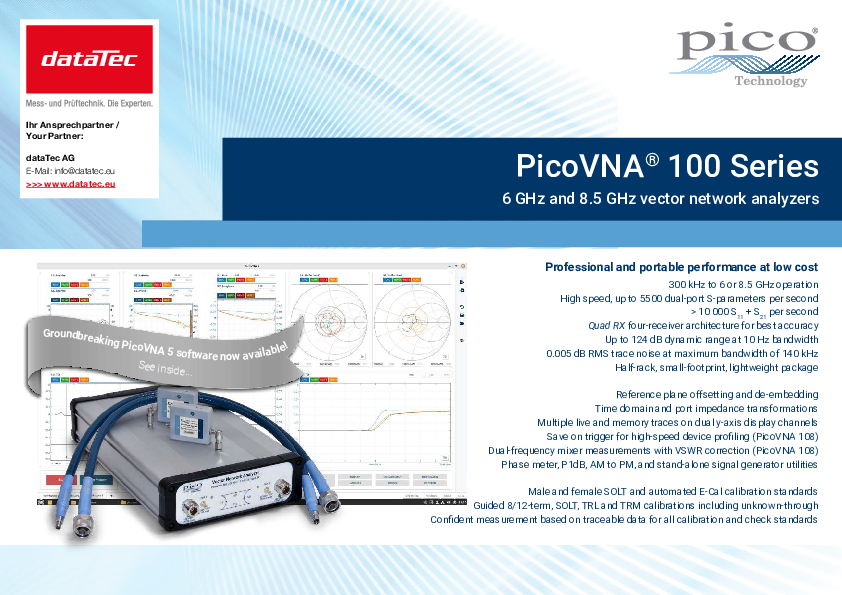

Datasheet
pdf | 4.11 MB
Userguide
pdf | 2.25 MB

Description

VNA 108 | USB vector network analyzer, 300 kHz to 8.5 GHz, Quad RX (PQ112)

With the (VNA) vector network analyzer Pico VNA108 you have a handy device that offers very high accuracy at a very affordable price. The required area is slightly smaller than a DIN A4 page and is just 6 cm thick. This means that the VNA fits in every briefcase.

Vector network analyzers (VNA) are increasingly being used in many areas, in development, production and in the service area and increasingly also because of the low investment costs in training at universities and in the training of technicians. This device is used by engineers, technicians, experts, inspectors and teachers. The costs for the VNA108 compared to bench network analyzers are so low that it can also be purchased by amateurs as well as for laboratory applications by microwave experts.

With the VNAs, components such as B. amplifiers, circuits, modules and complete transmission system components from the telecommunications environment and for data transmission are examined. The measurements provide information about the linearity of components or modules and the individual frequency components of a signal can be recorded according to magnitude and phase, both on the input side and at the output of a module.

The S-parameters (scattering parameters) such as S11 (input reflection), S21 (forward transmission / amplification / attenuation of the input signal), S12 (backward transmission) and S22 (output reflection factor / output adaptation) can then be obtained automatically from these measurements.

Areas of application for the Pico USB vector network analyzer:

  • Reflectometer and transmission measurements in an ATE test environment (ATE / Automatic Test Equipment)
  • Measurement of electronic parts and components and for testing ATE connections such as cables, PC boards and wireless applications
  • Material measurements such as B. for geological material, in food technology, life science, bio-sciences or in radar applications z. B. to penetrate materials
  • Applications in inspection, testing, characterization of components in production and in the service center
  • Tests of individual broadband cables or tests in the production process, during installation, during troubleshooting or to detect errors and changes over the life of a cable or component
  • Antenna adjustment and tuning

The PicoVNA 108 can be programmed and controlled via the USB interface. Despite its small size and low cost, the instrument has a four-receiver "Quad RX" architecture to avoid typical errors such as B. To eliminate signal delays (delays) of 3-receiver designs with internal switching paths.

The PicoVNA 108 offers a dynamic range of 124 dB (at 10 Hz) with a maximum noise of 0.005 dB at the maximum bandwidth of 140 kHz. It is also possible to determine all four S-parameters at any frequency in just 190 µs (2-port measurement) - or to put it another way: 500 points in less than a tenth of a second.

Lieferumfang

  • PicoVNA108 | 8.5 GHz vector network analyzer
  • Power supply unit PS010 with voltage output 12 V, 4.5 A.
  • Carrying bag for PicoVNA 108
  • Calibration data
  • Wrench for N plugs / sockets
  • TA177 SMA M8 ring spanner
  • Pico blue USB 2.0 cable with a length of 1.8 m
