Pico PicoScope 4444 | USB oscilloscope, differential, 4-channel, 20 MHz, SUB-D9 sockets (PQ088)

Name: PicoScope 4444 | USB oscilloscope, differential, 4-channel, 20 MHz, SUB-D9 sockets (PQ088)
Brand: Pico
SKU: PQ088
Price: 1386.0 CHF
Availability: OutOfStock

Manufacturer number: PQ088

Delivery time upon request

CHF 1,386.00

plus VAT. CHF 1,498.27 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

PicoScope PQ088 | USB differential oscilloscope 4444 with 4 real differential inputs, flexible 12- or 14-bit resolution, 20 MHz bandwidth.

4 true differential channels (without reference grounding)
Flexible 12 or 14 bit resolution
20 MHz bandwidth
256 MS memory depth
Intelligent probe interface for the detection, identification and compensation of compatible probes / probes
Power supply via USB connection
USB 3.0 interface (USB 2.0 compatible)
Dimensions: 190 x 170 x 40 mm
Weight: <500 g
5 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	PQ088
Bandwidth (MHz):	20
Counter:	No
DVM:	No
Dimensions (L x W x H) (mm):	170 x 190 x 40
Function generator:	No
Interfaces:	USB3.0
Model:	4444
Number of channels:	4
Samplerate:	400 MSa/s
Segmentable memory:	Yes
Signal acquisition rate:	10.000 wfps
Storage depth:	256 MPts
Triggertypes:	None, auto, repeat, single, rapid, Edge, window, pulse width, window pulse width, dropout, window dropout, interval, runt, logic
Vertical resolution:	12-bit
Warranty (years):	5
Weight (kg):	0.5

Documents & Downloads

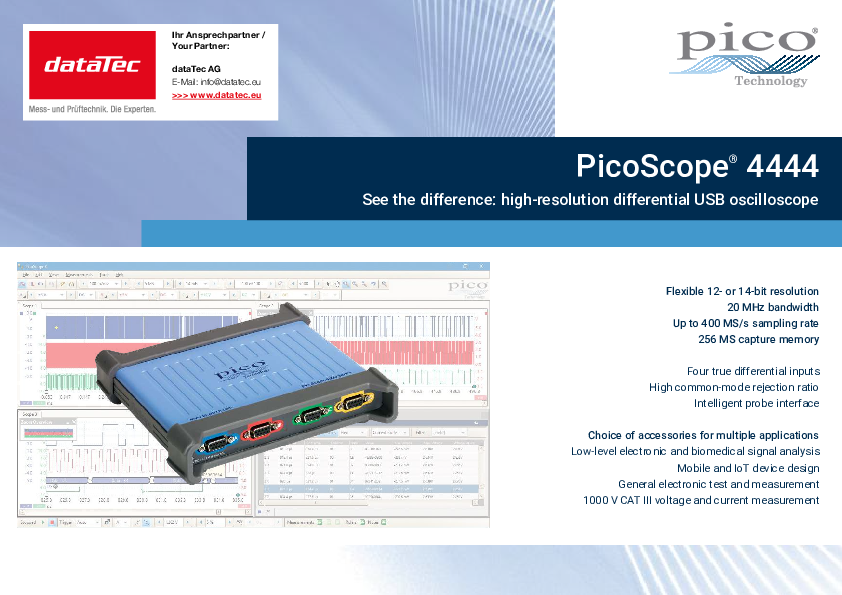

Datasheet

pdf | 5.32 MB

Description

PicoScope 4444 | USB oscilloscope, differential, 4-channel, 20 MHz, SUB-D9 sockets (PQ088)

The PicoScope 4444 USB oscilloscope has four differential input channels with the correct signal and a range of optional accessories for measurements from millivolt to 1000 V CAT III applications.

The PicoScope 4444 USB Oscilloscope addresses the year-to-year problem of taking precise measurements of sample curves on circuit elements without reference grounding, without the risk of a short circuit that could damage the device under test or the measuring instrument.

The PicoScope 4444 is ideal for use in the development and production of hybrid and electric vehicles. The large voltage range is ideal for taking measurements directly on the battery, converter, motor and charger. The large memory depth, high resolution and powerful zoom functions make hidden detailed information visible in wave form. In addition, the PicoScope 4444 can also be used to characterize actuators and sensors and to decode serial bus systems from the automotive sector (CAN, CAN FD, LIN and FlexRay).

With intelligent probe interface for the detection, identification and compensation of compatible probes / probes.
