Pico PicoScope 4262 | USB oscilloscope, DSO, 2-channel, 5 MHz (PP799)

Name: PicoScope 4262 | USB oscilloscope, DSO, 2-channel, 5 MHz (PP799)
Brand: Pico
SKU: PP799
Price: 1322.0 CHF
Availability: OutOfStock

Manufacturer number: PP799

Delivery time upon request

CHF 1,322.00

plus VAT. CHF 1,429.08 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

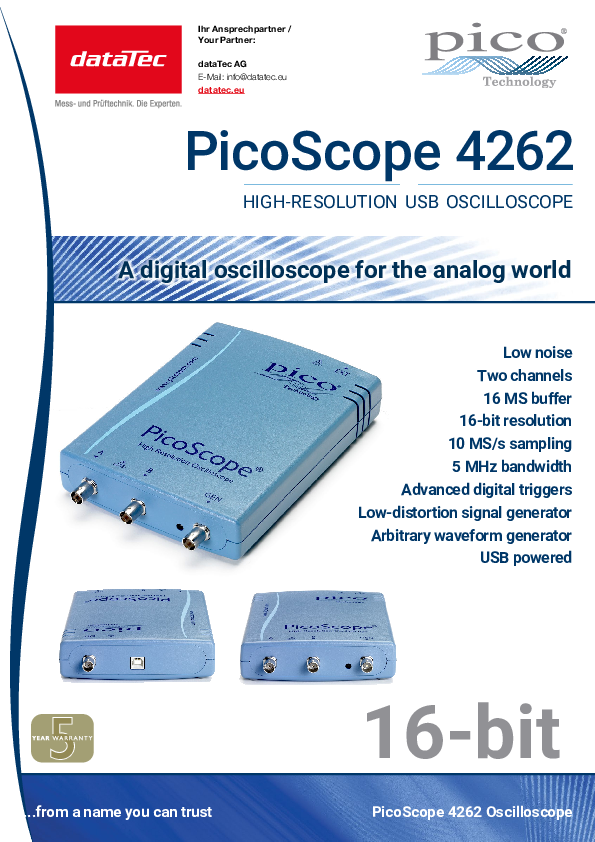

Pico PP799 | 2-channel 5 MHz high-resolution PC oscilloscope PICO 4262 via USB with built-in arbitrary function generator and spectrum analyzer.

Bandwidth 5 MHz
2 channels with BNC connection
16 bit (up to 20 bit in extended mode) vertical resolution
Input sensitivity: 2 mV / div to 4 V / div (10 vertical divisions)
Voltage ranges ± 10 mV to ± 20 V in 9 ranges
Input impedance 1 MΩ in parallel with 15 pF
Maximum real-time sampling rate up to 10 MSa / s
Buffer size 16 MSa
Different trigger types
Serial decoding of CAN, I²C, SPI, RS232, UART buses etc.
Frequency range for built-in function generator up to 20 kHz (front BNC output)
Standard waveforms: sine, square, ramp, (sin x) / x, Gaussian and half sine waveforms, white noise
Buffer for arbitrary function generator 4,000 points with a sampling rate of 192 kSa / s
Frequency range for built-in spectrum analyzer up to 5 MHz
Connection to PC via USB 2.0 interface
Power supply via USB connection
Dimensions (including BNC connector) 210 x 135 x 40 mm
Weight <0.5 kg
5 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	PP799
Bandwidth (MHz):	5
Counter:	No
DVM:	No
Dimensions (L x W x H) (mm):	135 x 210 x 40
Function generator:	No
Interfaces:	USB2.0
Model:	4262
Number of channels:	2
Samplerate:	10 MSa/s
Segmentable memory:	Yes
Storage depth:	16 MPts
Triggertypes:	Rising, falling, adjustable hysteresis, window, pulse width, window pulse width, dropout, window dropout, interval, logic, runt pulse
Vertical resolution:	16-bit
Warranty (years):	5
Weight (kg):	0.5

Description

PicoScope 4262 | USB oscilloscope, DSO, 2-channel, 5 MHz (PP799)

The high-resolution USB oscilloscope 4262 offers comparable functions and specifications as conventional stationary measuring devices, but is more cost-effective and significantly more compact.

The PicoScope 4262 PC oscilloscope offers you the following advantages: You can take the device with you and connect it to any Windows PC and use the device as an oscilloscope, spectrum analyzer, function generator or interface for data acquisition at high speed.

Lieferumfang

PicoScope 4000 Series PC Oscilloscope
USB cable
Brief overview
