Pico 3418E | USB oscilloscope, 4 channel, 500 MHz, up to 5 GS/s, 2 GS memory, up to 14 bit, 3000E series (PQ349)

Name: 3418E | USB oscilloscope, 4 channel, 500 MHz, up to 5 GS/s, 2 GS memory, up to 14 bit, 3000E series (PQ349)
Brand: Pico
SKU: PQ349
Price: 4521.0 CHF
Availability: OutOfStock

Manufacturer number: PQ349

Delivery time upon request

CHF 4,521.00

plus VAT. CHF 4,887.20 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Pico 3418E | USB oscilloscope, 4 channel, 500 MHz, up to 5 GS/s, 2 GS memory, up to 14 bit, 3000E series (PQ349).

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

3418E | USB oscilloscope, 4 channel, 500 MHz, up to 5 GS/s, 2 GS memory, up to 14 bit, 3000E series (PQ349)

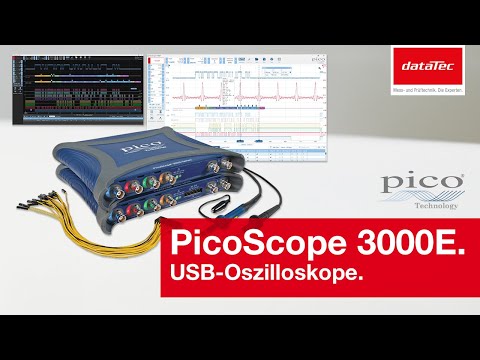

The PicoScope 3000E Series oscilloscopes set a new standard for PC-based oscilloscopes. The series offers a bandwidth of up to 500 MHz and a sample rate of up to 5 GS/s in a compact, lightweight and portable USB-powered package. The 3000E oscilloscopes are ideal for engineers working with analog, digital, embedded or power electronics in the lab or on the move.

The advanced PicoScope 7 software (Windows, Mac or Linux) is easy to use and offers high-end features such as 40 serial decoders, mask limit testing and a range of advanced measurements and mathematical functions.

A software development kit (SDK) is also available for customers who wish to write their own software or use third-party applications such as LabVIEW and MATLAB.

The PicoScope 3000E Series offers a class-leading 2 GS acquisition memory, which can be used for sampling at 5 GS/s down to 20 ms/div (200 ms total acquisition time). Alternatively, the memory can be divided into segments to capture thousands of waveforms in rapid succession into the waveform buffer.

A number of powerful tools allow you to make the most of this deep buffer memory. The user-friendly zoom functions allow you to zoom and reposition the display by simply dragging with the mouse or touchscreen, mask tests can run through thousands of waveforms and DeepMeasureTM can take millions of measurements on a waveform to quickly identify areas to examine.

The 3418E variant presented here has 4 channels with a bandwidth of 500 MHz with a sampling rate of up to 5GS/s, a memory depth of 2 GS and up to 14 bit vertical resolution.

You can also get the oscilloscope with a bandwidth of 350 MHz - 3417E (Article No.: PQ347)

Product features of the 3000E Series:

350 MHz or 500 MHz at 5 GS/s
10-bit resolution (14 bits when using Enhanced Resolution)
2 GS memory depth
Includes Function/Arbitrary Waveform Generator
Compact, portable and USB powered
Includes 40 Serial Protocol Decoders as standard
Segmented memory
Advanced Math, Measurements, Masks and Digital Triggering
Fully compatible with PicoScope 7
Supports LabView, MATLAB and other custom codes
5-year manufacturer's warranty and technical support

Lieferumfang

PicoScope 3000E Series Oscilloscope
TA532 USB-C to USB-C cable, 1.8 m
TA534 USB-A to USB-C cable, 0.9 m
PS017 USB-C Power Supply
Manual
