Pendulum CNT-91R | Frequency counter / timer / analyzer, 400 MHz / 50 ps, graphical, incl.Rubidium time base

Name: CNT-91R | Frequency counter / timer / analyzer, 400 MHz / 50 ps, graphical, incl.Rubidium time base
Brand: Pendulum
SKU: CNT-91R
Price: 11792.0 CHF
Availability: OutOfStock

Manufacturer number: CNT-91R

Delivery time upon request

CHF 11,792.00

plus VAT. CHF 12,747.15 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Pendulum CNT-91R | Frequency analyzer and calibrator, frequency range up to 400 MHz and 3/8/15 or 20 GHz, resolution 50 ps, speed up to 250 kSa / s, with highly stable rubidium time reference.

Number of channels: 2 (optional: channel 3)
Time base: Rubidium oscillator
Measuring range: 0.002 Hz to 400 MHz (optional CH 3: up to 3, 8, 15 or 20 GHz)
Measurement resolution: 12 digits / s (frequency), 50 ps (time, single shot), 1 mV (voltage)
Measuring speed: 250,000 Sa / s
More programmable output frequency (0.5 Hz to 50 MHz)
Continuous data transmission during the measuring process
Measurement functions / statistics: event counting (TIE), frequency, period, time, phase, voltage, duty cycle, pulse duration, rise / fall time / mean, minimum, maximum, standard deviation, allan deviation (ADEV)
Minimum pulse width: 1.6 ns
Attenuators: x1, x10
Trigger sources: internal, external (interface), manual
Interfaces: USB, GPIB
Power supply: 90 - 265 V, 45 - 440 Hz
Dimensions and weight: W 210 x H 90 x D 395 mm, 2.7 kg
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

AC input:	100 VAC - 240 VAC, 50 Hz - 400 Hz (Nom.), < 50 W
Article number:	CNT-91R
Dimensions (L x W x H) (mm):	395 x 210 x 90
Event Count (Totalize):	250.000
Input impedance:	1 MΩ parallel 20 pF or 50 Ω
Interfaces:	USB, LAN
Measurement functions:	Frequency, period, time range, phase, duty cycle, pulse duration, rise-fall time
Measurement resolution (gate time):	1,6 ns
Measuring range RF (MHz):	400
Measuring resolution:	12 digits/s
Messwertstatistik:	current measured value, minimum, maximum, standard deviation
Min. pulse width:	50 ps
Model:	CNT-91R Rubidium-Zeitreferenz
Number of channels:	2
Options/Extensions:	Optional: Kanal 3 (3 GHz, 8 GHz, 15 GHz, 20 GHz)
Sensitivity:	15 mVrms: 200 MHz / 25 mVrms: 200 MHz - 300 MHz / 35 mVrms: 300 MHz - 400 MHz
Trigger source:	Intern, Extern, Bus, Manuel
Warranty (years):	3
Weakening:	Trigger Range: x10 / x1
Weight (kg):	2.7

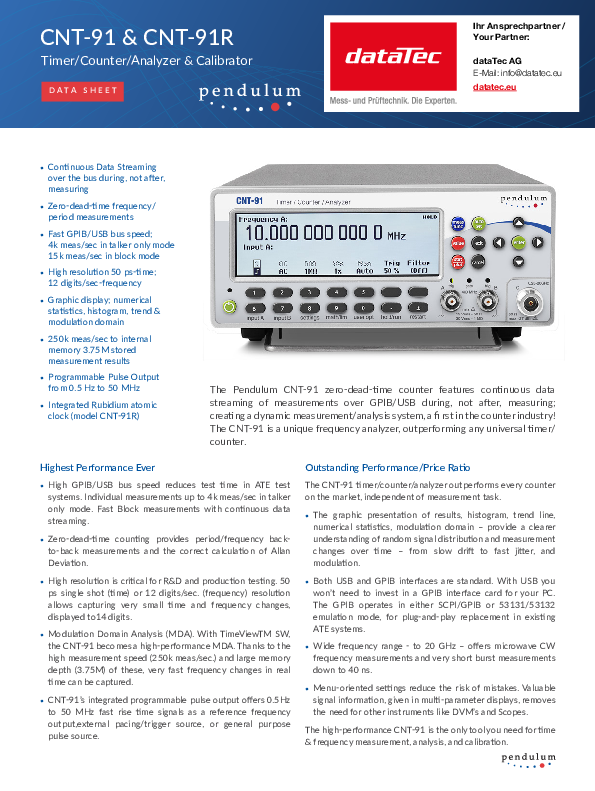

Description

CNT-91R | Frequency counter / timer / analyzer, 400 MHz / 50 ps, graphical, incl.Rubidium time base

With its outstanding functions, the frequency analyzer CNT-91R from Pendulum Instruments occupies a special position on the market. It enables continuous data transmission even during the measurement process and can thus shorten your test times. Frequency and time domain measurements are carried out without dead time, so that you can also record very fast signal changes or random events. The outstanding graphic display contributes to the optimal interpretation of your measurement results by displaying the measurement values both numerically and in the form of histograms, trend lines, etc. You receive all essential signal information without additional measuring devices such as B. a multimeter is required. The parameter setting is menu-oriented, which enables particularly controlled and simple device operation. Visual instructions will help you with the calibration.

The powerful frequency analyzer CNT-91R is also characterized by its high measuring speed and resolution. It enables up to 250,000 measurements per second. The measurement resolution for the time domain measurement is up to 50 ps. The CNT-91R displays frequency measurements with up to 12 digits. The CNT-91R's time reference is based on an integrated, highly stable rubidium oscillator. The frequency analyzer is used both as a universal high-performance counter and timer in automated test systems and as a calibrator for frequency sources.

The TimeView 3 modulation domain analyzer software extends the measurement and statistical functions of your CNT-91R. Thanks to the high measuring speed, very fast signal changes of time or frequency can be analyzed in real time, e.g. B. hopping frequencies up to 20 GHz, CW (continuous wave), Doppler pulse or chirp radar signals, digital modulations or frequency stability (Allan deviation ADEV).

High Performance Analyzer / Calibrator / Timer / Counter:

Continuous data transmission via GPIB / USB at the same time as the measuring process for a high test throughput (up to 4,000 Sa / s)
Zero dead time technology enables the correct determination of the Allan deviation (ADEV)
High resolution with 50 ps for time and 12 digits for frequency measurements enables the detection of very small frequency changes (display of up to 14 digits) for efficient use in research, development and production
Programmable output frequency for signals with a fast rise time from 0.5 Hz to 50 MHz, for use as reference output, trigger source or universal signal source
Very high accuracy thanks to the highly stable rubidium oscillator for calibration purposes
Large frequency range up to 20 GHz for all CW (continuous wave) and burst RF applications up to 40 ns
Clear display for optimal interpretation of your measurement results with histogram, trend line, numerical statistics, modulation domain

Lieferumfang

Power cord
Operating instructions (CD)
Calibration certificate
